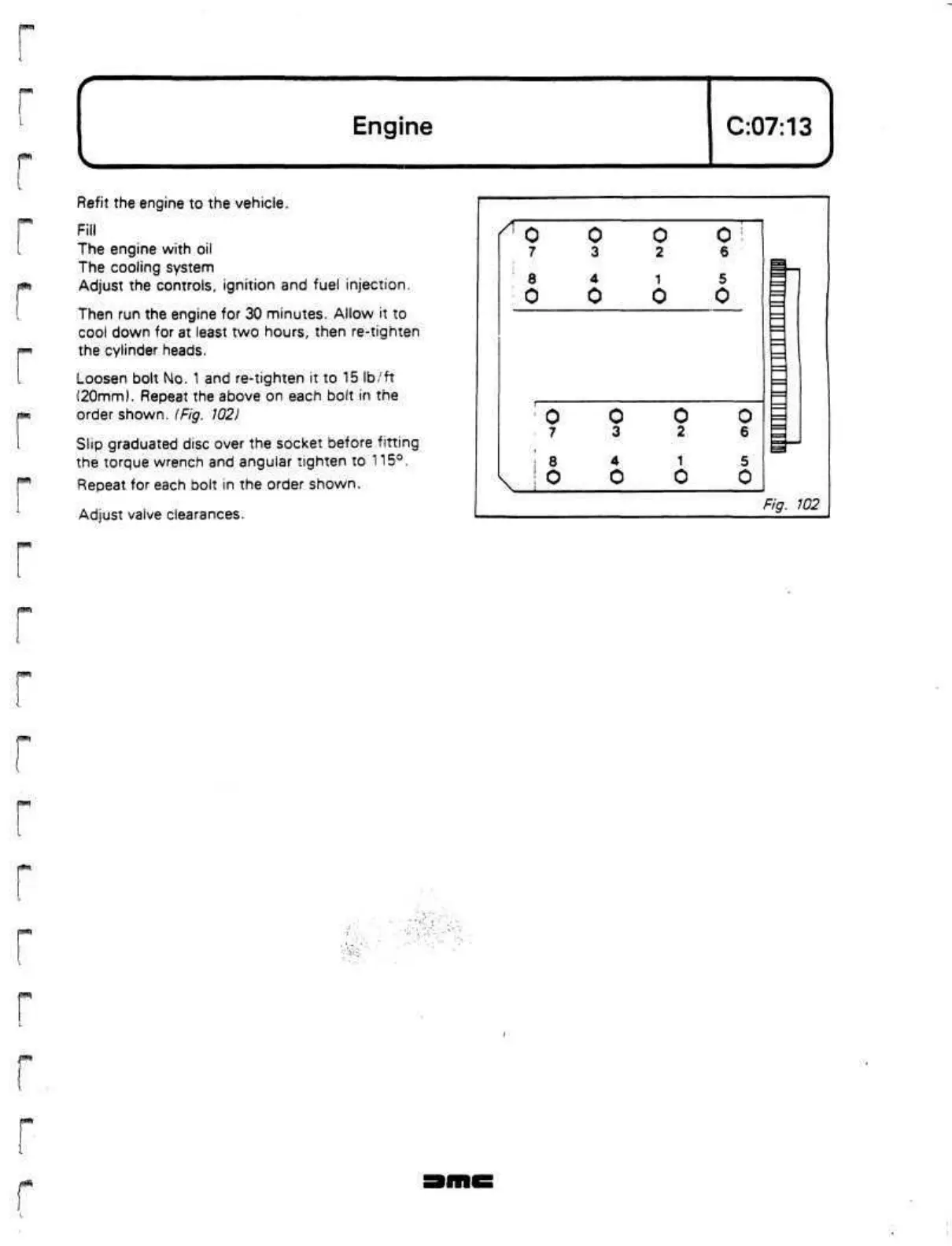

Refit the engine to the vehicle.
Fill
The engine with oil
The cooling system
Adjust the controls, ignition and fuel injection.
Then run the engine for 30 minutes. Allow it to
cool down for at least two hours, then re-tighten
the cylinder heads.
Loosen bolt No.
1
and re-tighten it to 15 lb/ft
(20mm). Repeat the above on each bolt in the
order
shown. (Fig.
102)
Slip graduated disc over the socket before fitting
the torque wrench and angular tighten to
115°.
Repeat for each bolt in the order shown.
Adjust valve clearances.
("0
7
8
0
r~
|
\ i
0
7
8
0
0
3
4
0
0
3
4
0
0
2
1
0
0
2
1
0
0 !
6
5
0
0
6
5
0
Fig. 102
