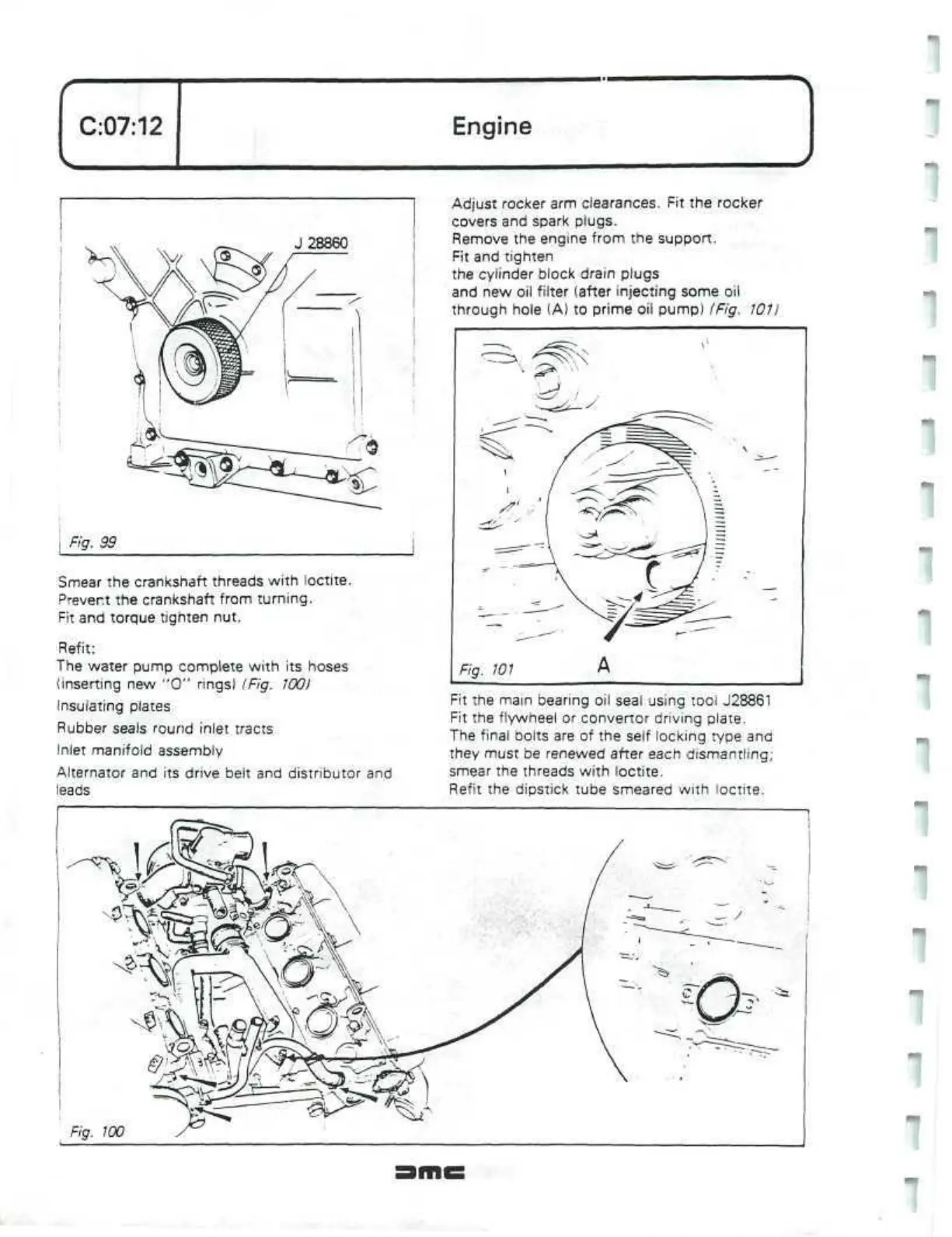

J 28860
Fig. 99
Smear the crankshaft threads with loctite.
Prevent the crankshaft from turning.
Fit and torque tighten nut.
Refit:
The water pump complete with its hoses
(inserting new "0" rings)
(Fig.
100)
Insulating plates
Rubber seals round inlet tracts
inlet manifold assembly
Alternator and its drive belt and distributor and
leads
Adjust rocker arm clearances. Fit the rocker
covers and spark plugs.
Remove the engine from the support.
Fit and tighten
the cylinder block drain plugs
and new oil filter (after injecting some oil
through hole (A) to prime
oil
pump) (Fig. 101)
Fit the
main
bearing oil seal using tool J28861
Fit the flywheel or
convenor
driving plate.
The final bolts are of the self locking type
ana
they must be renewed after each dismantling;
smear the threads with loctite.
Refit the dipstick tube smeared
with
loctite.
