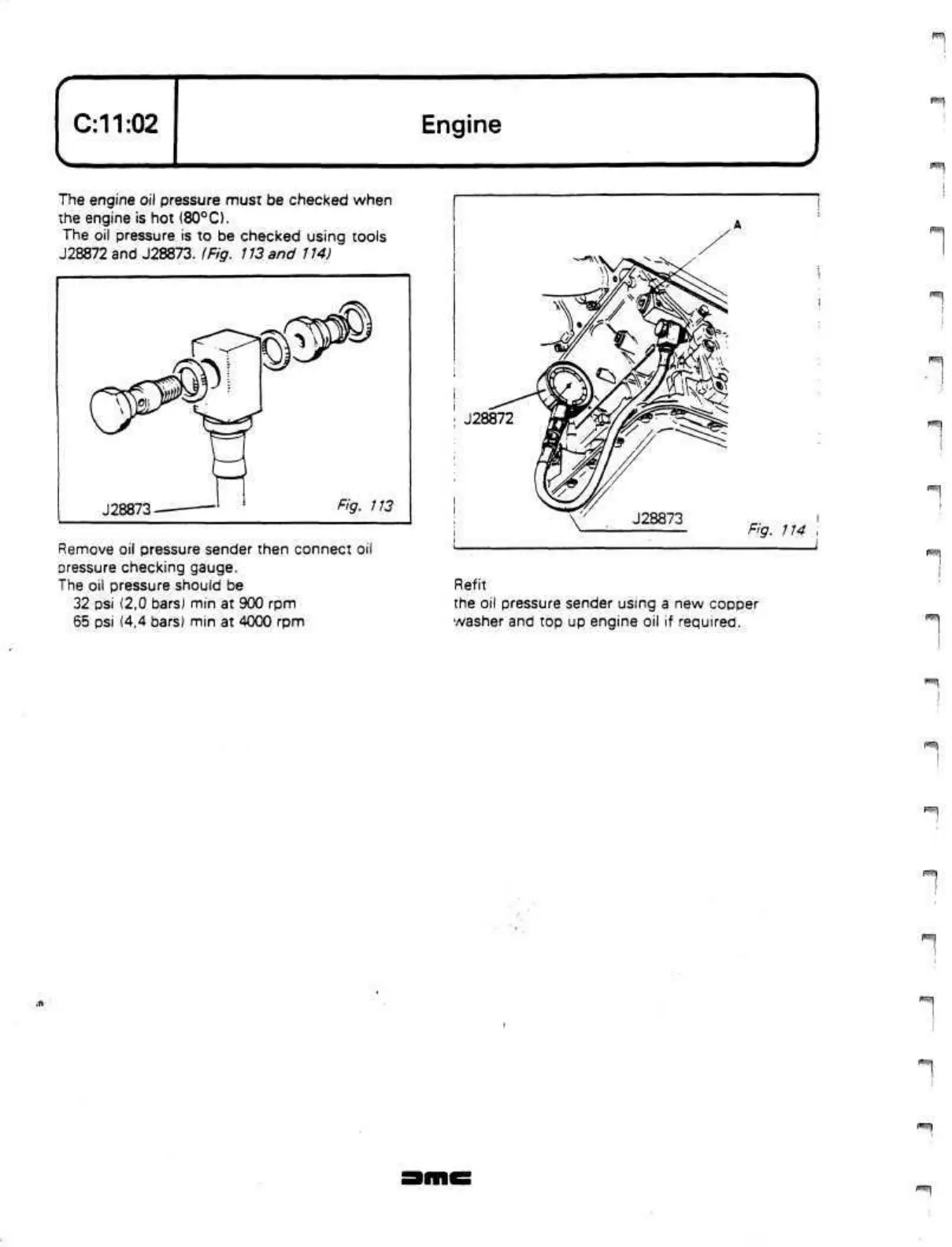

The engine oil pressure must be checked when
the engine is hot
(80°C).
The oil pressure is to be checked using tools
J28872and
J28873. (Fig.
113
and 114)
Remove oil pressure sender then connect oil
pressure checking gauge.
The oil pressure should be
32 psi (2,0 bars)
min
at 900
rpm
65 psi (4,4 bars) min at 4000 rpm
J28872
~-*nv
Fig.
114
',
Refit
the oil pressure sender using a new copper
washer and top up engine oil if required.
