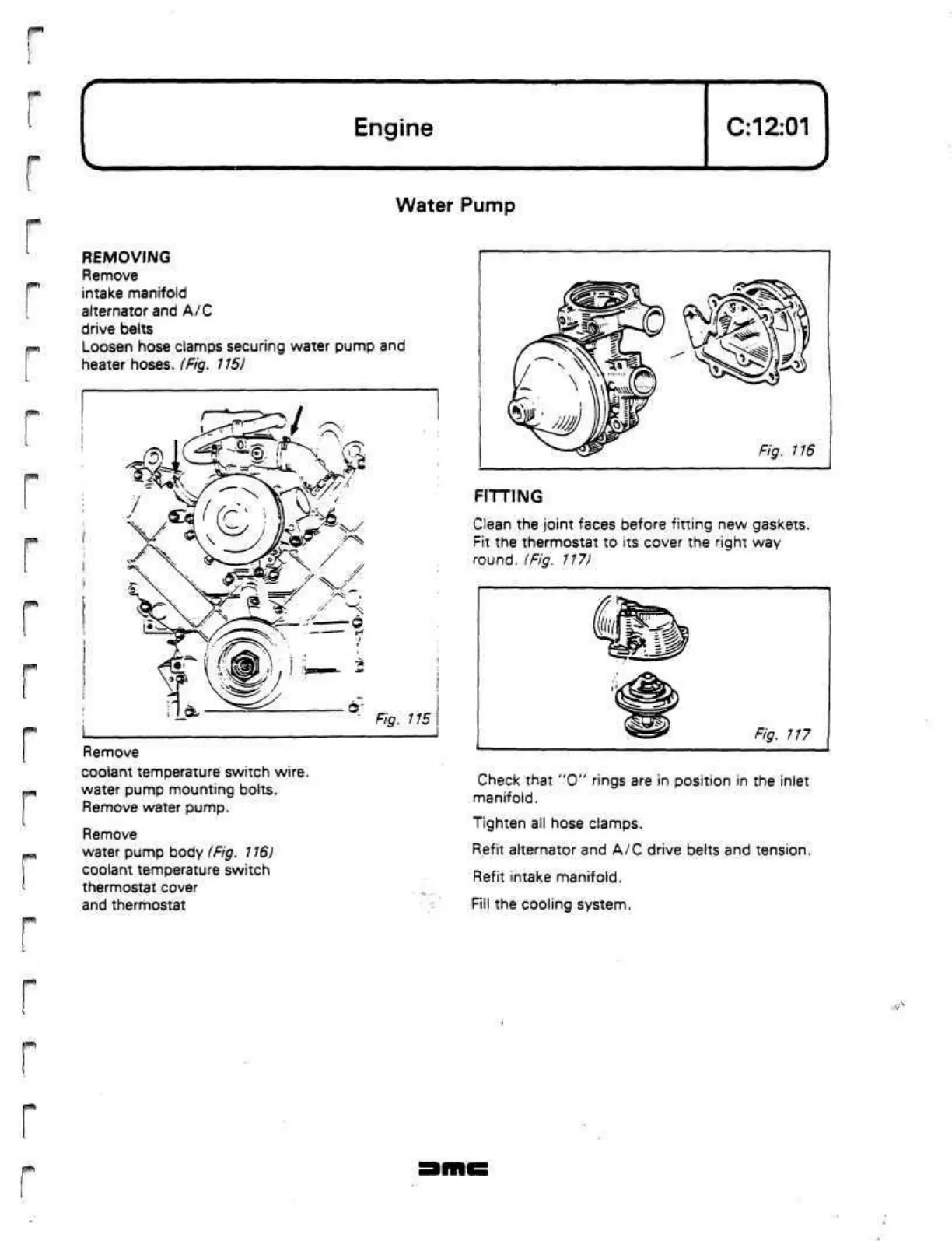

Water Pump
is*l
£T--
?
>'I
I'-TVN)
1^1
•
:
ff^
REMOVING
Remove
intake manifold
alternator and A/C
drive belts
Loosen hose clamps securing water pump and
heater hoses. (Fig.
115)
Fig. 115
Remove
coolant temperature switch
wire,
water pump mounting bolts.
Remove water pump.
Remove
water pump body (Fig.
116)
coolant temperature switch
thermostat cover
and thermostat
FITTING
Clean the joint faces before fitting new gaskets.
Fit the thermostat to its cover the right way
round.
(Fig.
117)
Check that "0" rings are in position in the inlet
manifold.
Tighten all hose clamps.
Refit alternator and A/C drive belts and tension.
Refit intake manifold.
Fill the cooling system.
