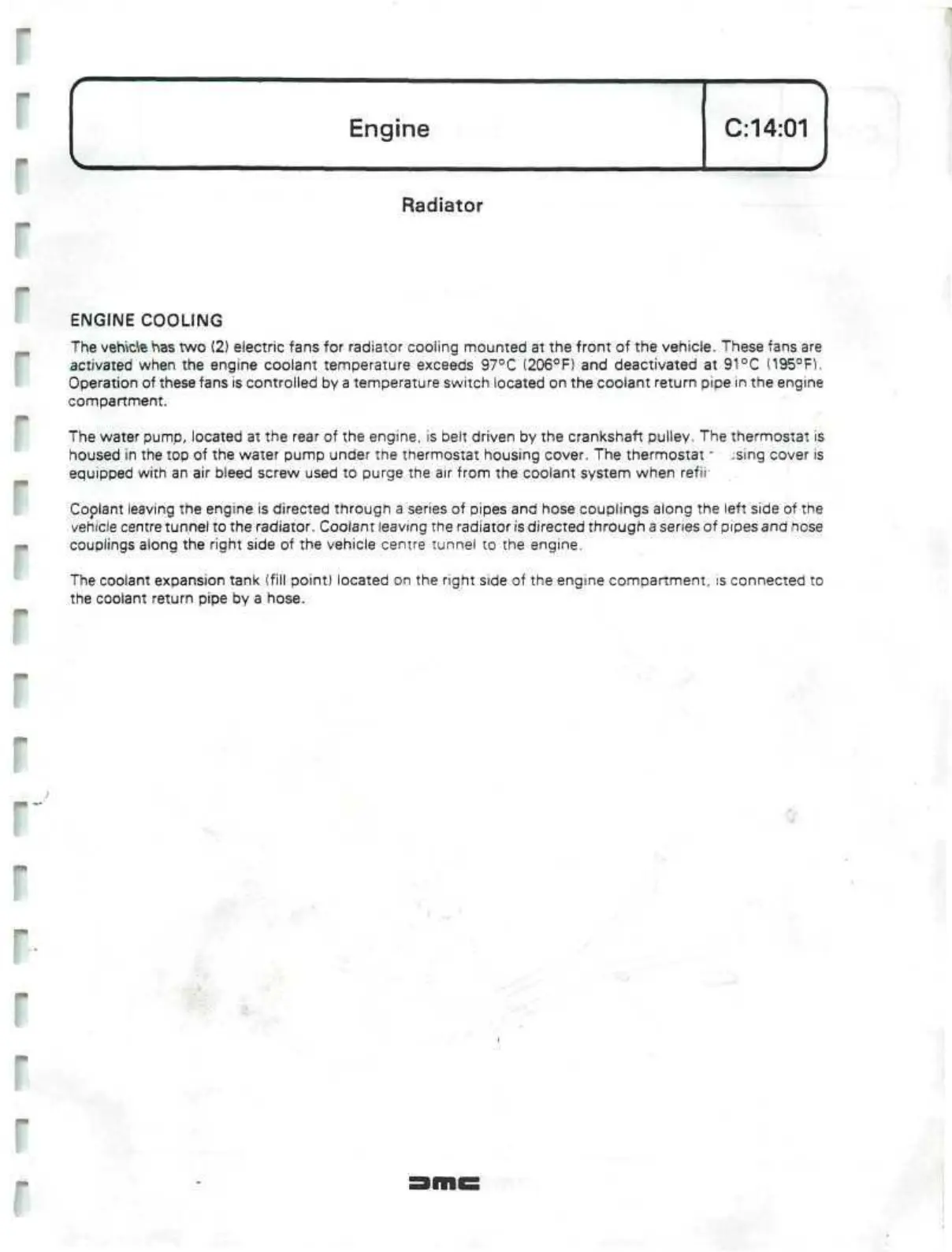

Radiator
ENGINE COOLING
The
veh'\cte
has two (2) electric fans for radiator cooling mounted at the front of the vehicle. These fans are
activated when the engine coolant temperature exceeds
97°C
(206°F) and deactivated at
91
°C
(195°R.
Operation of these fans is controlled by
a
temperature switch located on the coolant return pipe in the engine
compartment.
The water pump, located at the rear of the engine, is belt driven by the crankshaft pulley. The thermostat is
housed in the top of the water pump under the thermostat housing cover. The thermostat
- .sing
cover is
equipped with an air bleed screw used to purge the
air
from the coolant system when refir
Coolant leaving the engine is directed through a series of pipes and hose couplings along the left side of the
vehicle centre tunnel
to
the radiator. Coolant leaving the radiator is directed through
a
series of pipes and hose
couplings along the right side of the vehicle centre tunnel to the engine.
The coolant expansion tank (fill point) located on the right side of the engine compartment,
is
connected to
the coolant return pipe by a hose.
