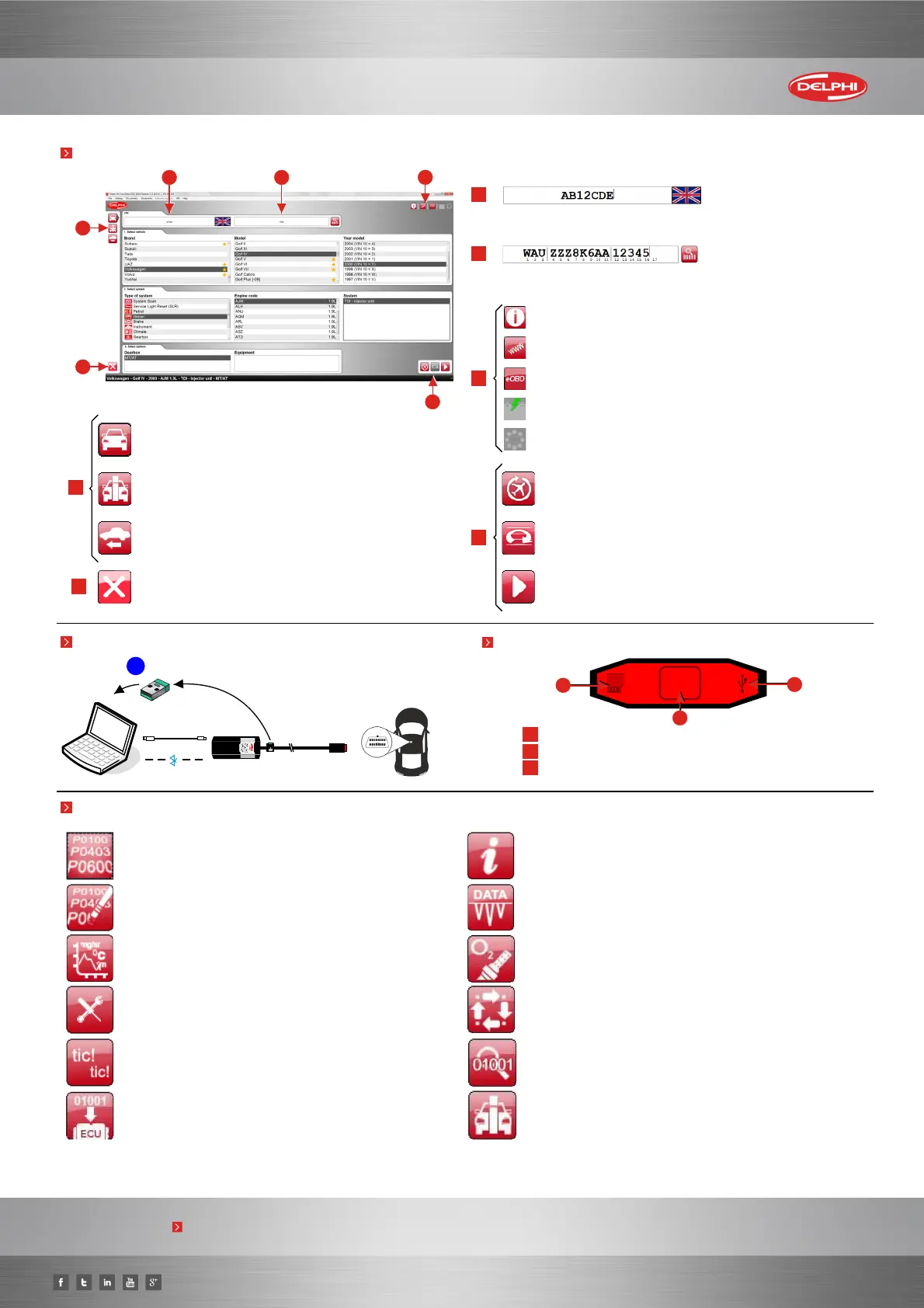

or
MicroSD slot for Flight Recorder
Flight recorder Trigger button
USB Port
Vehicle Technical Information
Generic EOBD Scantool
Vehicle battery voltage level indicator
Activity Indicator
Software main menu
Connection to vehicle
REC
2
1
2
3
Diagnostic functions
DTC reading (Diagnostic Trouble Codes)
DTC clearing (Diagnostic Trouble Codes)
Real-Time Data
Adjustements
Component Activation
Gives access to DTC stored in the selected ECU and associated freeze frame data when available.
Sends a DTC clearing request to the selected ECU.
Give access to ECU ajustements such as injector coding, adaptation reset, pedal calibration, service
reset, actuator relearning etc.
Instructions are provided to guide the user in the use of the function.
Allows dynamic reading of ECU parameters, with the ability to select the parameters to be viewed
simultaneously, in either instantaneous or graphical way.
Forces ECU to test its funtionality
ECU Coding
Allows to configure and code ECU for functions such as Tyre size configuration, key programming,
VIN programming etc.)
Informations (EOBD)
Displays general information about the vehicle (communication protocol, available control units, number
of DTC, MIL Status etc.)
Freeze Frame Data (EOBD)
Displays to EOBD Freeze Frame (EOBD function only)
Oxygen Sensor tests result (EOBD)
Displays the Oxygen sensor(s) tests result
Non-continous tests result (EOBD)
Displays the EOBD Non-continuous tests result
Diagnostic check (EOBD)
Displays the EOBD tests result
Vehicle information (EOBD)
Displays vehicle identification numbers - Vehicle Identification Number (VIN), Calibration Identification
Number (CIN) and Calibration Verification Number (CVN)
Website links
Flight Recorder
ISS (Intelligent System Scan)
Diagnostic
This functions records the selected parameters while driving the vehicle. Once the FR session is
configure press, the REC button at the rear of the VCI to start recording
This function scans all ECU fitted on the vehicle and reports found Diagnostic Trouble Codes.
Select « System Scan » in « Type of System » list to enable this button.
Access to all Diagnostic functions supported by the selected ECU
VRM lookup
Type the VRM of the vehicle and press « Enter » Key to lookup the vehicle. (Available in
United Kingdom only).
VIN lookup
Type the VIN or click on the button to retrieve the VIN from the vehicle (the VCI must be
connected to the vehicle and the VCI must be setup in the hardware settings)
F
E
DC
A
B
C
D
A
B
Classic view
Information/Tree structure
History
Simple selection by make, model, year and system
Selection by make, model, year and system with functions breakdown and information on
diagnostic socket and engine code location
Shows the history of the last diagnosed vehicles for quick selection
Quit Program
E
F
Rear VCI view
Locate the USB dongle on the VCI lead and plug it to a USB port of the
computer.
!
VCI
(maintenance schedule, Adjustement data, repair information, etc. Only available when online.)
1
3
