Delphi MICRO 64 User Manual

Connection Systems
Delphi Connections Systems Page 4 of 11 01/02/2001
Note: Assembly Instructions are provided for reference only, and are intended for use by skilled assembly technicians.
Personal injury, failure of the system to work as intended, and damage to the product may result from failure to follow the
assembly and disassembly techniques and/or use of tools other than those described. Always follow Assembly
Instructions thoroughly, and please contact Delphi Connection Systems for further assistance.

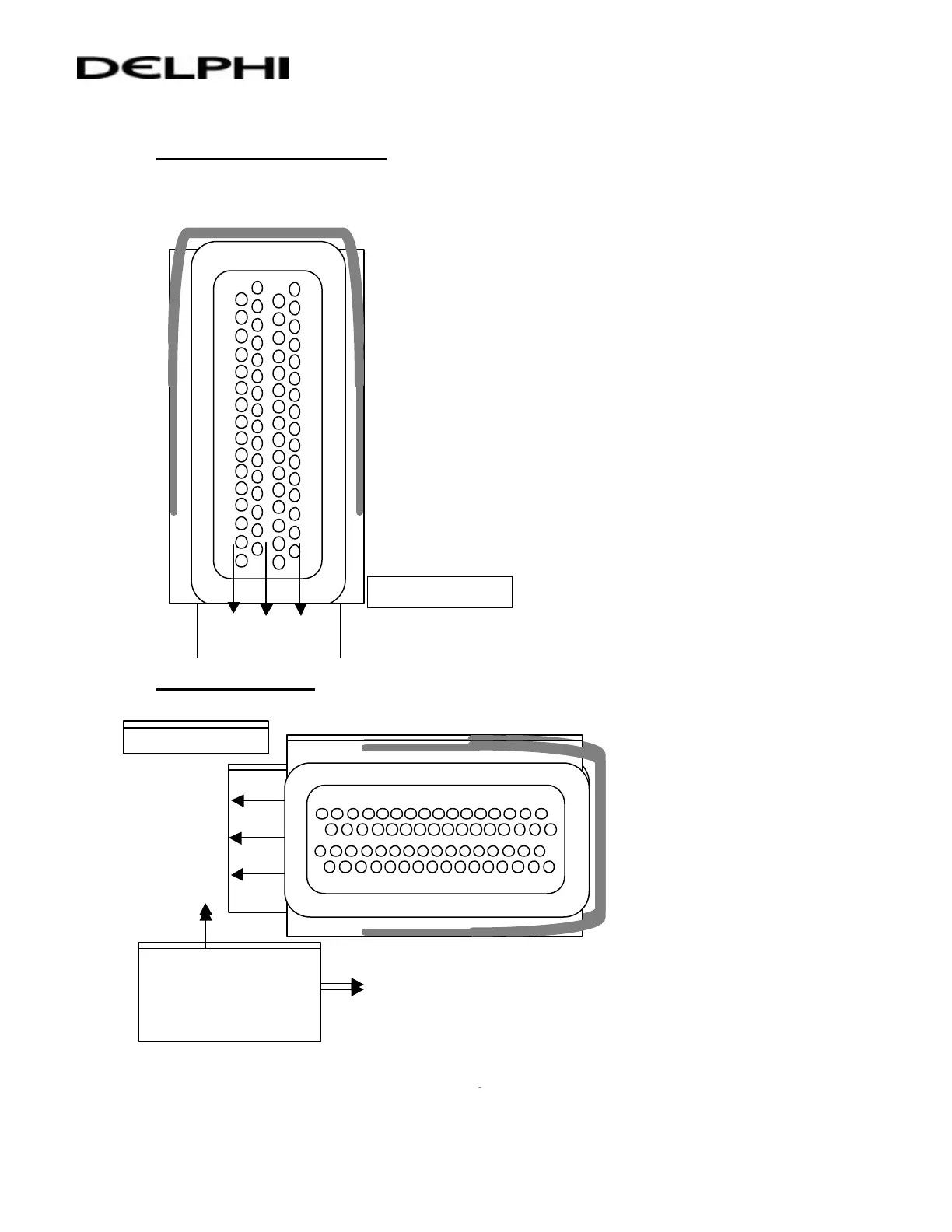

RECOMMENDED PLUGGING SEQUENCE
Plugging should be from right to left and from
bottom to top, for best visibility, access in
plugging.
64 48 32 16
49 33 17 1
WIRE DRESS
Connect
or Holder Vertical
PLUG
DIRECTION:
LEFT TO RIGHT,
BOTTOM TO TOP.
Plugging should be from left to right and from bottom
to top, for best visibility, access in plugging.
WIRE DRESS
49
33
17
1
64
48
32
16
Connector Holder
Horizontal
PLUG
DIRECTION:
LEFT TO RIGHT,
BOTTOM TO TOP.
Plugging should be from left to right and from bottom
to top, for best visibility, access in plugging.
WIRE DRESS
49
33
17
1
64
48
32
16
Connector Holder
Horizontal
