21
Section 5
adhere to the vehicle’s surface. Make sure you accurately place the pad
on the first try since in many cases it will bond almost immediately. 3M
recommends a 72-hour curing time for maximum adhesion.
3. Clip the Roady2 onto the swivel or vent
mount (figure 7).
4. Reassemble the system as in step 1,
inserting cassette audio adaptor
into the vehicle’s cassette deck and the
12V power adaptor into the cigarette lighter.
5. Attach the antenna as explained on page 22
and route the antenna cable as described
on page 24.
Removing swivel mount from your
dashboard
You can remove the swivel mount from your dashboard by taking the
following steps:
1. Lift one edge of the adhesive pad gently with fingers or the rounded edge
of a spoon. Once enough of the edge is loosened to grip with your fingers,
pull the pad gently from the mounting surface at a 90-degree angle. Avoid
using sharp tools that could damage the vehicle’s interior.
2. If the pad fails to loosen, first warm it with a hair dryer for 2 to 3 minutes
to soften the adhesive. Be careful not to apply too much heat, which could
damage the mounting surface.
3. If any adhesive remains on the dashboard surface, the adhesive can easily
be removed by rubbing your thumb or
finger across it.
4. As necessary, use a mild household cleaner
to clean the dashboard surface.
Caution: Never use a commercial heat
gun or paint-stripping gun. This could result in
damage to the unit or to your vehicle.
To vehicle
dashboard

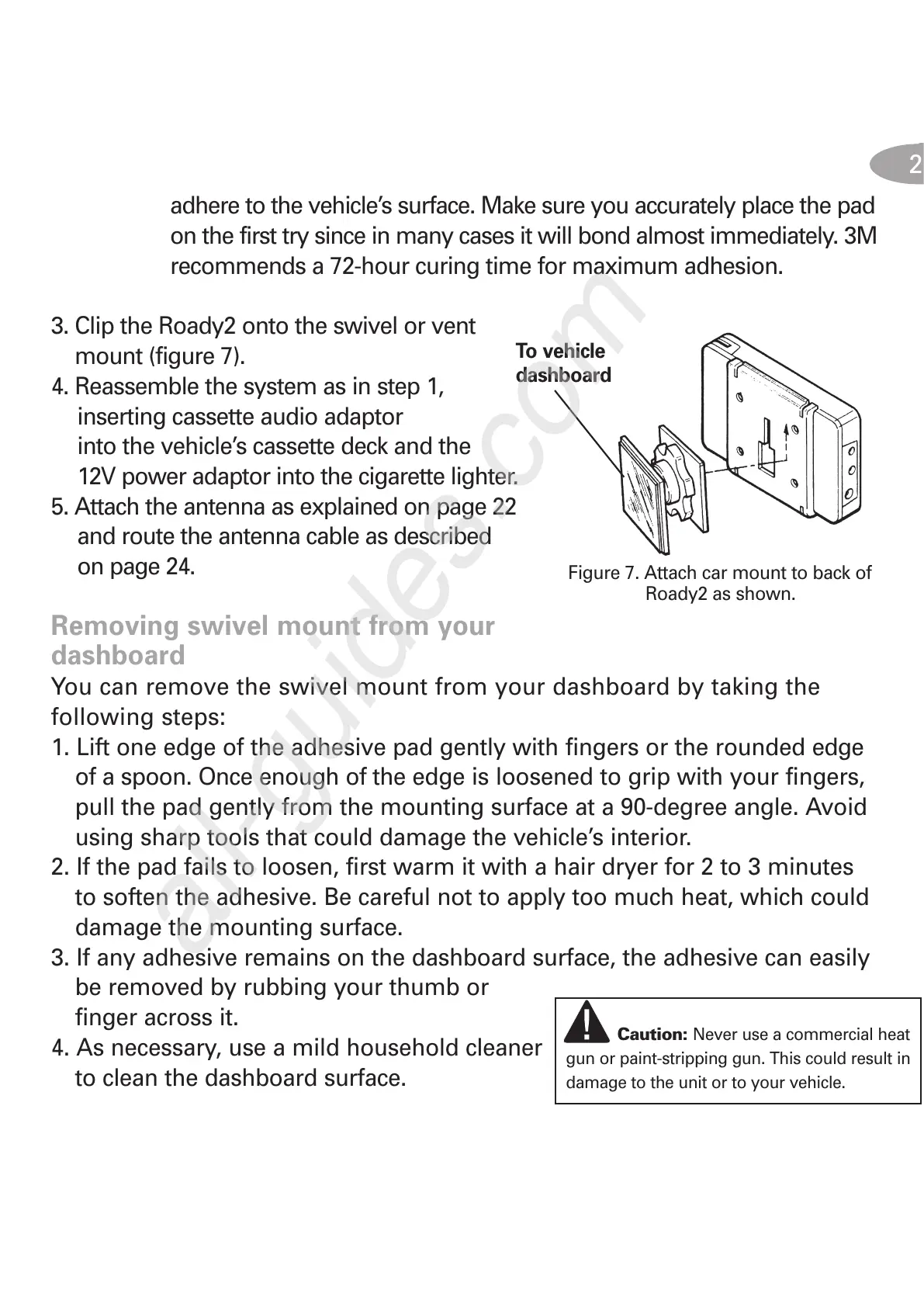

Figure 7. Attach car mount to back of
Roady2 as shown.
