• For antenna mounting locations at the rear of the roof, the antenna cable
can be routed into the vehicle through the trunk, as shown in
figure 10. Always route the cable under the weather seal near the lowest
part of the trunk to help reduce possible water leaks.
• Use pre-existing wiring channels created by the vehicle manufacturer
whenever possible.
Final installation
Verify that the antenna is in its final desired position. The antenna
contains a powerful magnet that will secure the antenna to a metal roof
under normal driving conditions.

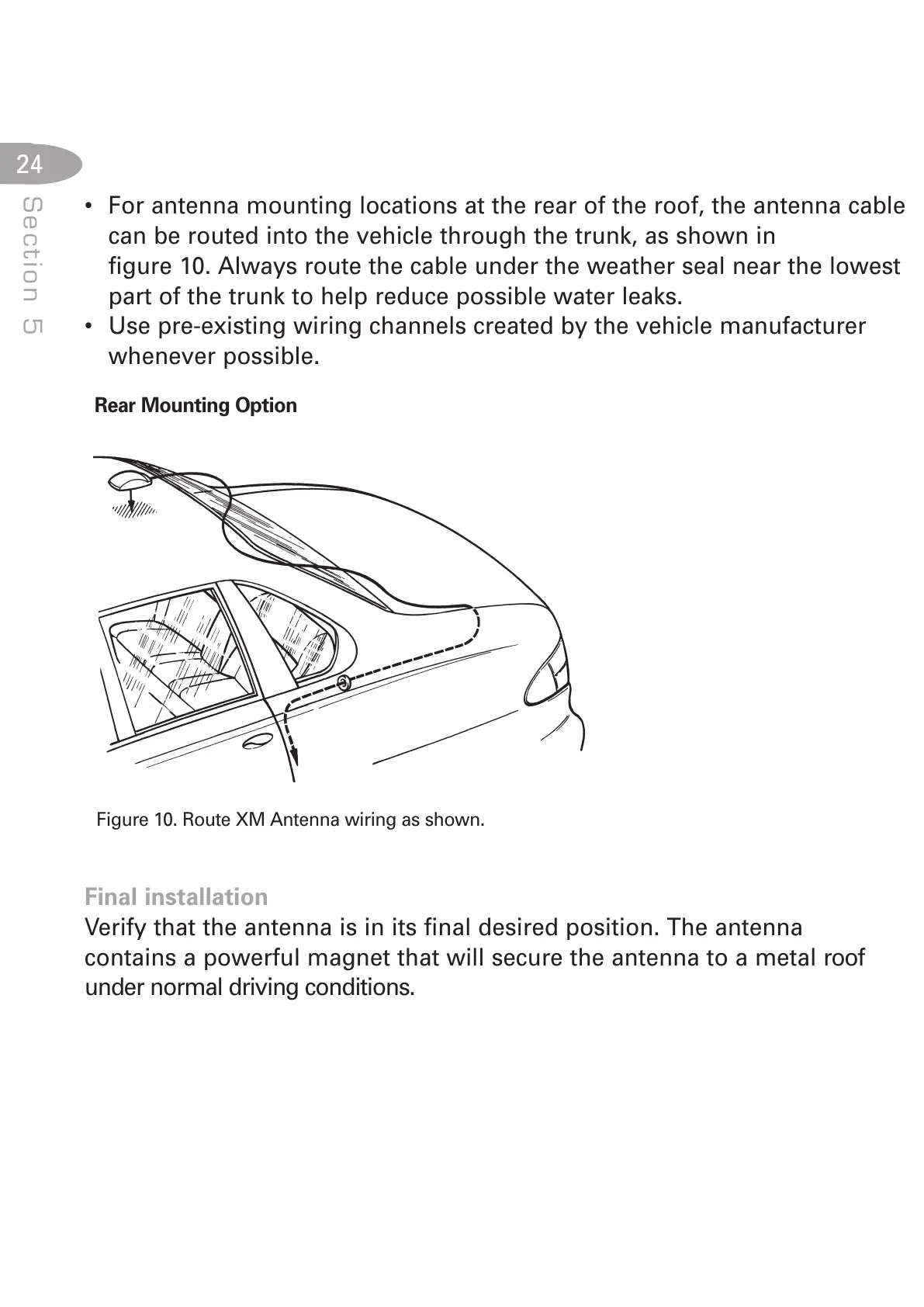

Figure 10. Route XM Antenna wiring as shown.
Rear Mounting Option
