Delphi Skyfi 2 User Manual

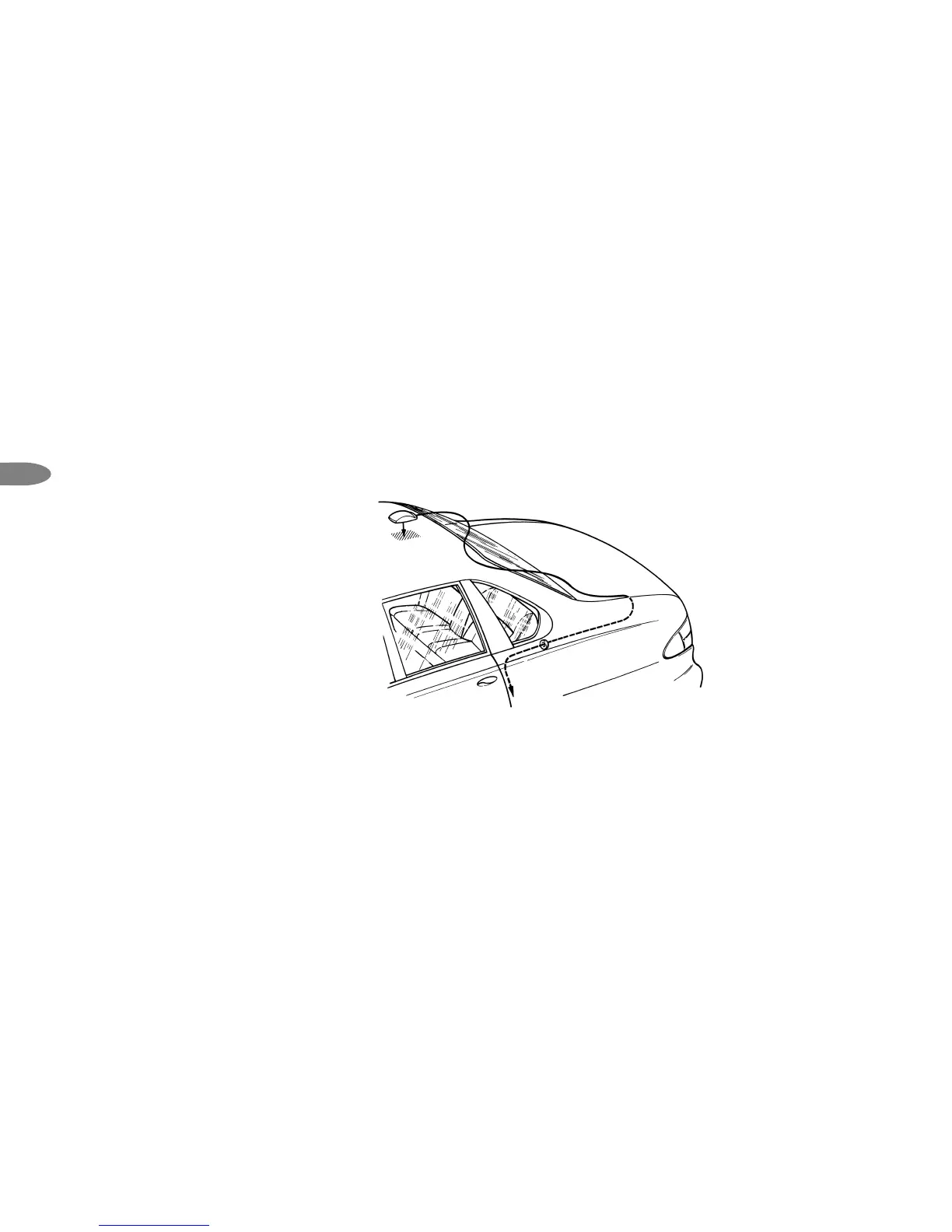

Figure 7. Route XM Antenna wiring as shown.
Rear Mounting Option
14
If the antenna cable does not fit easi-
ly through the grommet, do not try to
force it through; instead, route the
cable under the weather seal near the
bottom of the door.
• For antennas mounted at the rear of
the roof, route the cable into the
trunk as shown in figure 7. Always
use the weather seal at the lowest
part of the trunk to reduce water
leaks.
• Use pre-existing wiring channels
when possible.

Delphi Skyfi 2 Specifications

General

Brand	Delphi
Model	Skyfi 2
Category	Car Receiver
Language	English
