Delphi TNR800 Owner's Manual

5
For 2003-2006 Denali and Escalade EXT & ESV & ASP Conversion

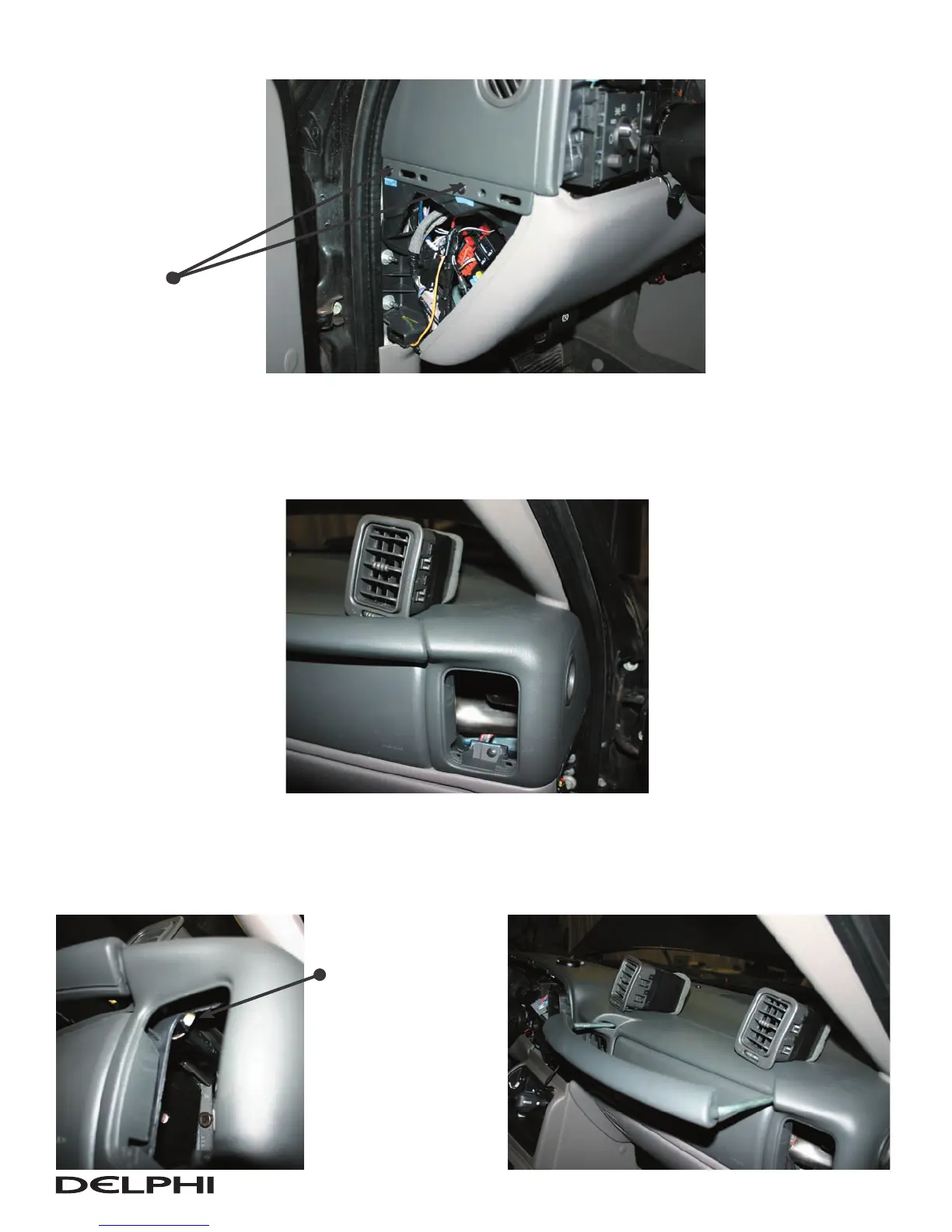

Remove the fuse box trim from both sides of the dash.
With a flat screwdriver or flat tool, pry out both A/C vents on the passenger’s side of the dash.
Be careful not to scratch the dash trim or break the vent bezels with the prying tool.
You may want to wrap the tool in cloth to prevent damage to the dash parts.
Remove the Passenger Assist Handle.
Reach inside the A/C vent holes and and press the release tabs on both sides of the
handle.
Pull the handle away from the dash to remove the handle.
8.
9.
•
•
10.
•
•
2 Screws
Release
Tab
