Delphi TNR800 Owner's Manual

6
For 2003-2006 Denali and Escalade EXT & ESV & ASP Conversion

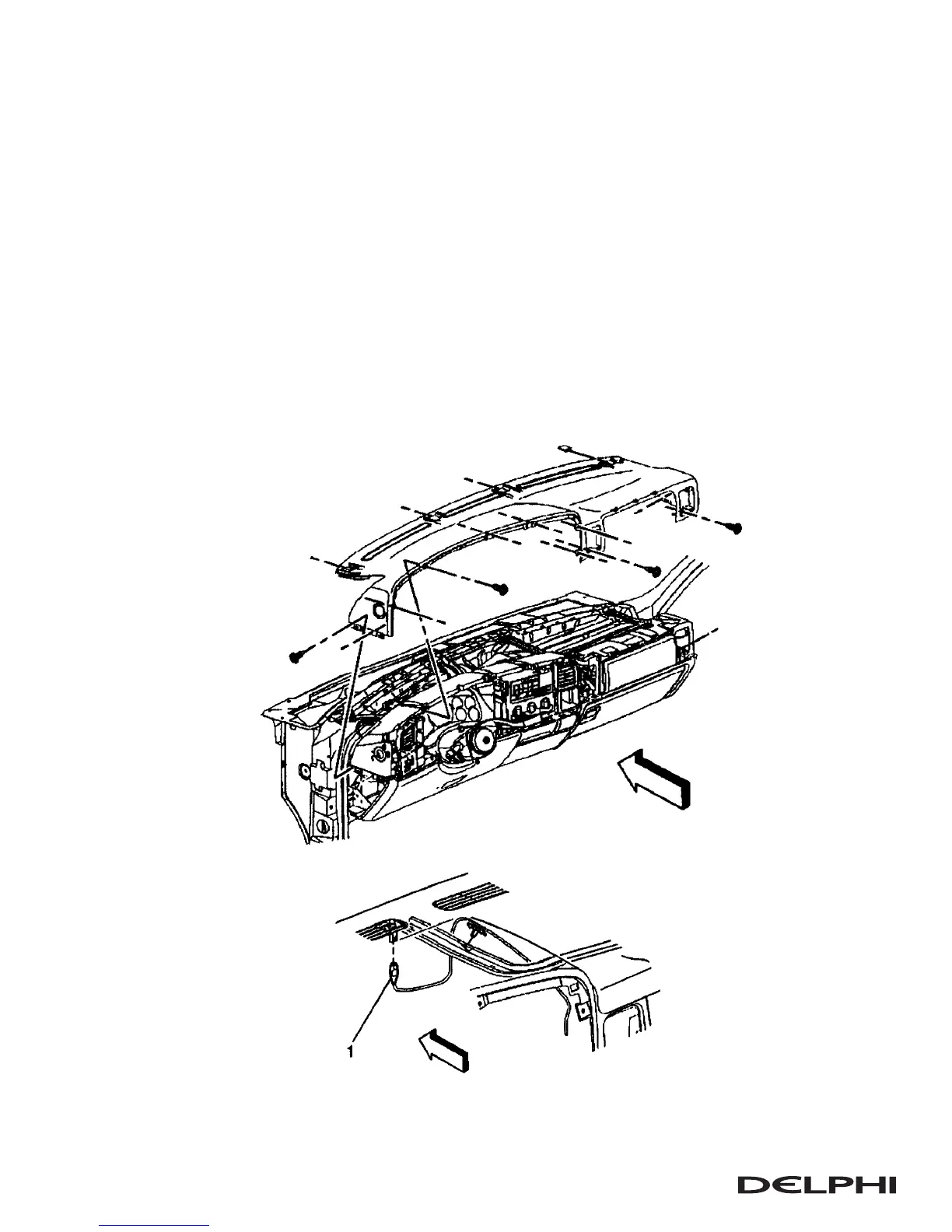

Remove the Top Dash Trim.
Remove two screws from each side of the dash.
Remove two screws from the passenger A/C vent location.
Remove remaining screws from the front of the dash trim.
Release the clips from each side of the dash by pulling out slightly.
Pull out on the dash trim above the passenger’s airbag (there are three clips in this location
that must be released before the trim can be removed).
Lift up the dash trim to disconnect the ambient light sensor.
NOTICE: When lifting up on the dash trim, be careful of the ambient light sensor wiring. There is not
much slack in the wiring and it could be torn from the sensor very easily.
Twist the ambient light housing (1/4 twist) to release the sensor from the dash pad.
This must be done before bringing the pad forward to remove.
11.
•
•
•
•
•
•
•

Delphi TNR800 Specifications

General

Brand	Delphi
Model	TNR800
Category	Car Navigation system
Language	English
