Delphi TNR800 Owner's Manual

7
For 2003-2006 Denali and Escalade EXT & ESV & ASP Conversion
INSTALLATION

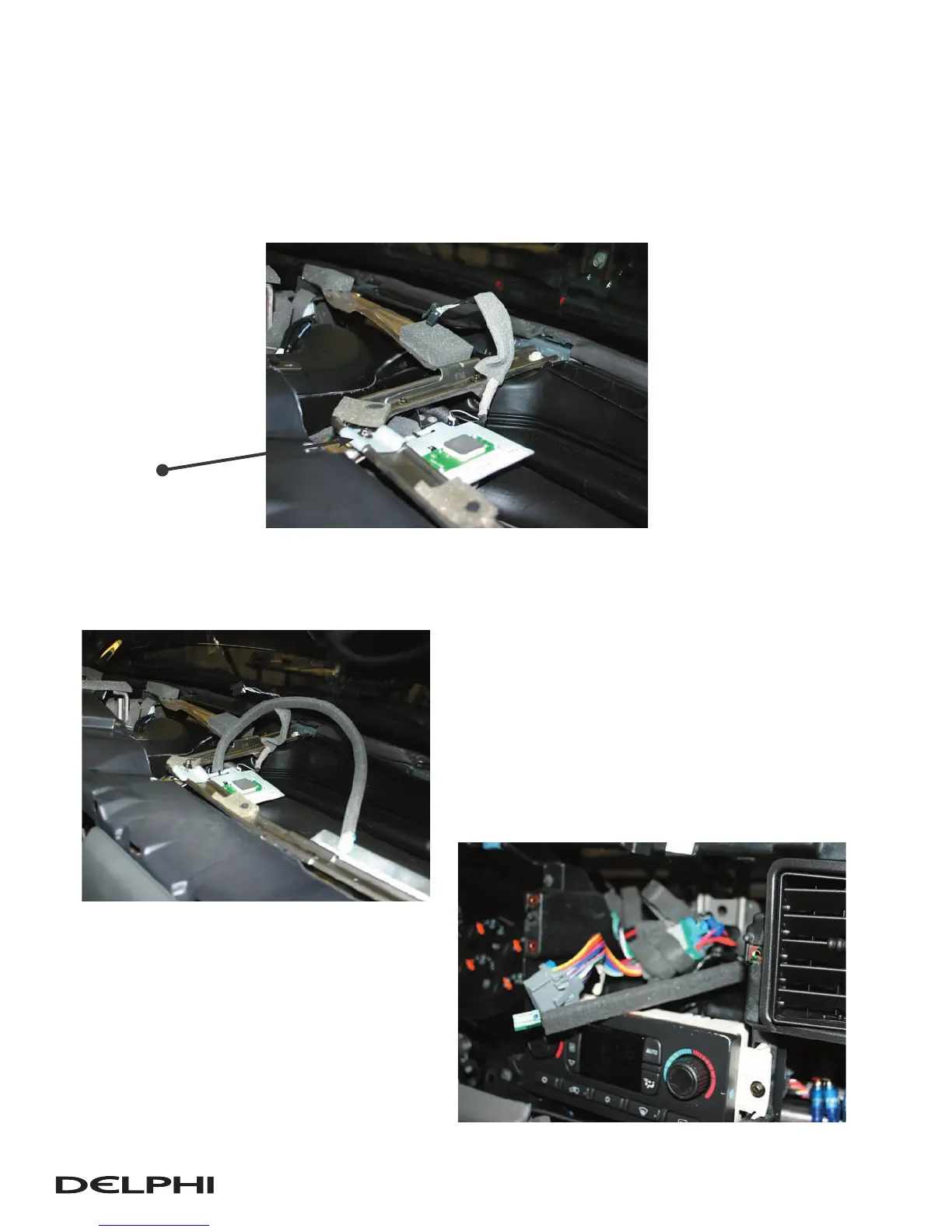

Install GPS Antenna.
Locate the screw slightly forward and to the right (passenger side) of the radio housing
area.
Remove the screw from the dash metal support.
Install GPS antenna and install the screw.
Route GPS antenna wiring under A/C pipe and to the radio area.
12.
•
•
•
13.
Screw
