8
For 2003-2006 Denali and Escalade EXT & ESV & ASP Conversion

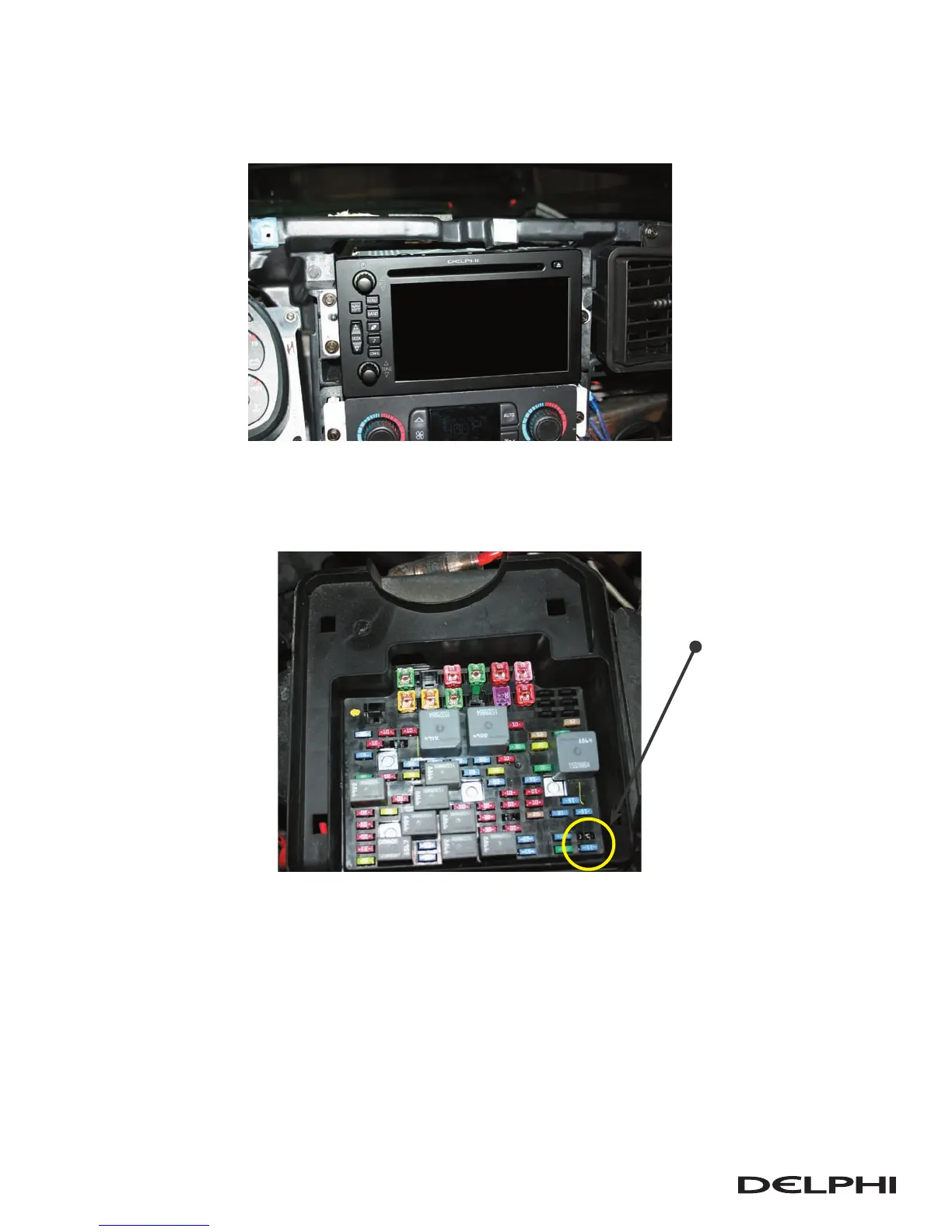

Install new Navigation Radio.
Connect radio connectors, GPS antenna, radio antenna and XM/DVD connector (if
equipped).
Install three screws.
Connect Battery Negative Cable.
Install 30A fuse in under-hood fuse box.
Test Radio.
Make sure parking brake is set.
Start vehicle.
Turn radio On.
Load DVD Navigation Disc.
Once disc checking is complete, press the “NAV” button if the navigation screen doesn’t
appear automatically. Make sure the vehicle is in position in an open, outside area so the
GPS antenna can link up to the satellites.
If the radio stations work and the navigation screen loads correctly, turn the radio Off, turn
the vehicle Off, and proceed to the next step.
If the radio isn’t working correctly, check all radio plugs in rear, as well as amp connections
and fuse.
14.
•
•
15.
16.
17.
•
•
•
•
•
•
•
Radio/Amp
Fuse
To Next Page
