Chapter 3 Creating and Editing Programs|DOP-EXIO Series
3-8
Revision March, 2008, Doc. Name: 2007PDD23000014
*Footnote 1: Input Basic Instruction

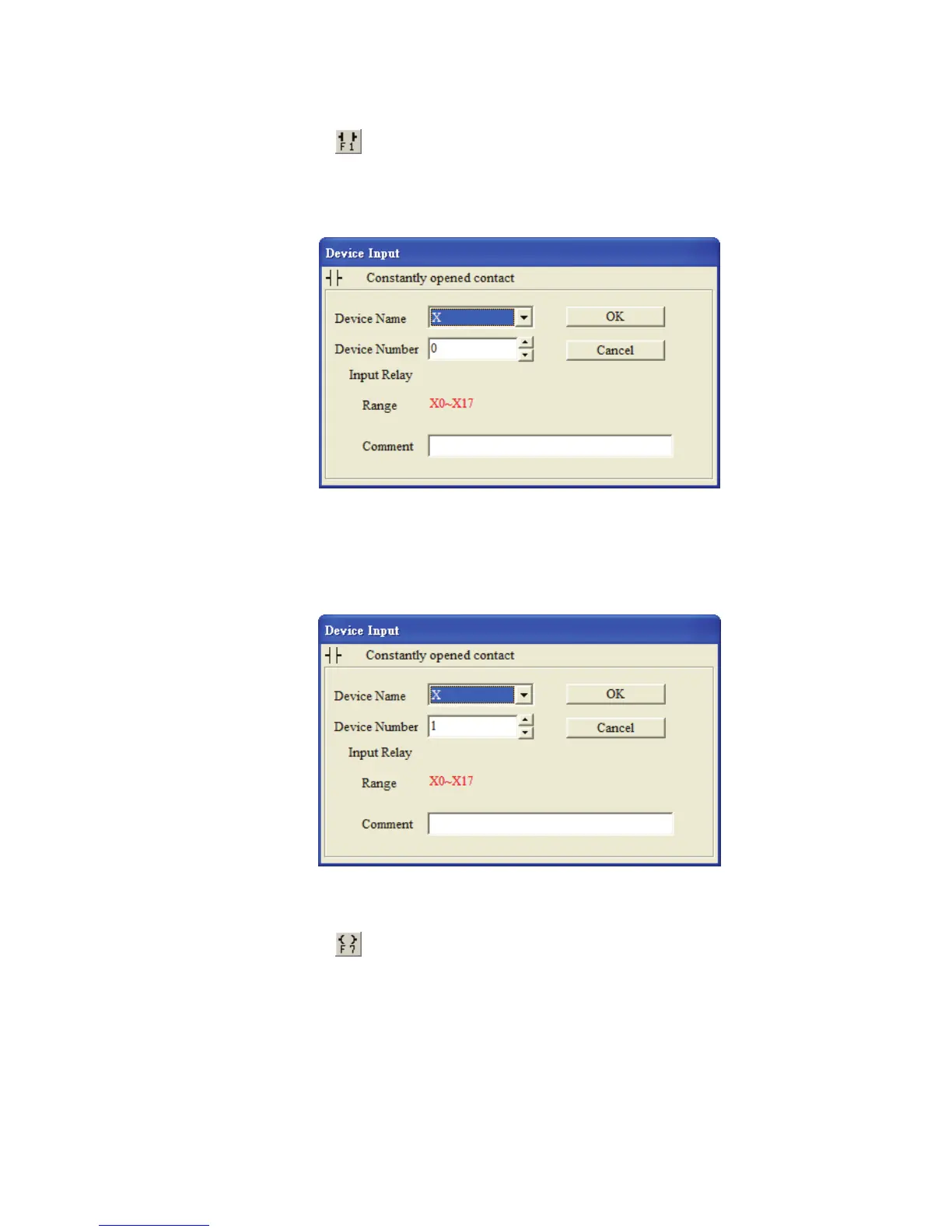

1. Click the icon on the toolbar or press the F1 function key on the keyboard
and the “Device input” dialog box will appear. Then, the user can enter device
name, device number, and edit comments in this dialog box.
2. For example, select the device name “X” and device number “1” from the
drop-down menu or type in the device name “X” and device number “1” by using
the keyboard. Then, press Enter key on the keyboard or click the “OK” button to
save the settings.
*Footnote 2: Input Output Coil
1. Click the icon on the toolbar or press the F7 function key on the keyboard
and the “Device input” dialog box will appear. Then, the user can enter device
name, device number, and edit comments in this dialog box.
To Next Page
