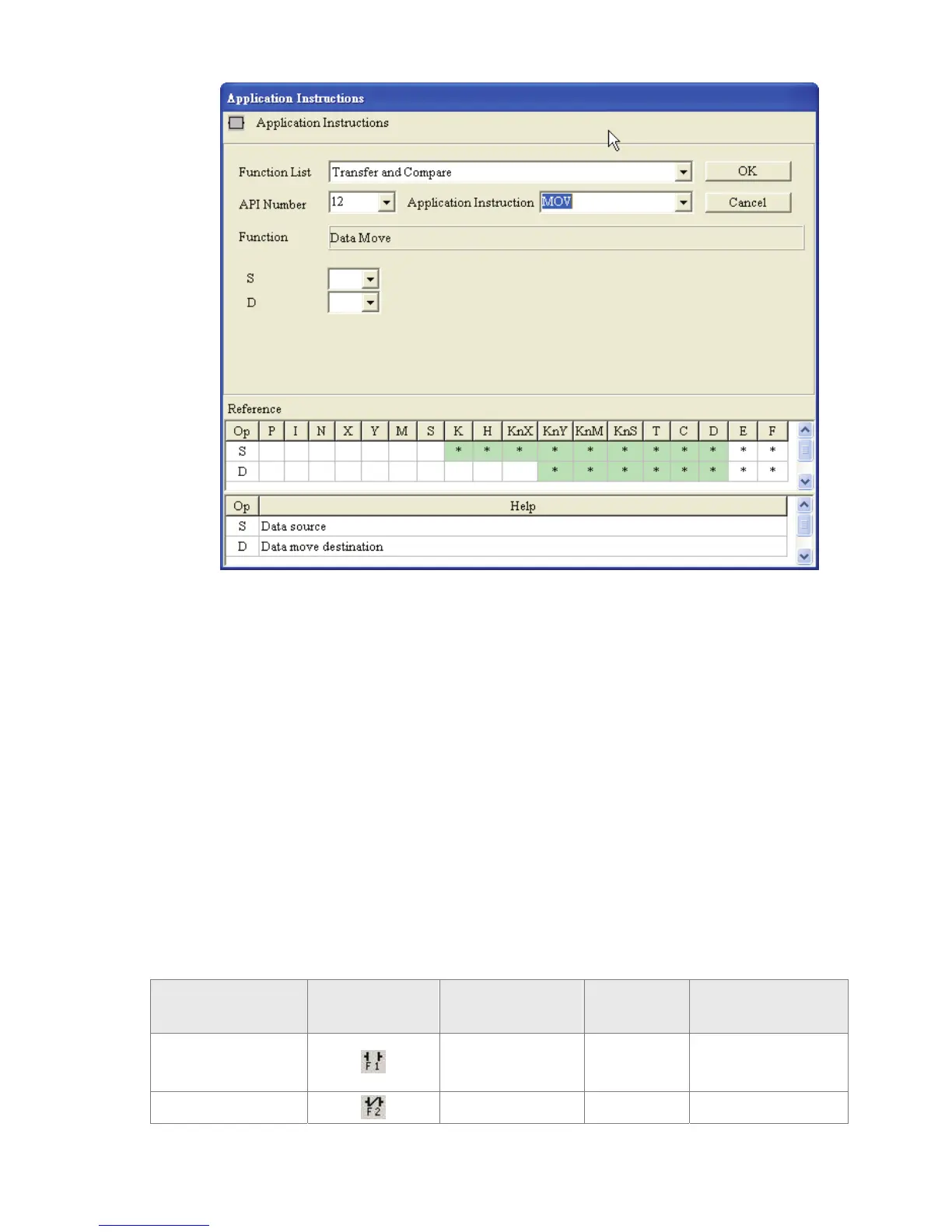

4. Input device name in the field of “S” (Operand 1) and “D” (Operand 2), and input
device number in the field of “Device Number” in order. Select index register E or
F if it exists. Then, press the “OK” button to save the settings.
5. The user can also double click the mouse on the “@” or “*” symbol in the device
reference table (refer to the figure above) to designate the device name (The
symbol @ indicates this device can be modified by index register E or F and the
symbol * indicates this device can not be modified by index register E or F).
3.3 Ladder Diagram Editing Explanation
)
Keyboard Entry
HMI-WPLSoft provides several brevity codes for the user to input Instructions more quickly
and conveniently when editing a ladder diagram. Please refer to the following table.
Explanation Instruction Icon
Instruction Code
(Mnemonic Code)
Brevity Code Example
Normally open
contact
LD A LD M0 or A M0
Normally closed
LDI B LDI M0 or B M0
