Appendix D Use of Application Instructions

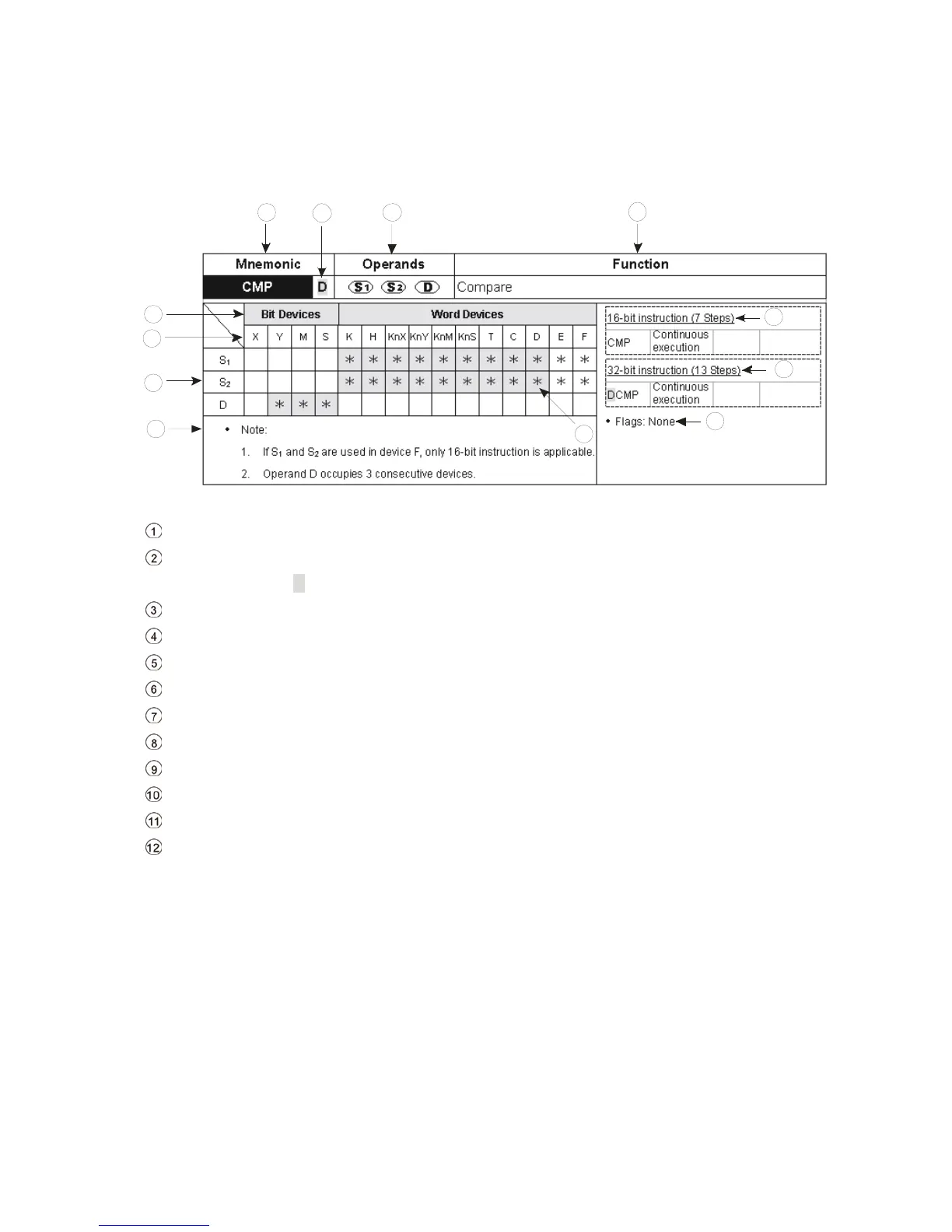

Format of an application instruction:
1
12
11
10
9
3
4
5
6
7
8
2
Mnemonic of an application instruction.
Indication of if there is a 16-bit or 32-bit instruction. If there is a 32-bit instruction, the column will
be marked with “D”.
Operands
Function of the application instruction
Steps occupied by the 16-bit execution instruction
Steps occupied by the 32-bit execution instruction
Related flags for the application instruction
Column marked with * and in grey refers to E, F index register modification is applicable.
Note
Column marked with * is the device applicable for the operand
Device name
Device type
