Delta Electronics IFD9506 Instruction Sheet

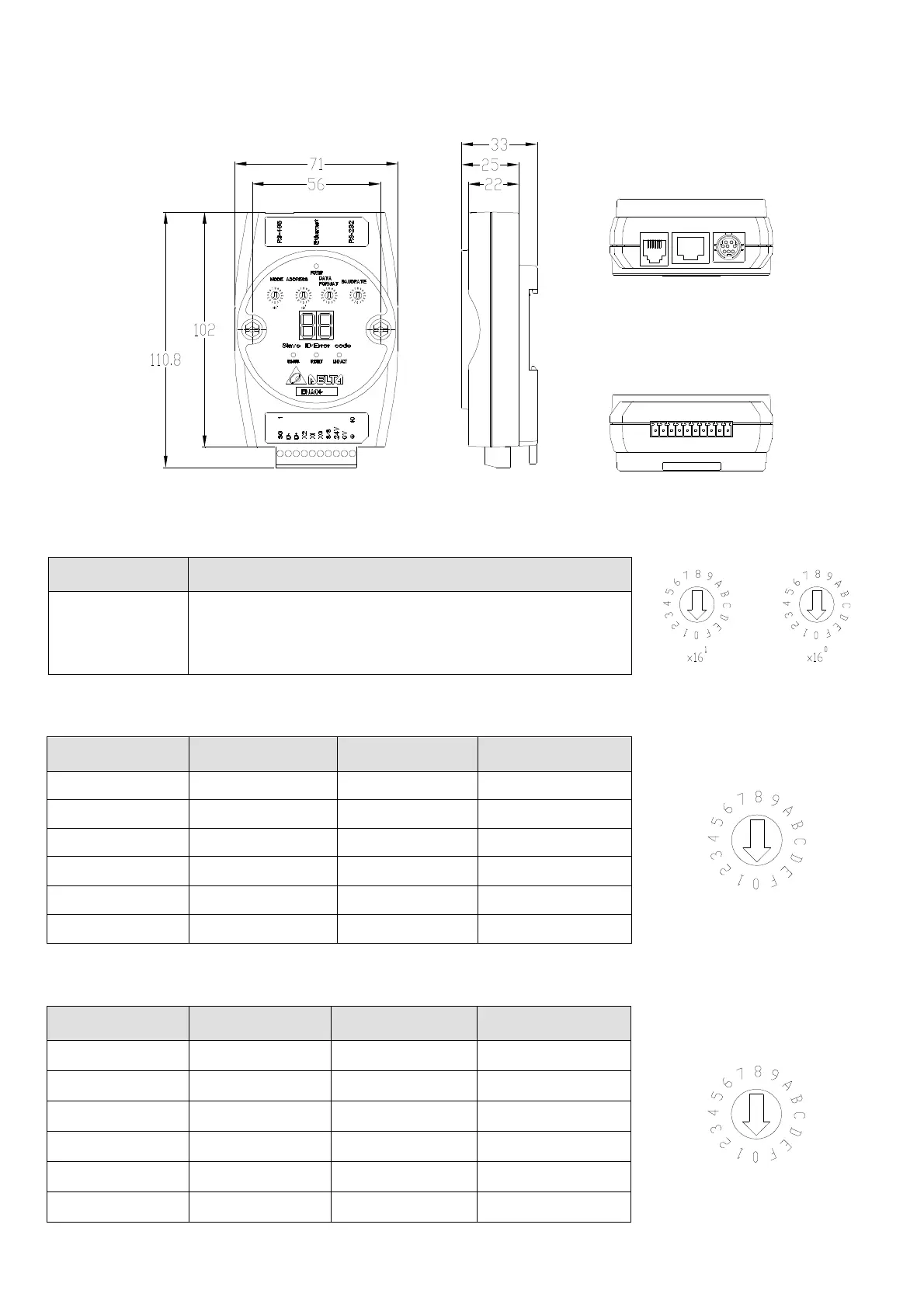

 Installation


 Dimension
Unit: mm


 Address Switch
Switch setting Content
00 … F7 Valid Modbus communication address


 Data Format Switch
Switch setting Format Switch setting Format
0 7-N-1 8 7-N-2
1 8-N-1 9 8-N-2
2 7-O-1 A 7-O-2
3 8-O-1 B 8-O-2
6 7-E-1 E 7-E-2
7 8-E-1 F 8-E-2


 Baud Rate Switch
Switch setting Baud rate (bps) Switch setting Baud rate (bps)
1 110 7 4,800
2 150 8 9,600
3 300 9 19,200
4 600 A 38,400
5 1,200 B 57,600
6 2,400 C 115,200
