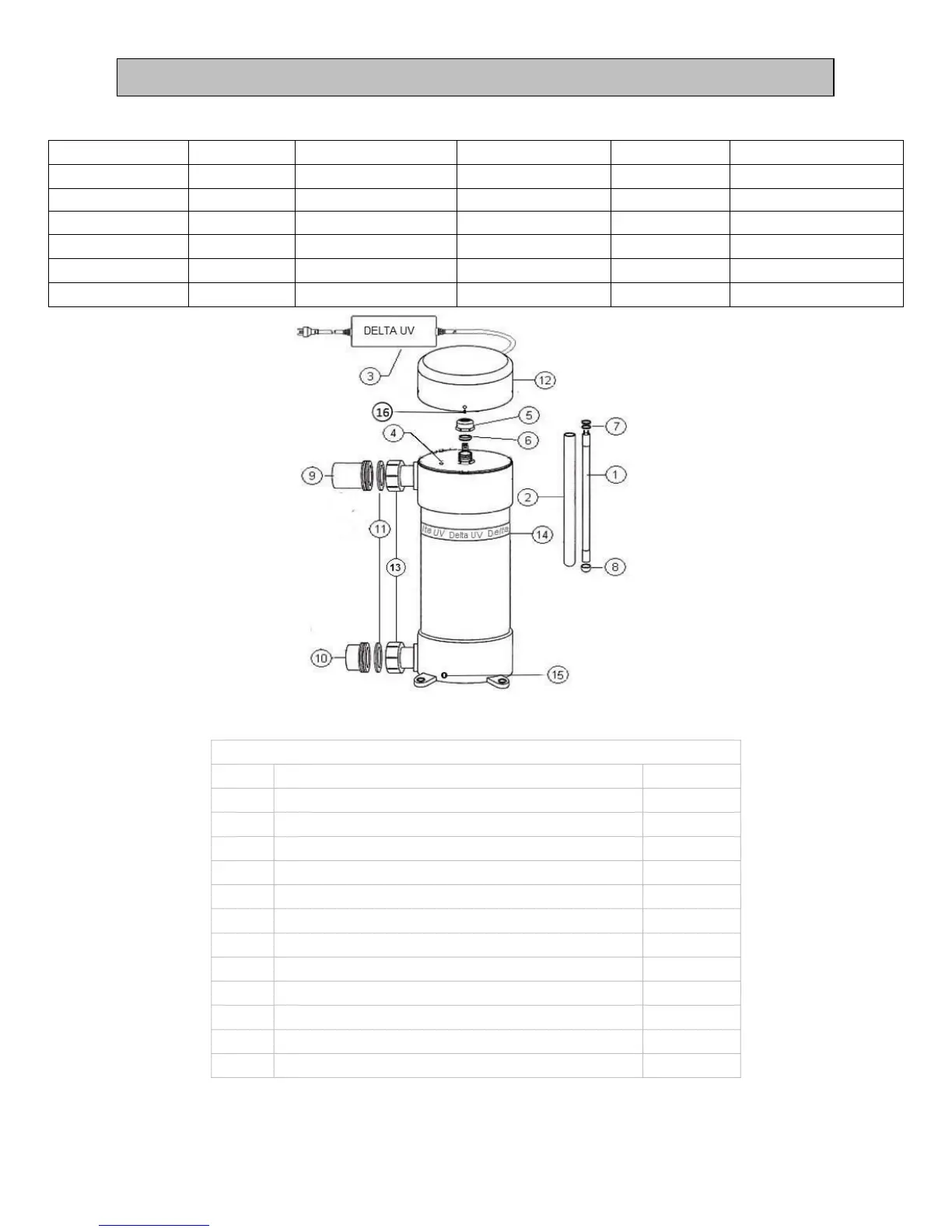

Delta UV D-31 - Parts and Diagrams

© 2015 Delta Ultraviolet Corporation All Rights Reserved Rev 01/16 P/N 94-35234 Page 16
D/DS SERIES
MODEL
POWER
LAMP
QUARTZ TUBE
BALLAST
UV HOUSING
ITEM#1
ITEM#2
ITEM#3
ITEM#14
D OR DS-31
30W
70-18405
58-50305
70-10404
N/A
D OR DS-46
45W
70-18410
58-50310
70-10404
N/A
D OR DS-57
55W
70-18510
58-50315
70-10419
N/A
D OR DS-80
80W
70-18420-S
58-50320
70-10419
N/A
D OR DS-80
90W
70-18440-S
58-50340
70-10419
N/A
COMMON PARTS
ITEM
DESIGNATION
PART #
4
DELRIN PLUG 1/8
40-50019
5
QUARTZ TUBE ACORN NUT&HOLDER
86-02417
6
QUARTZ TUBE COMPRESSION GASKET
44-02018
7
O-RING VITON
44-02221
8
BULB CUSHION
44-02019
9
UNION TAIL PIECE 2'' CLEAR
86-02405
10
UNION TAIL PIECE 2'' WHITE
86-02352
11
FLAT O-RING 2'' WHITE
44-02335
12
ELECTRICAL ENCLOSURE BONNET
86-02094
13
SPLIT NUT ASSEMBLY - 2"
86-02338
15
DRAIN PLUG
44-50265
16
BONNET SCREW
44-06013
*86-02421 Acorn Nut Assembly (acorn nut, threaded nipple, lock nut, compression gasket & o rings)
