4
75106-PT Rev. A

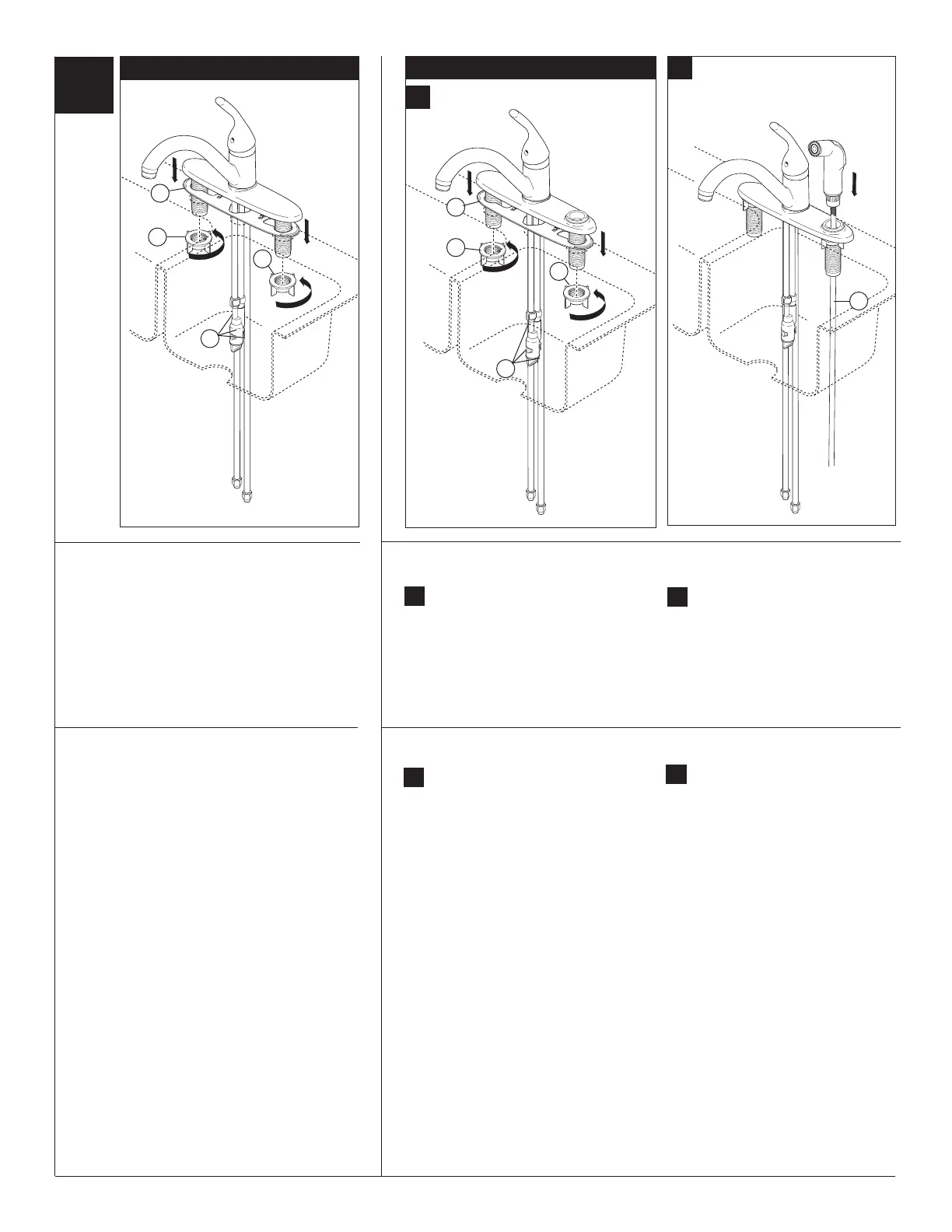

SHUT OFF WATER SUPPLIES. Remove old faucet.
Slide gasket (1) over tubes (2) and install onto bottom
of faucet. NOTE: If surface is uneven, use silicone
sealant under the gasket. Feed tubes down through
center hole in sink. Secure faucet to sink with
mounting nuts (3) supplied with your faucet. Continue
to step 3.
1
100 y 140 Séries
FECHE O FORNECIMENTO DE ÁGUA. Remova
a torneira antiga. Deslize a gaxeta (1) para cima
sobre os tubos (2) a seguir instale na parte
inferior da torneira. Observação: Se a pia não
for uniforme, utilize borracha de silicone sob
a gaxeta. Coloque os tubos para baixo através
do furo central na pia. Fixe a torneira na pia com
as porcas de montagem (3) fornecidas com sua
torneira. Continue até o passo 3.
SHUT OFF WATER SUPPLIES. Remove
old faucet. Slide gasket (1) over tubes (2)
and install onto bottom of faucet. NOTE: If
surface is uneven, use silicone sealant
under the gasket. Feed tubes down
through center hole in sink. Secure faucet
to sink with mounting nuts (3) supplied
with your faucet.
A.
FECHE O FORNECIMENTO DE ÁGUA.
Remova a torneira antiga. Deslize a
gaxeta (1) para cima sobre os tubos
(2) a seguir instale na parte inferior da
torneira. Observação: Se a superfície
não for uniforme, utilize borracha de
silicone sob a gaxeta. Coloque os tubos
para baixo através do furo central na pia.
Fixe a torneira na pia com as porcas de
montagem (3) fornecidas com sua torneira.
A.
Insert sprayer and hose (1) down through
support assembly. Continue to step 2.
Coloque o jato e a mangueira (1) para
baixo através do suporte. Continue até
o passo 2.
B.
3
3
1
B.
100 & 140 Series / Séries
100 & 140 Series
2
3
3
B.
2
300 y 340 Séries
300 & 340 Series
A.
300 & 340 Series / Séries
1
1
