25
4. Put wiring cover back and then tighten the screw.
5. Close the panel.
Installation of indoor unit
Note:
● All wires of indoor unit and outdoor unit should be connected by a professional.
for a new one. Avoid extending the wire by yourself.
installation.
● For the air conditioner without plug, an circuit break must be installed in the line.
The circuit break should be all-pole parting and the contact parting distance
should be more than 3mm.

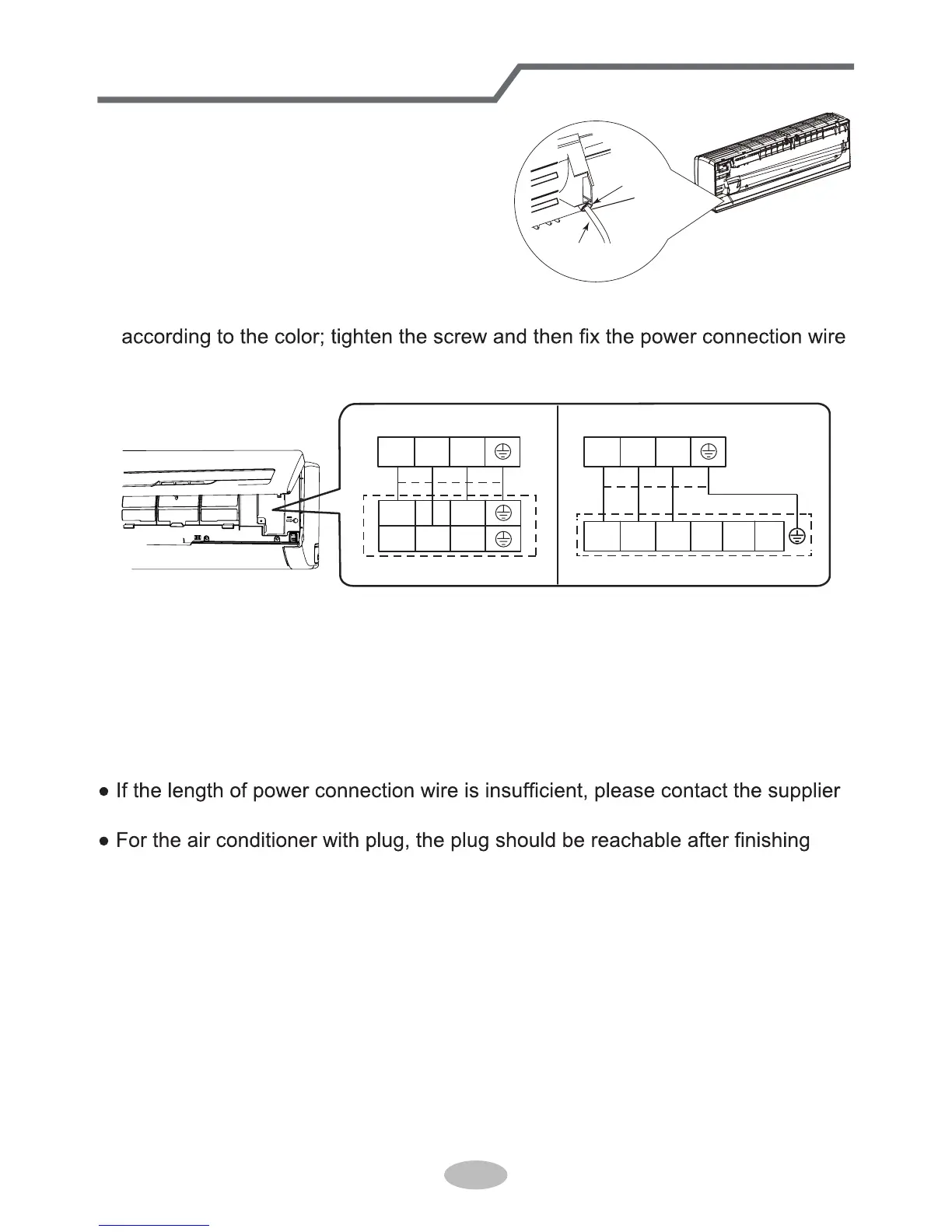

3. Remove the wire clip; connect the power connection wire to the wiring terminal
with wire clip.
power connection
wire
cable-cross
hole
2. Make the power connection wire go
through the cable-cross hole at the back
of indoor unit and then pull it out from
the front side.
2 3N(1)
2 3N(1) L1 L2 G
Outdoor unit connection
18、24K:09、12K:
2 3N(1)
Outdoor unit connection
L2L1
2 3N(1)
