This versatile dust collector is light, compact and can
easily be transported for use in and out of the workshop.
This dust collector can be used with many different
types of woodworking machinery as shown in Figs. 26,
27, and 28. .

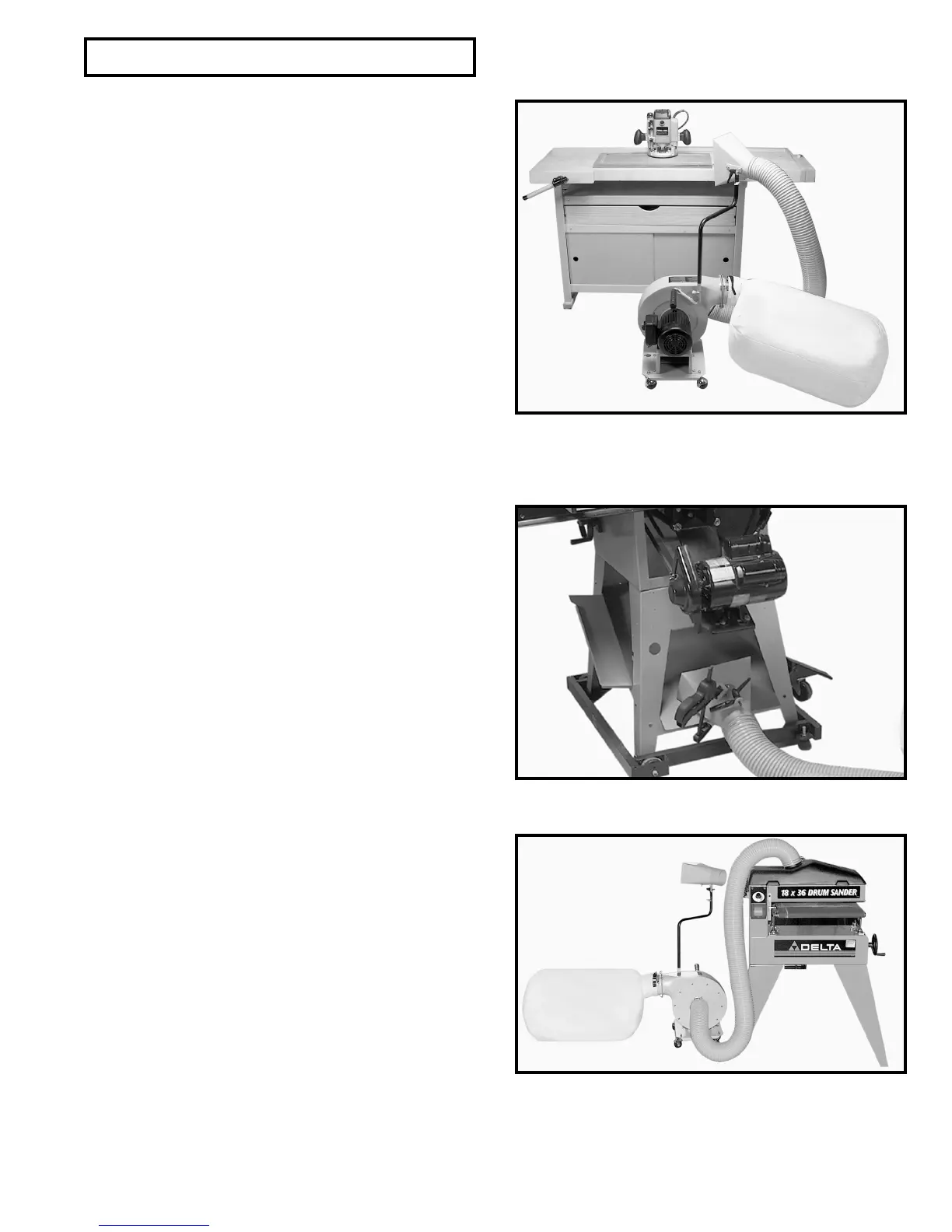

Fig. 26 illustrates the dust collector used with a router.
Note that the intake port is adjusted so that dust created
by the router will be collected.
Fig. 27 illustrates the dust collector used with a table
saw. Note that the intake port is removed from the lower
tube support. The intake funnel can be clamped to a tool
as shown.
Fig. 28 illustrates the dust collector used with a drum
sander that is equipped with a dust removal port. The 4"
hose can be connected directly to the dust removal port.
Fig. 26
Fig. 27
Fig. 28
