Chapter 1 Product Summary
Operating Manual for Communicating Area Sensor
1-1
Chapter 1
Product Summary
1.1 Product Information
◎ The guideline of product selection
Size of detection object: The detection object need to be bigger than Minimal Detection Object
Detection height: beam numbers * beam spacing
Output: Object absence detection  RX model, switching output that has 2 output NPN and PNP
Object size detection  CX model, switching output and communication output
Model AS-BF series AS-BH series AS-BA series
Minimal Detection Object 16.5mm 26.5mm 46.5mm
Beam Spacing 10mm 20mm 40mm
Beam Numbers 16~128 8~96 4~36
Detection height 160 ~ 1280mm 160 ~ 1920mm 160 ~ 1440mm
Detection distance 0.1 ~ 10m

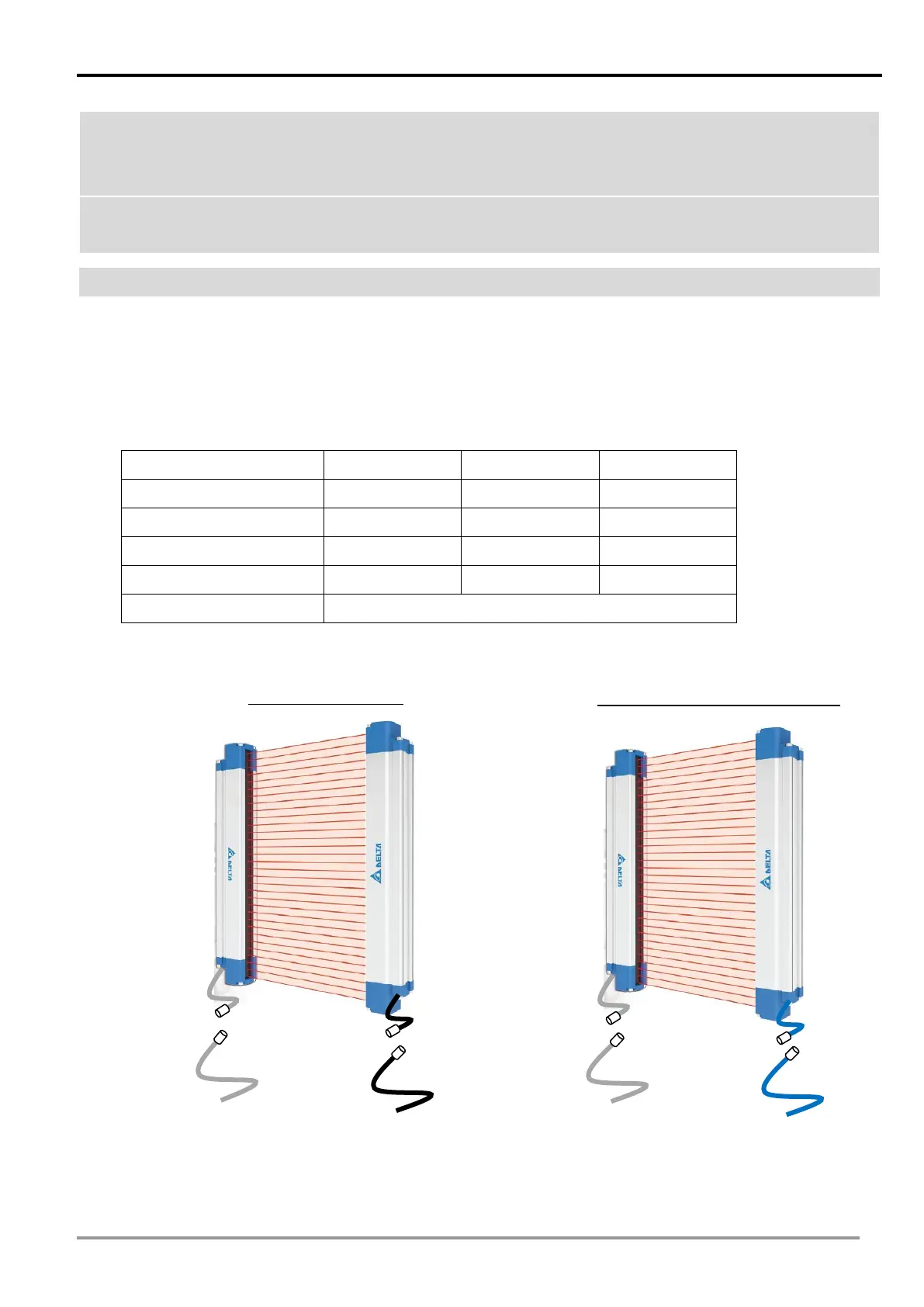

◎ Model description
Blue
AS-B-C Communication Type
AS-B□□□□-TX
Transmitter module
AS-B□□□□-CX
Receiver model
Gray
AS-B-WT□□□
AS-B-WC□□□
Black
AS-B Standard Type
AS-B□□□□-TX
Transmitter model
AS-B□□□□-RX
Receiver model
Gray
AS-B-WT□□□
AS-B-WR□□□
