AS
Ser
ies Module
Manual
1
1
-
44
11
7.

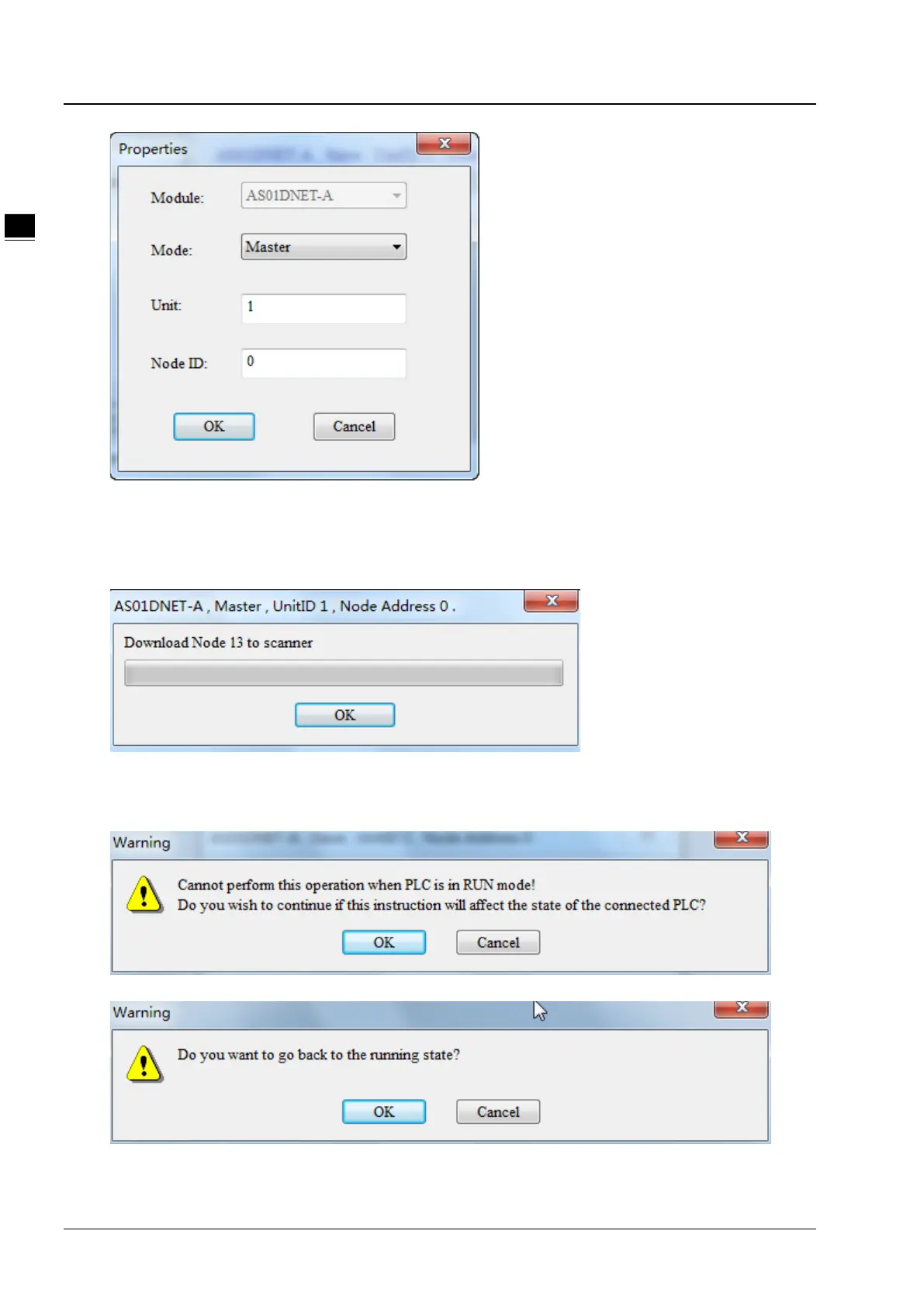

Click
Network
>>
Dow
nload
. If the PLC
is in STOP state, the following dialog bo
x will exis
t during the do
wnload.
The dialog box
will disappear
automatic
ally after
the download is f
inished. AS01DNET
-
A
will b
e in master mode
after repo
wer ON.
8.
If the PLC is in RUN stat
e, the
War
ning
dialog bo
xes will po
p out before an
d after the do
wnload. Users c
an click
OK
or
Cancel
accord
ing to actual
situation.
