 PN Controller transmits 8 Words of data (Q0~Q15) to the data register D200~D207 in AS300 Series PLC.
 AS-FPFN02 transmits 8 Words of data (D100~D107) to the data register I0~I15 in S7-1500.

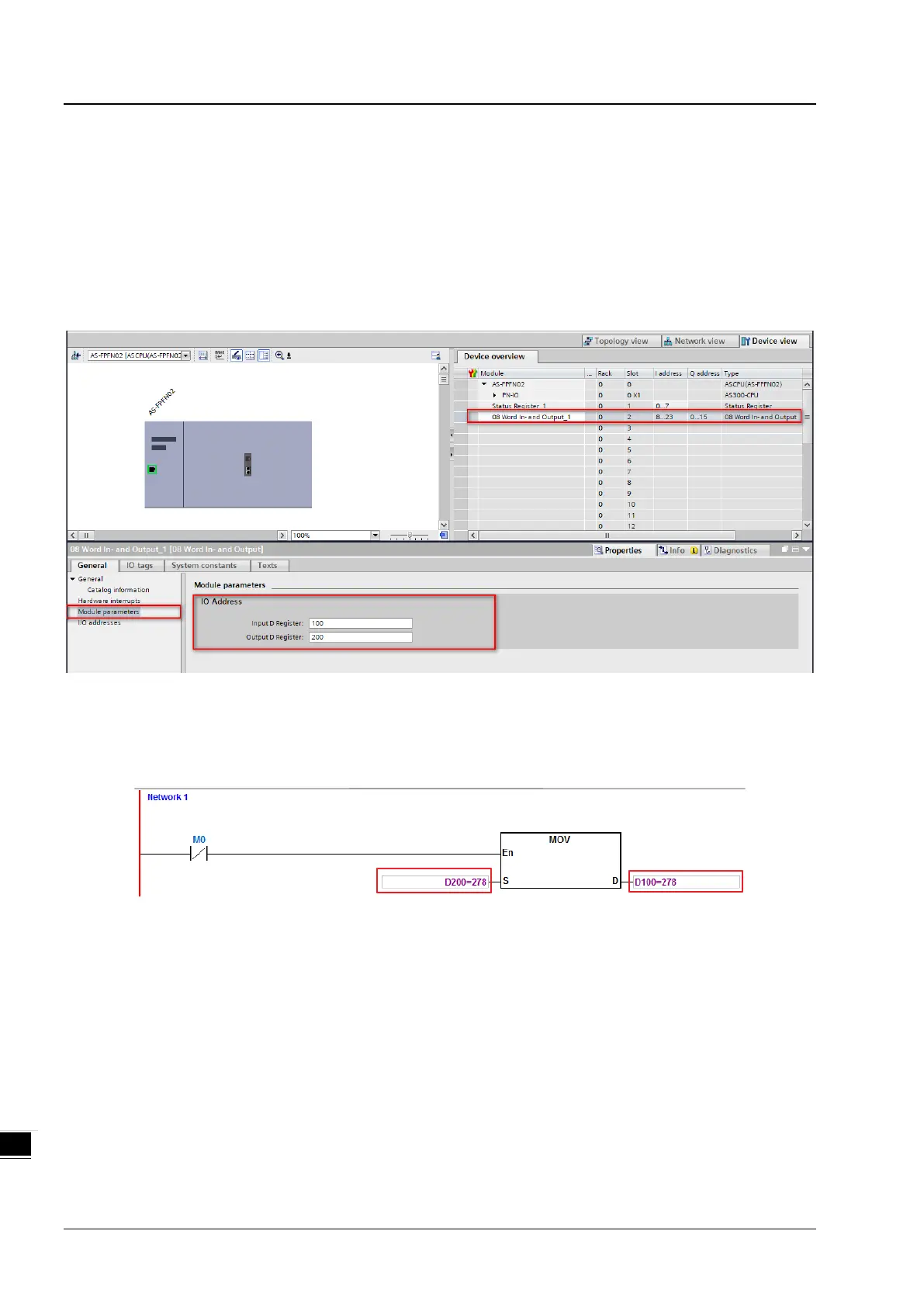

To determine if the data exchange is successful, you can check the program in Siemens TIA-Portal software. With a
created PLC program, when clicking Main [OB1], the value in the register QW0 increments every second and that
indicates the data exchange is successful.
The data exchange can only begin when the Bit Input Data Available is TRUE. Refer to Section 10.2.8.6 for more details.
To determine if the data exchange is successful, you can check the program in ISPSoft. Use the MOVE instruction, you
can see the value in D200 moves to D100 and PN Controller can read the data and that indicates the data exchange is
successful.
