Chapter
1
1
DeviceNet
Master Sc
anner
Module
AS01DN
ET
-
A
1
1
-
43
1
1
5.

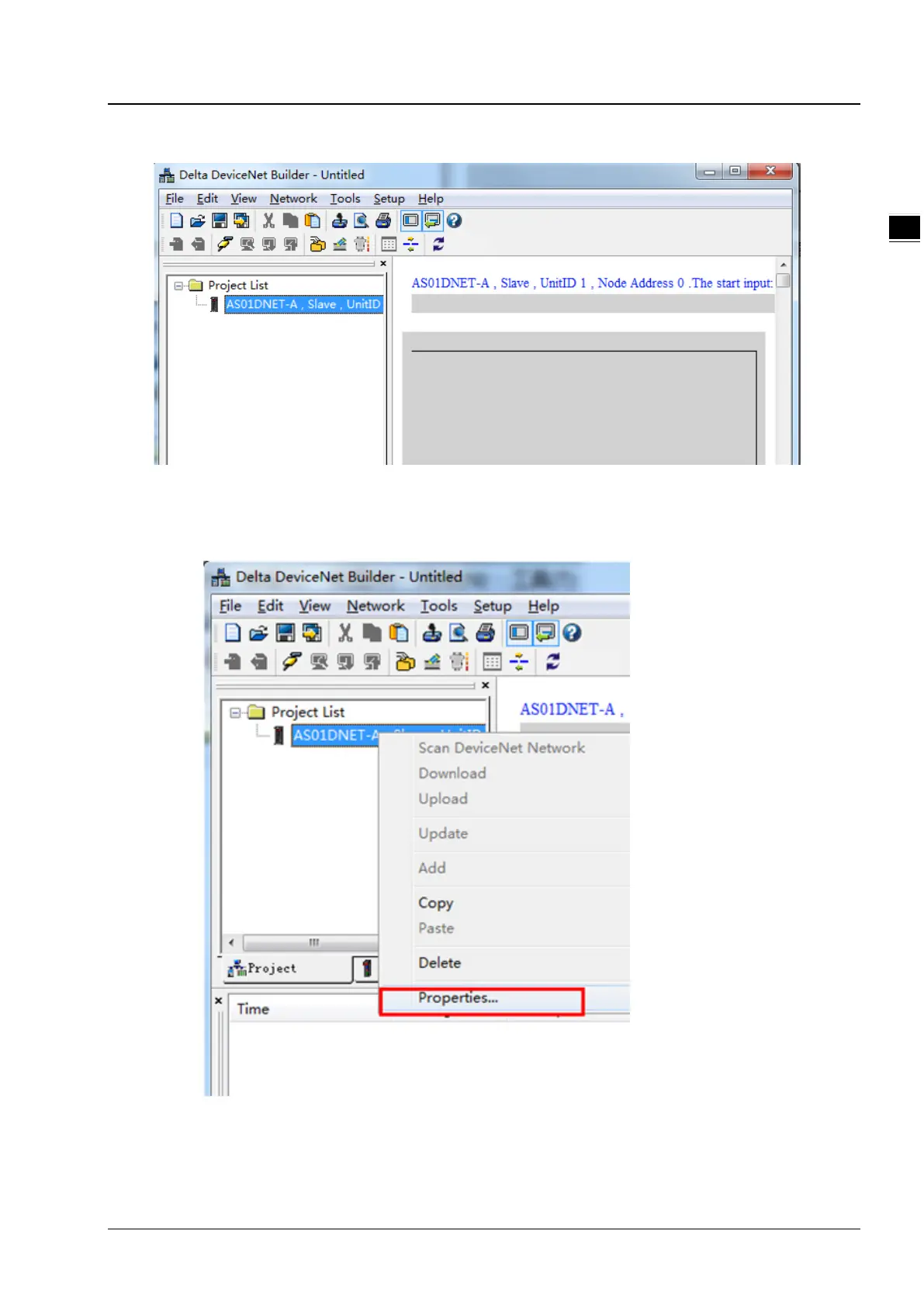

Click
Network
>>
Onl
ine
to scan the co
nnected slave.
6.
Click
Project List
>>
Properties
as below
. Then the
Properti
es
dialog bo
x appears. Sel
ect
Master
mode and
then click
OK
.
468
