Delta AS00SCM-A User Manual

AS Series Module Manual
11-76
11

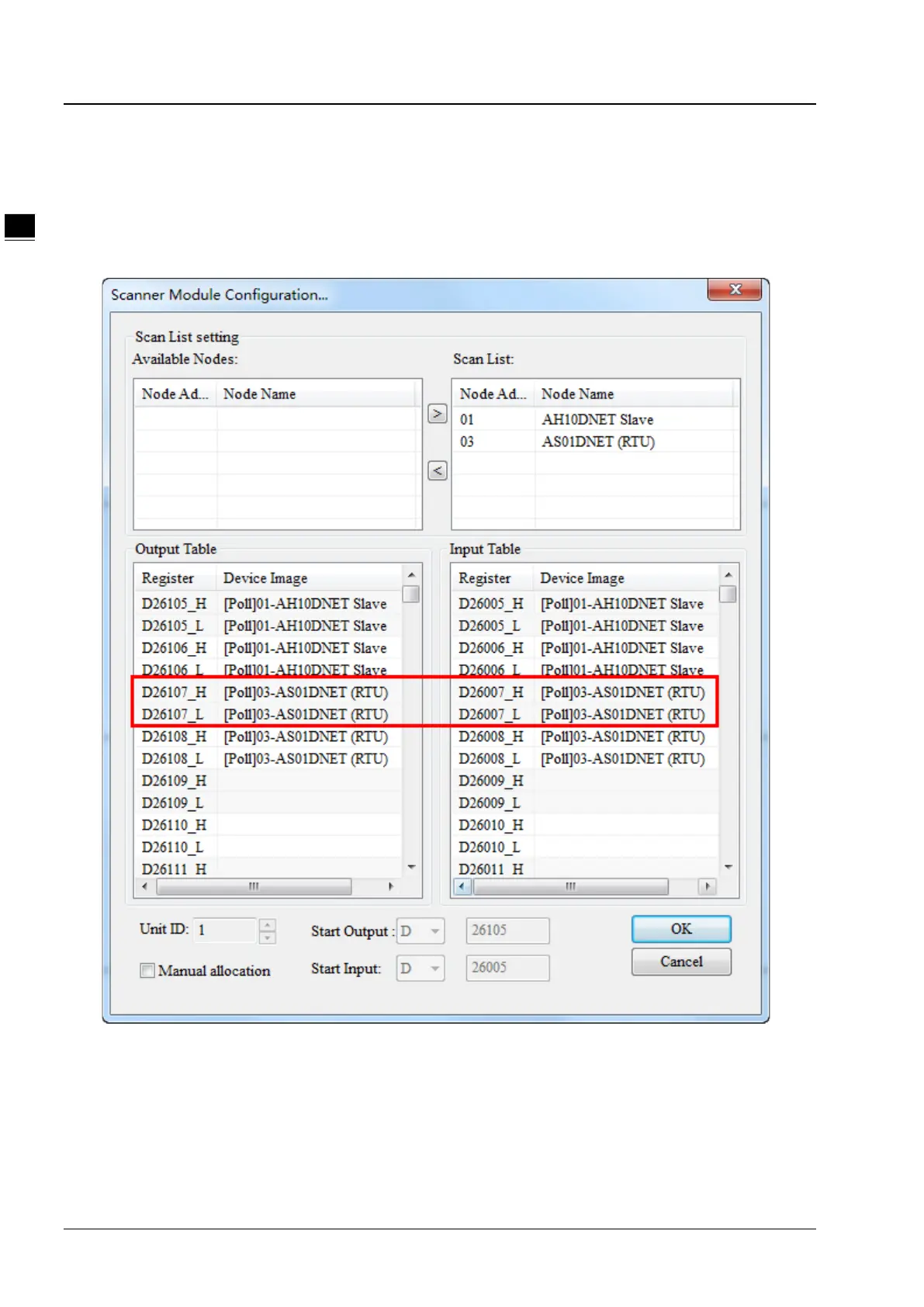

If AS01DNET (RTU) is added to the master after AH10DNET is added to the master, then the input mapping addresses
and output mapping addresses of AS01DNET (RTU) are respectively D26007~D26008 and D26107~D26108 as below.
D26007 and D26107 are respectively the start input mapping address and start output mapping address, i.e. status word
and control word of AS01DNET (RTU). The registers after start input mapping address and start output mapping address
are for mapping the configuration parameters of I/O modules.
+
