Delta AS01DNET-A User Manual

Chapter 11 DeviceNet Master Scanner Module AS01DNET-A
11-33
1
1
 Parameters Setting and Device Explanation
 Setup for AS01DNET-A
Parameter
Setting value
Description
Node ID
00
Set the node ID of AS01DNET-A to 00.
Baud rate
500 kbps
Set the baud rate of AS01DNET-A to 500 kbps.
 Setup for VFD-C2000
Parameter
Setting value
Description
00-20
08
Frequency command source
00-21
05
Operation command source
09-30
0
Communication decoding method
09-70
01
Node ID of AC motor drive
09-71 02
Baud rate: 500Kbps

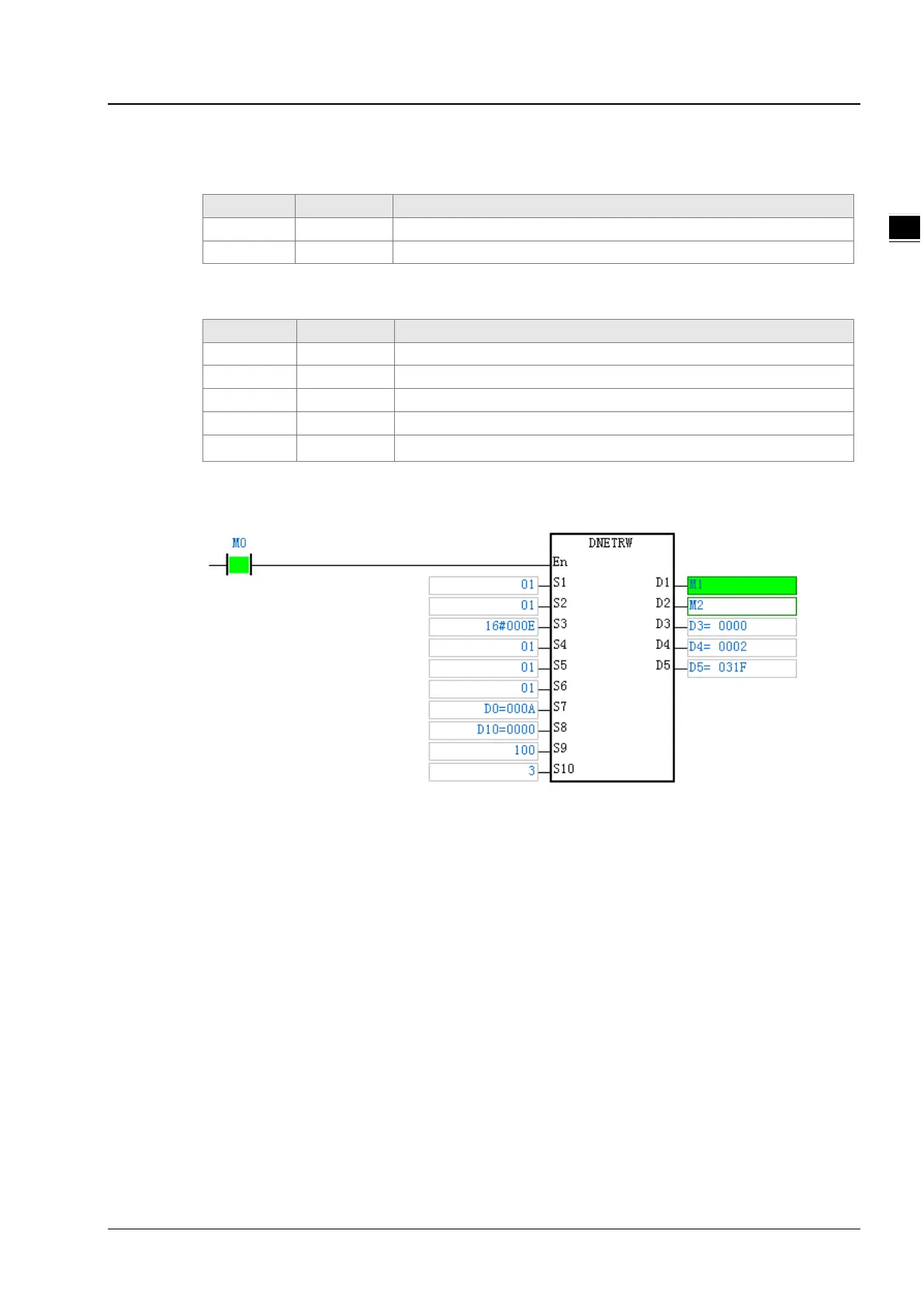

 PLC Program
 S1: The number of the module sending DeviceNet communication. The first one of the right side is 01.
 S2：DeviceNet node ID (MAC ID); Node ID of VFD-C2000: 01.
 S3：Service code; 0X0E: read one single attribute content.
 S4：Class ID; Class ID of CMC-DN01: 01;
 S5：Instance ID; Instance ID of CMC-DN01: 01;
 S6：Attribute ID; Attribute ID of CMC-DN01: 01；
 S7：Write data size. When DNETRW instruction is used to read data, the value in S7 can be set to any
data.
 S8：The start device where the written data are stored. When DNETRW instruction is used to read data,
the value in S8 can be set to any data.
 S9：Communication timeout time
 S10：Times of re-transmission. Times of re-sending communication when communication timeout occurs.
 D1：Completion flag
