Delta AS01DNET-A User Manual

Chapter 11 DeviceNet Master Scanner Module AS01DNET-A
11-67
1
1

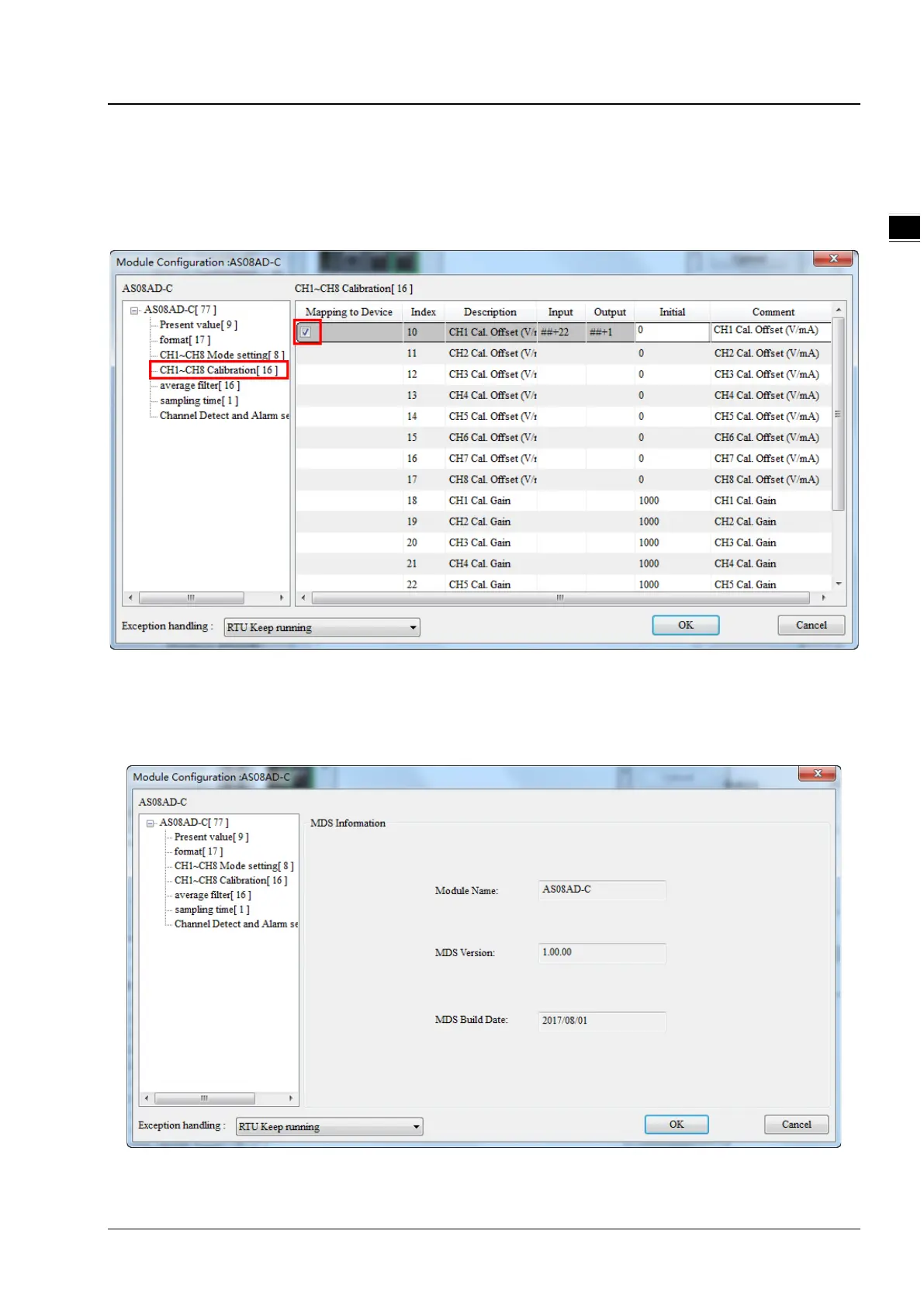

Case 3: For the module parameter which need be monitored in real time or need be modified in its value, tick the desired
parameter in the Mapping to Device column and then the corresponding value of the parameter will map to the
bus data for exchange i.e. the D registers in PLC. After the values of the ticked parameters in the Mapping to
Device column go to the software monitor page, the current values of parameters can be monitored and
modified in real time.
 Explanation of IO module parameters
Double click the icon of AS08AD-C module. Then the Module Configuration: AS08AD-C dialog box comes out as
below.
