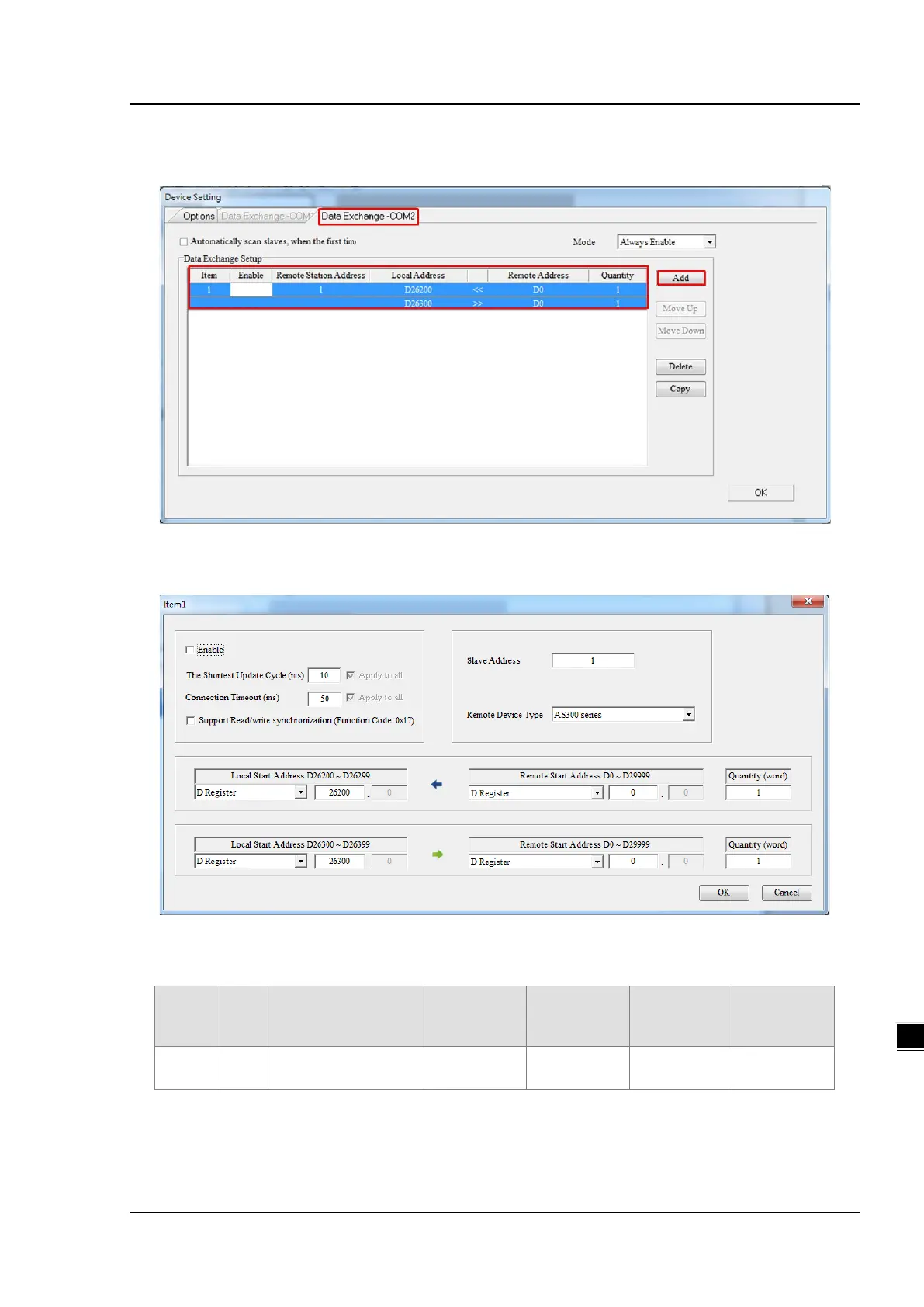

6) Set up the data exchange table: select Data Exchange – COM2 and click Add to create a new Data Exchange
Setup table.
7) In the Data Exchange Setup table double-click an item to edit its settings.
 Select Standard Modbus Device as the Remote Device Type, enter the parameters, and check Enable.
Product
Slave
ID
Communication
protocol
Device from
which data is
read
Register in
the CPU
module
Device into
which data is
written
Register in
the CPU
module
VFD 10 38400, ASCII, 7, E, 1 16#2103 D26200
16#2000
16#2001
D26300-
D26301
