Chapter 2 Digital Input/Output Modules
2- 17
2
_

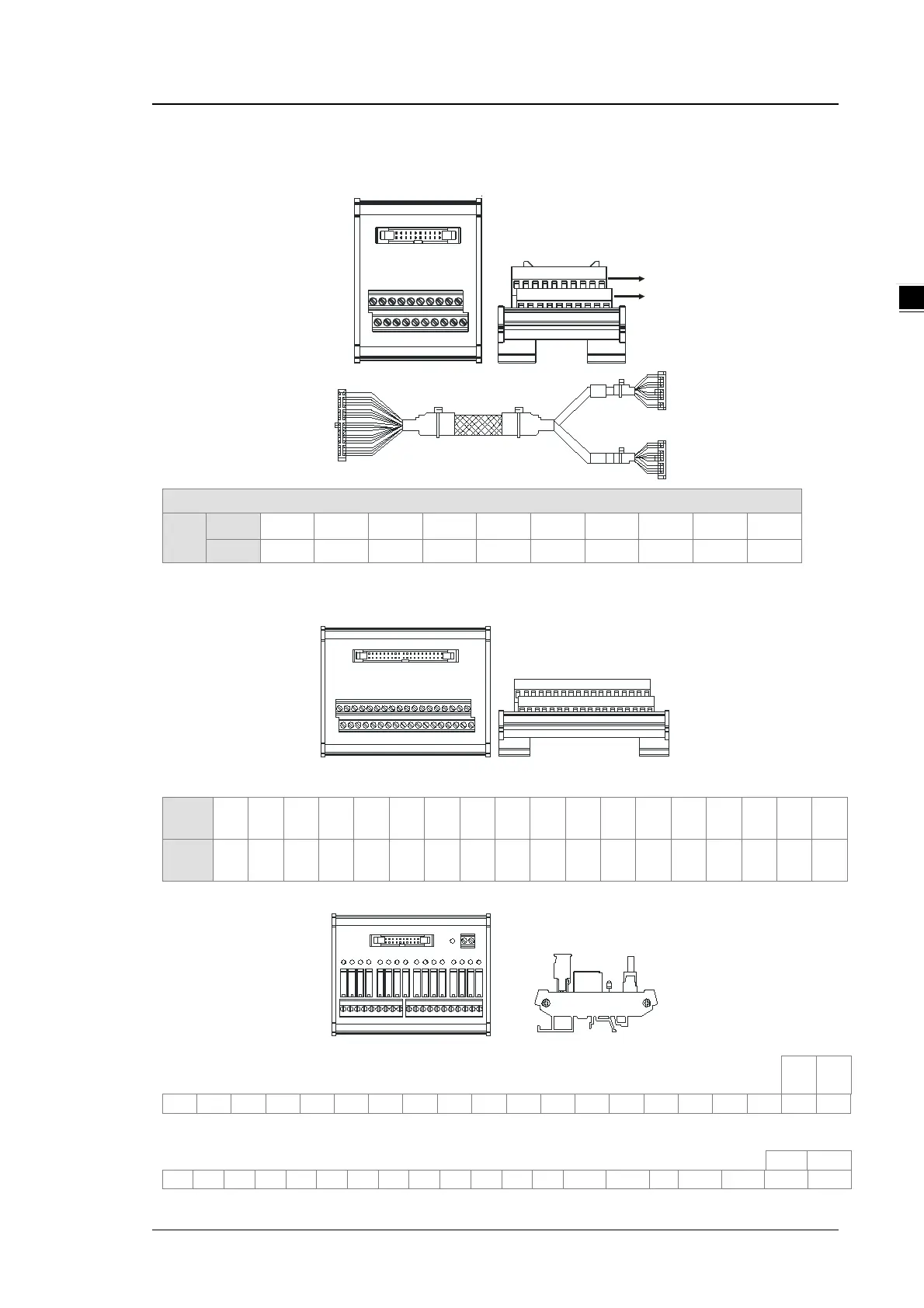

2. AS32AN02T-A/AS64AN02T-A and the wiring modules:
 UB-10-ID16A
TB1
TB2
#1
#2
AS332T-A
#1
TB1 Y0.0 Y0.2 Y0.4 Y0.6 Y0.8 Y0.10 Y0.12 Y0.14 C0 -
TB2 Y0.1 Y0.3 Y0.5 Y0.7 Y0.9 Y0.11 Y0.13 Y0.15 C0 -
 UB-10-OT32A
AS series terminals:
Upper
row
Y0.0 Y0.2 Y0.4 Y0.6 Y0.8 Y0.10 Y0.12
Y0.14
Y1.0 Y1.2 Y1.4 Y1.6 Y1.8 Y1.10
Y1.12
Y1.14
 
Lower
row
Y0.1 Y0.3 Y0.5 Y0.7 Y0.9 Y0.11 Y0.13
Y0.15
Y1.1 Y1.3 Y1.5 Y1.7 Y1.9 Y1.11
Y1.13
Y1.15 C0 C0
 UB-10-OR16A
Terminals:
GND
+24
V
C0
Y0
Y1
Y2
Y3
C1
Y4
Y5
Y6
Y7
C2
Y10
Y11
Y12
Y13
C3
Y14
Y15
Y16
Y17
AS series terminals:
GND
+24V
C0
Y0.0
Y0.1
Y0.2
Y0.3
C1
Y0.4
Y0.5
Y0.6
Y0.7
C2
Y0.8
Y0.9
Y0.10
Y0.11
C3
Y0.12
Y0.13
Y0.14
Y0.15
