AS-FCOPM
With its own standalone communication port, the extension card can work independently and can act as a
master or a sloave. After installing the extension card, go to the HWCONFIG in ISPSoft to set up the
communication.

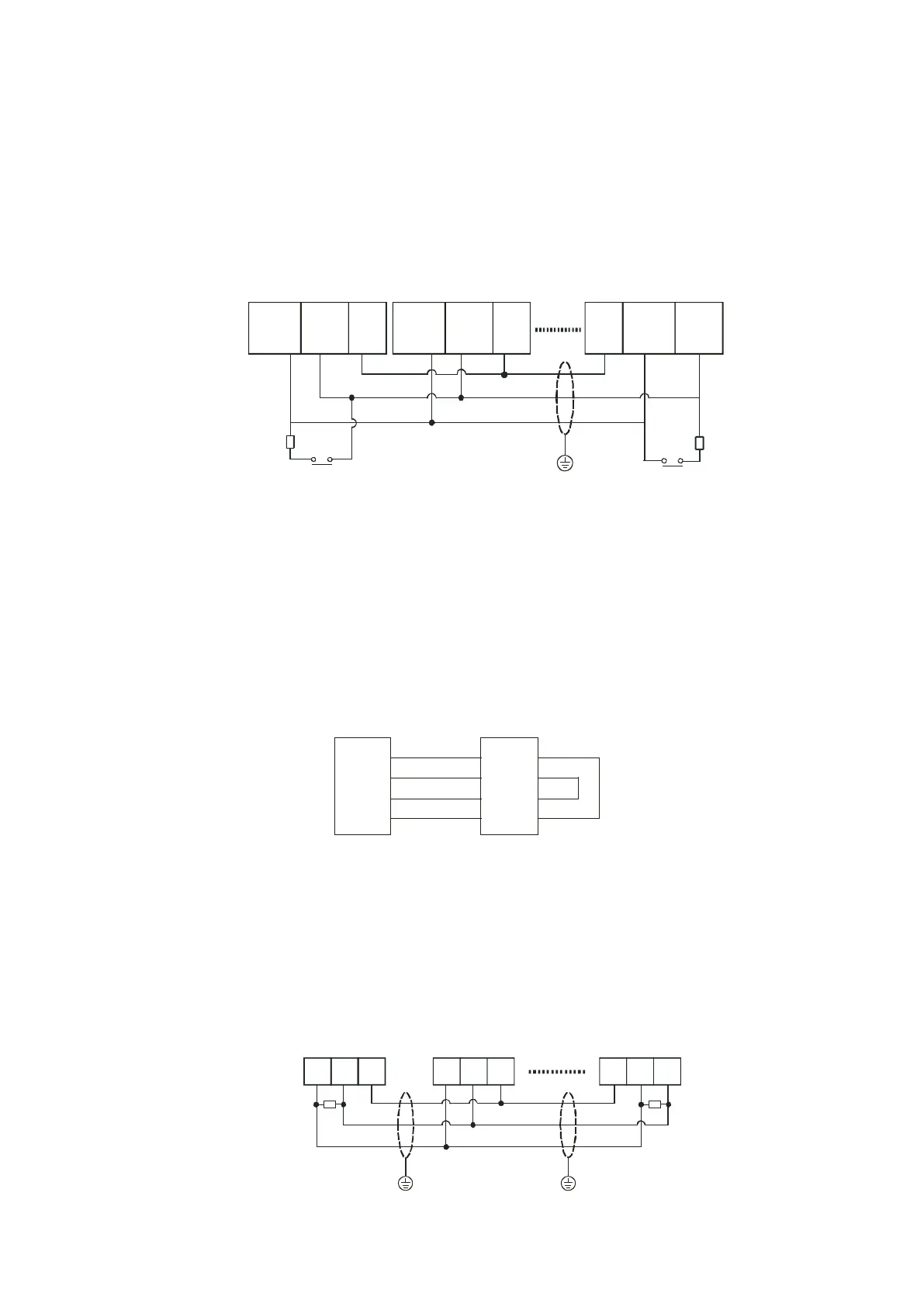

Wiring example
GND
CAN_H CAN_L
Master node
Slave node
Slave node
Terminal
resistor
(120 ohm)
Shielded
cable
GND
CAN_H CAN_L
GND
CAN_H CAN_L
Terminal
resistor
(120 ohm)
AS-F422
You can use this extension card for communication with Delta HMI series or other devices through the RS-422
communication port. You can use this extension card for communication with different interfaces such as RS-
232 and a PC. The communication functions and isolation levels are the same as the PLU CPU built-in ones.
It can be used in slave or master mode. After installing the extension card, go to the HWCONFIG in the
ISPSoft for communication setup.
Wiring example of the communication with Delta HMI DOPA series via COM2
3
4
1
2
6
7
8
9
COM2/DB-9
A
S
-F422
Delta HMI seriesDOPA
2
1
3
4
T+
T-
R+
R-
Rx+
Rx-
Tx+
Tx-
RTS-
RTS+
CTS+
CTS-
AS-F485
With its own standalone communication port, the extension card can work independently. You can use this
extension card for communication with different interfaces such as RS-232 and a PC. The communication
functions and isolation levels are the same as the PLU CPU built-in ones. It can be used in slave or master
mode. After installing the extension card, go to the HWCONFIG in the ISPSoft for communication setup.
Wiring example
D+ D-
SG
D+ D- SG SG D+ D-
Master node
Slave node Slave node
Shielded
cable
Shielded
cable
Terminal
resistor
(120 ohm)
Terminal
resistor
(120 ohm)
