A. General-purpose timer
When the instruction TMR is executed, the general-purpose timer begins to count. When the value of the
timer matches the timer setting value, the output coil is ON.

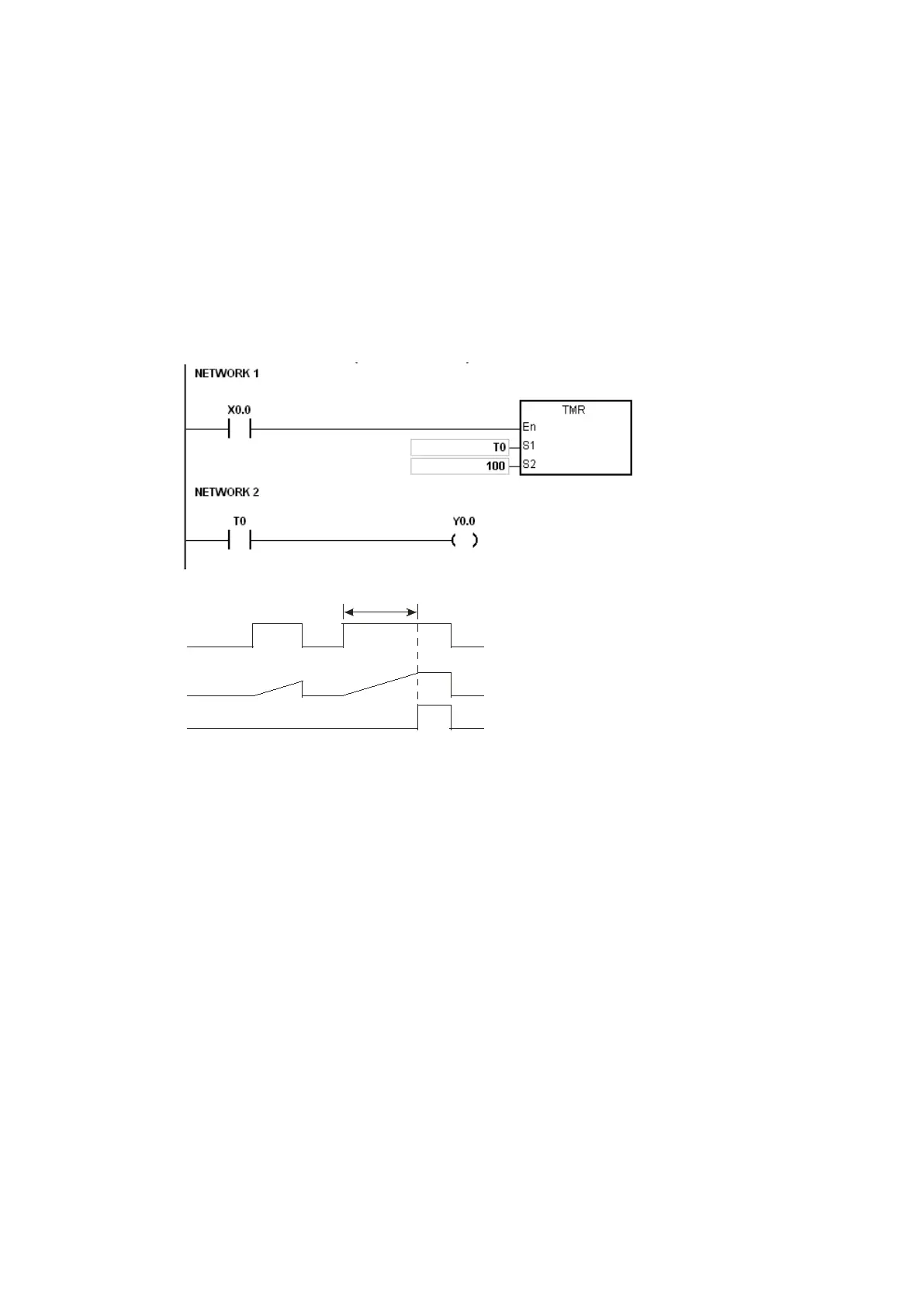

When X0.0=ON and the timer takes 100 ms as the timing unit, the output coil T0 is ON when the
value of the timer = setting value100.
When X0.0=OFF or the power is off, the value of the timer is 0 and the output coil T0 is OFF.
X0.0
T0(PV)
Y0.0
SV:K100
10
sec
B. Accumulative timer
When the instruction TMR is executed, the accumulative timer begins to count. When the value of the
timer matches the timer setting value, the output coil is ON. As long as you add the letter S in front of the
letter T, the timer becomes an accumulative timer. When the conditional contact is OFF, the value of the
accumulative timer is not reset. When the conditional contact is ON, the timer counts from the current
value.
When X0.0=ON and the timer T250 takes 100 ms as the timing unit, the output coil T250 is ON
when the value of the timer = timer setting value100.
When X0.0=OFF or the power is off, the timer T250 stops counting, and the value of the timer
stays the same. When X0.0=ON, the value of the timer is accumulating value When the
accumulated value = timer setting value 100, the output coil T250 is ON.
