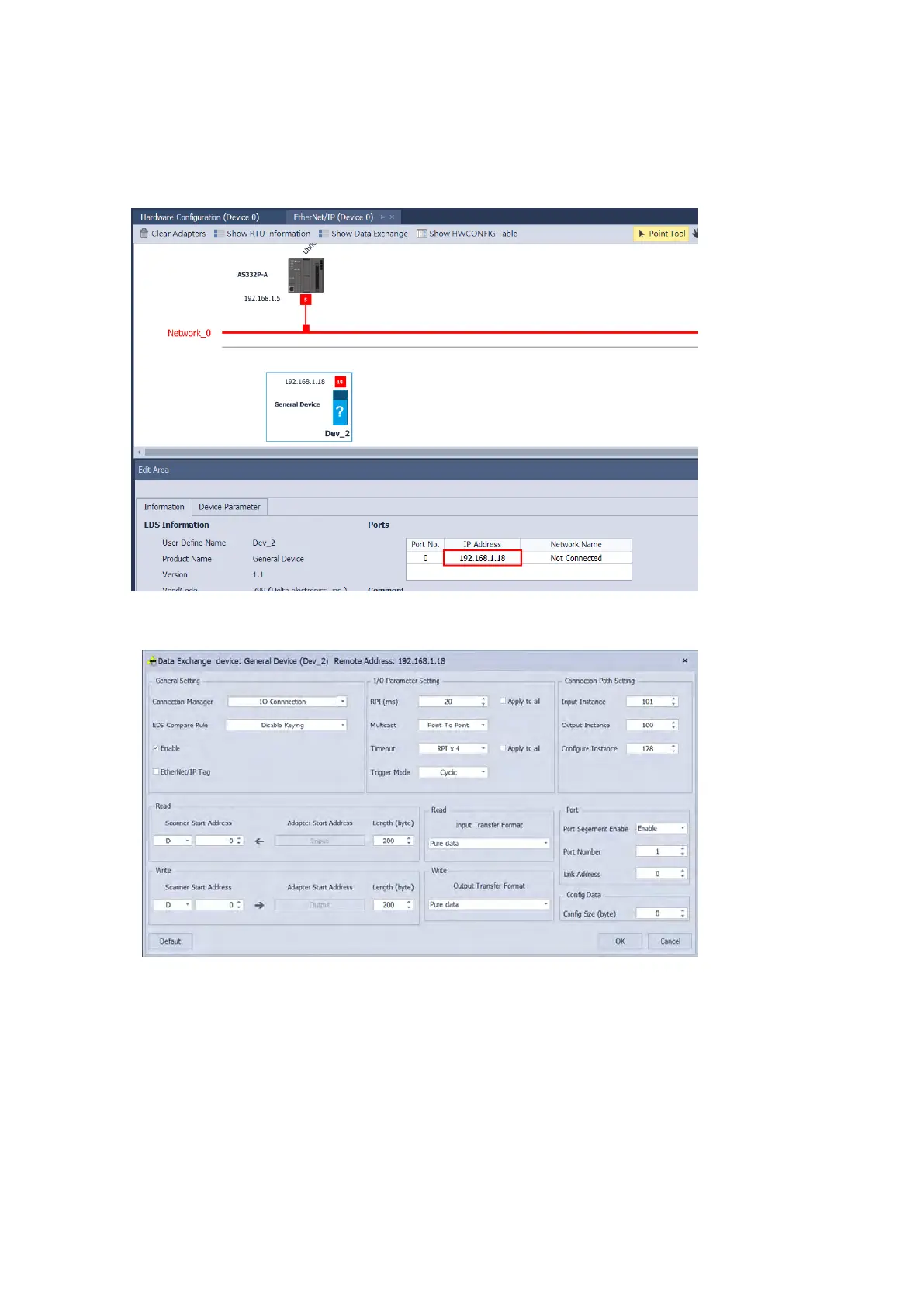

Without EDS Files:
1. When there is no EDS file, you can use General Device to set up.
a) Select General Device from the Product List and add it to the network.
b) Set up the IP address for the 3
rd
party device.
c) Connect the device to Network_0.
2. Open Data Exchange setting page to set up.
a) General Setting: No need to change anything here.
b) I/O Parameter Setting: You can edit the settings here according to your requirements.
c) Connection Path Setting (required): You need to set up the instances for the device.
d) Length (required): Each input/output instances has its own data length. Refer to its user manual and
input the data length in. If the data here is incorrect, the connection may fail to be created.
e) Input/output Transfer Format: For common use, input: Pure data; output: 32-bit run or Idle header.
f) Port: No need to change anything here.
g) Config Data: Refer to its user manual and size value in.
