MultiChoice
®
Rough-In Installation
(When your product requires)
4
5
1
3
4
2
SHUT OFF WATER SUPPLIES.
Consider the type and thickness of your
finished wall before placing your stringer
back plate.

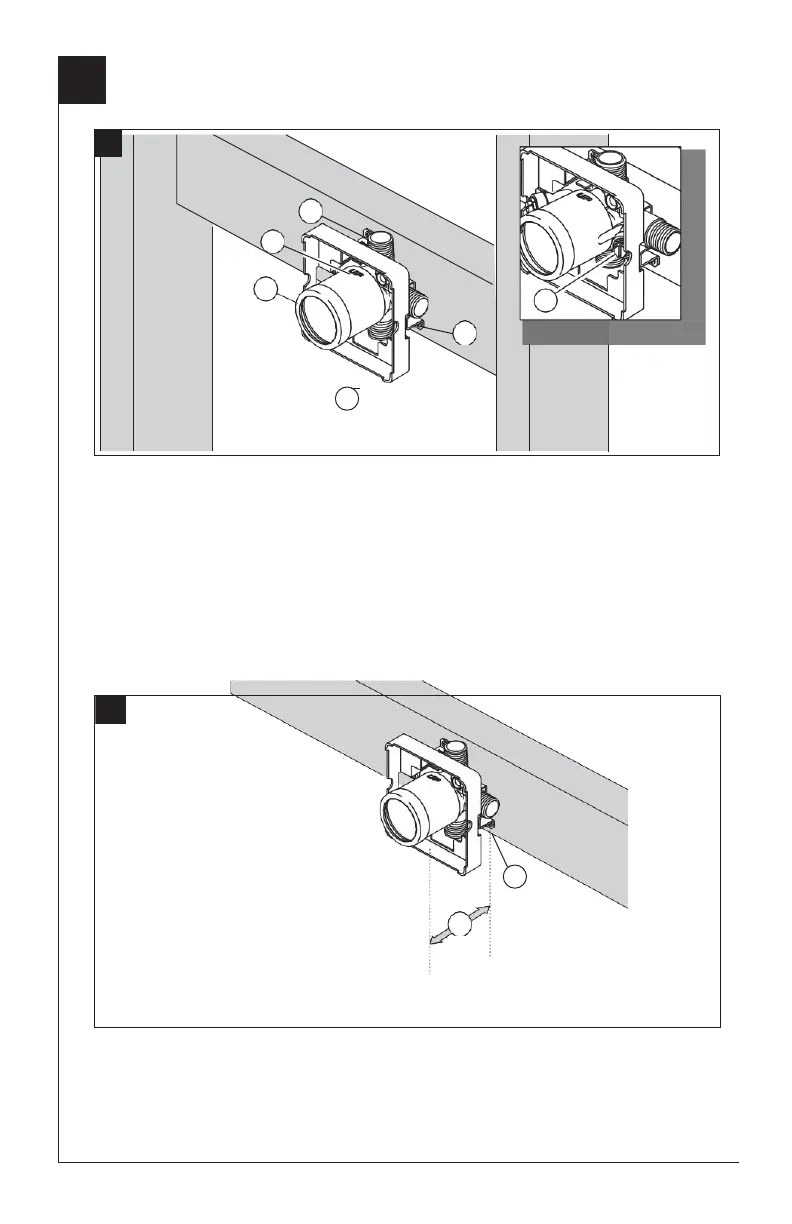

• Install the body (1) so the surface of the
finished wall is flush with the front of the
plasterguard (2) ± 3/8". Note: For
models with stops (3), plasterguard
must be flush or subflush 3/8" to
finished wall.
• Mount body using the two stringer
mounting holes (4) on the bracket.
• Make sure the word “UP” (5) is on top of
the valve body when installing.
Distance (1) from the stringer (2) to the
front of the plasterguard is 2.8" (71 mm).
If a thin wall is used, be sure to have the
plasterguard behind the wall, otherwise
the wall should always be flush with the
front of the plasterguard. See instruction
on the bag for thin wall mounting.
