DNT-T221 (Rev 4.1) Installation Guide
Device Addressing
LINKnet Connection
• Set via Keypad Configuration Setup
• Address Range: 1 to 12
BACnet MS/TP Connection
• Set via Keypad Configuration Setup, or Software Setup
• Keypad MAC Address Range: 1 to 99 per network segment
• Software Address Range: As per the BACnet standard
• Supports DNA – Delta’s intuitive addressing scheme
Size
• 5” x 3.25”x 1” (12.7 cm x 8.3 cm x 2.5 cm)
Weight
• 0.3 lb. (136 g.)

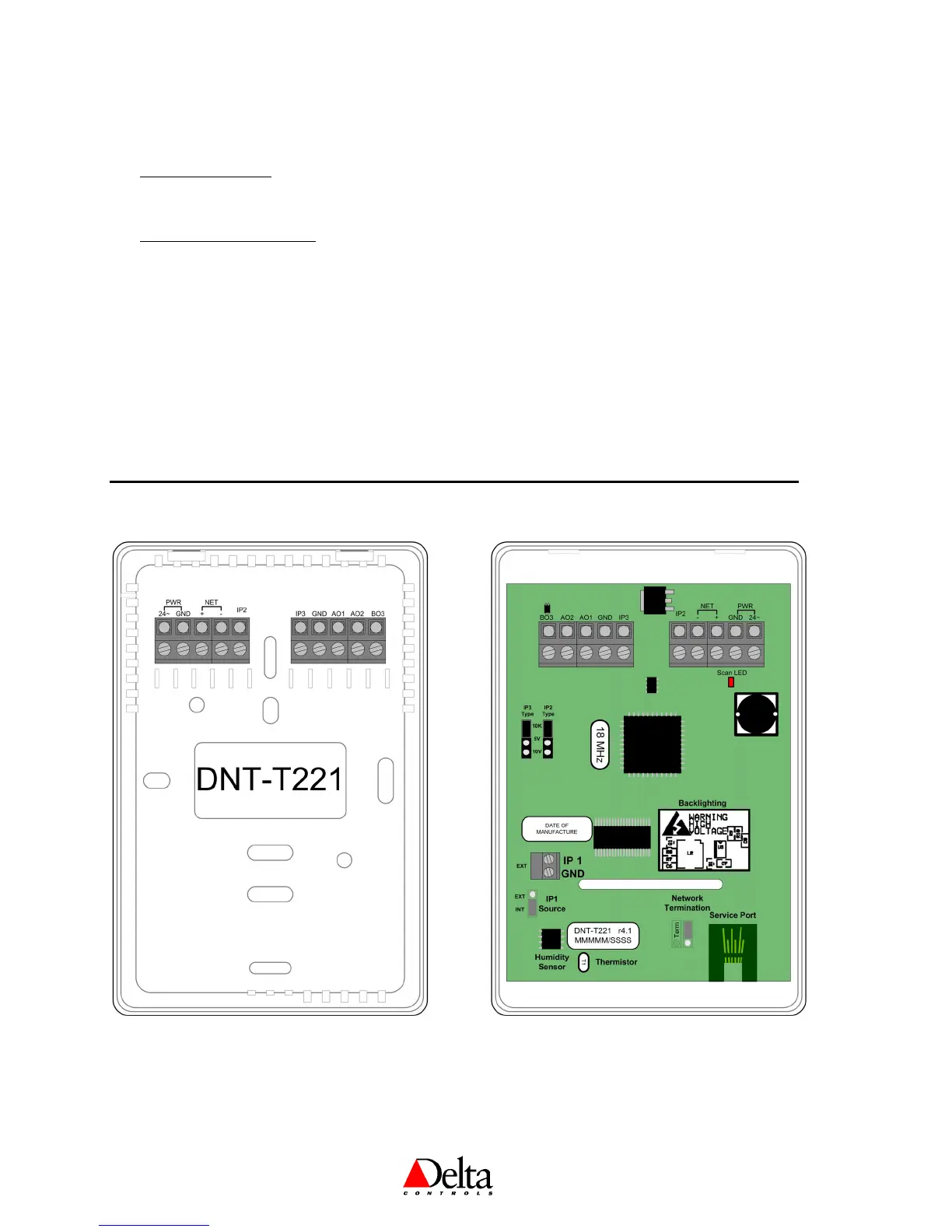

PCB Board Layout
Page 4 of 10
Document Edition 1.8
