Wiring:
Type Wire gauge (AWG) Stripped length Torque
Solid
24 - 12 7 - 8 mm (0.28 - 0.31 inches) 5 kg-cm (4.3 lb-in)
Stranded 24 - 12 7 - 8 mm (0.28 - 0.31 inches) 5 kg-cm (4.3 lb-in)

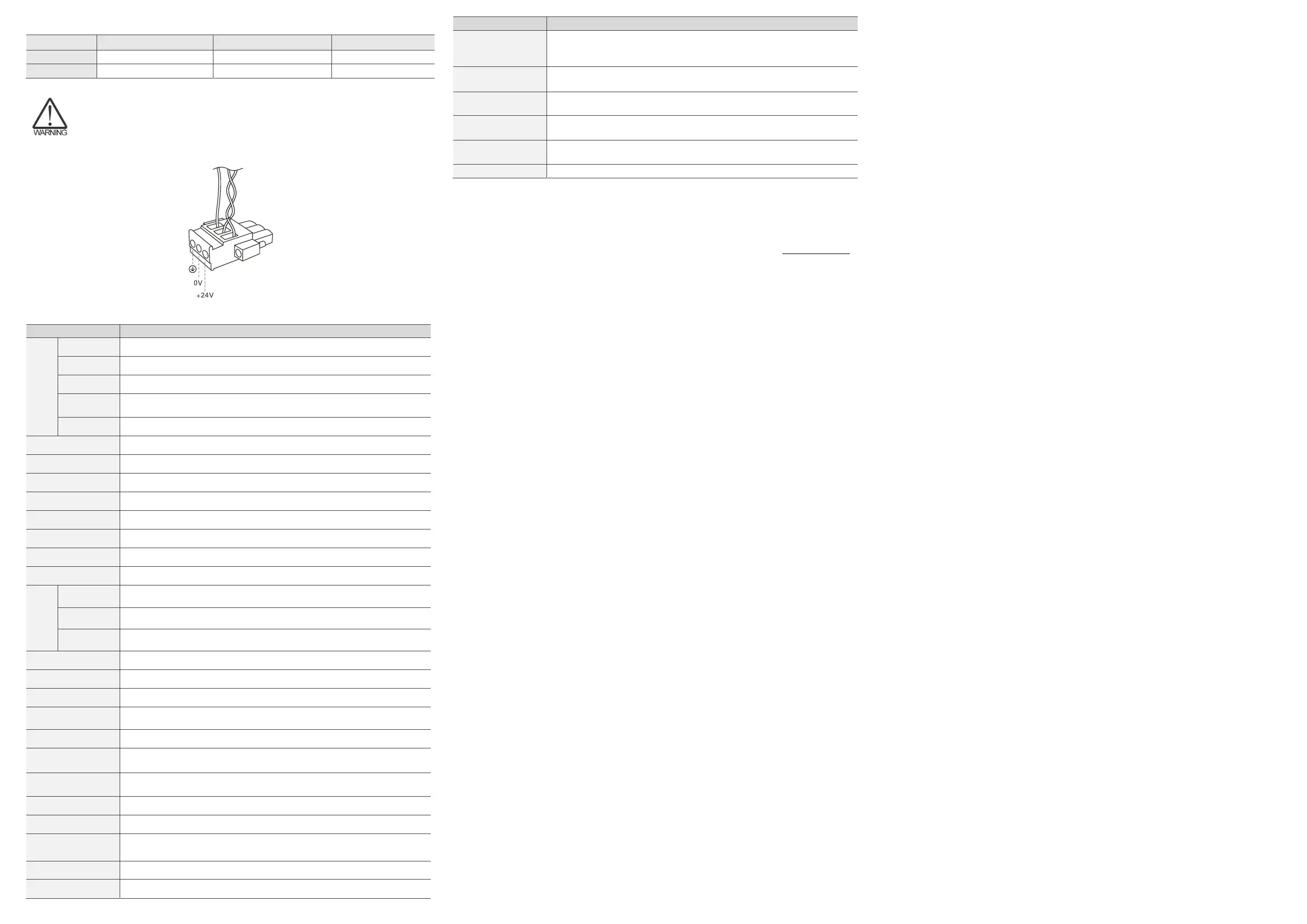

Refer to the following diagram for wiring the power connector.
The temperature rating of the cable must be greater than 75°C (167°F).
Reportez-vous au schéma suivant pour le câblage du connecteur d'alimentation. La
température nominale du câble doit être supérieure à 75°C (167°F).
(6) Hardware specifications
Model DOP-103SQ
Display
Panel type 4.3" TFT LCD (65,535 colors)
Resolution 480 x 272 pixels
Backlight LED backlight
(half-life at room temperature of 25°C (77°F) > 20,000 hours)
*1
Display range 95.04 x 53.856 mm
Brightness 400 cd/m² (Typ.)
CPU ARM Cortex-A8 (800 MHz)
Flash ROM 256 Mbytes
RAM 256 Mbytes
Touchscreen 4-wire resistive touchscreen > 1,000,000 operated
Buzzer Multi-tone frequency (2 - 4 kHz) / 80 dB
Network interface N/A
USB 1 USB slave Ver 2.0; 1 USB host Ver 2.0
SD N/A
Serial
communication
port
COM1 RS-232 (supports flow control) / RS-485
*2
COM2 RS-422 / RS-485
*2
COM3 N/A
Auxiliary function key N/A
Calendar Built-in
Cooling method Natural cooling
Approvals
CE / UL
(use shielded network cable and magnetic ring with the filter of 300 ohm / 100 MHz)
Panel waterproof level IP65 / NEMA4 / UL TYPE 4X (for indoor use only)
Operation voltage
*2
DC +24V (-15% to +15%) (use an isolated power supply)
Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation)
Dielectric strength 500 V
AC
for 1 minute (between DC24V terminal and FG terminal)
Power consumption
*2
5.67 W (Max.)
*3
Backup battery 3V lithium battery (CR2032) × 1
Backup battery life
About 3 years or more at room temperature of 25°C (77°F)
(subject to operating temperature and condition)
Operating temperature 0°C to 50°C (32°F to 122°F)
Storage temperature -20°C to +60°C (-4°F to +140°F)
Model DOP-103SQ
Operating environment
10% to 90% RH [0°C to 40°C (32°F to 104°F)]
10% to 55% RH [41°C to 50°C (105.8°F to 122°F)]
Pollution degree: 2
Vibration resistance
Conforms to IEC61131-2: continuous vibration 5 Hz - 8.3 Hz with amplitude
3.5 mm; 8.3 Hz - 150 Hz with amplitude 1G
Shock resistance
Conforms to IEC60068-2-27: 11 ms, 15 G Peak,
in X, Y, Z directions each for 6 times
Dimensions
(W) x (H) x (D) mm
129 x 103 x 37.8
Mounting dimensions
(W) x (H) mm
118.8 x 92.8
Weight Approx. 280 g
Note:
1. The half-life of the backlight is defined as the maximum luminance being reduced by 50% when the maximum drive current is supplied
to the HMI. The life of LED backlight specified here is estimated at room temperature of 25°C (77°F) with ambient humidity.
2. The withstand voltage of the isolated power circuit is 1500V peak for 1 minute.
3. The HMI power consumption is the power consumed when the HMI is not connecting with other peripheral devices. To ensure normal
operation of the HMI, the recommended capacity of the power supply is 1.5 to 2 times of the specified power consumption.
4. Isolated power supply is recommended.
5. To download the DOP-100 series programming software DOPSoft and the user manual, go to Delta's website at http://www.deltaww.com.
6. The DOP-100 series can be used with other industrial automation equipment. Read this sheet carefully and install the product
according to the instructions to avoid danger.
