Delta DVP04AD-E2 - Mode 2 Configuration; Mode 3 Configuration; Mode 4 Configuration; Mode 5 Configuration

- 7 -

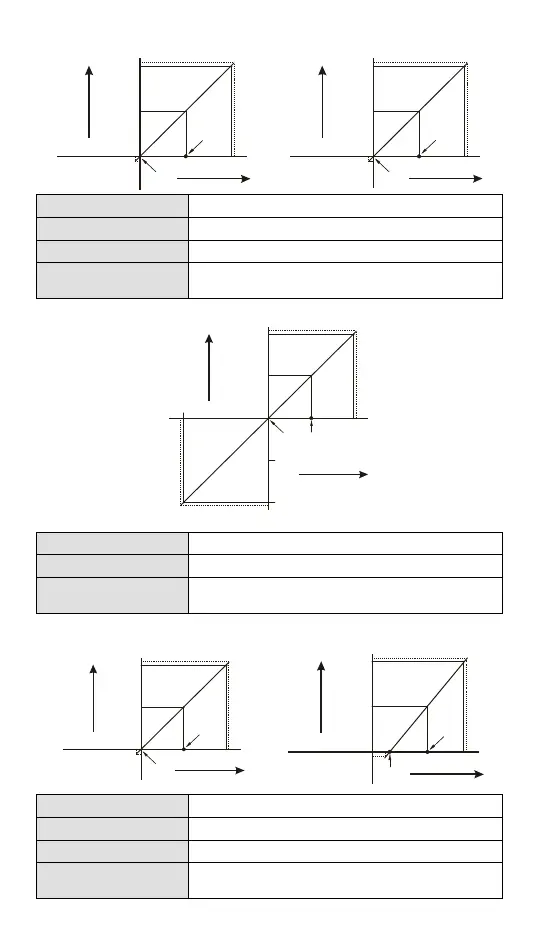

 Mode 2:  Mode 3:
Voltage input
+32000
+16000
10V
5V
0
Gain
Offset
Digital
output
+32384
-384
Voltage input
+32000
+16000
5V
2.5V
0
Gain
Offset
Digital
output
+32384
-384
Mode 2 of CR#2 ~ CR#5 0V ~ +10V, Gain = 5V (16,000), Offset = 0V (0)
Mode 3 of CR#2 ~ CR#5 0V ~ +5V, Gain = 2.5V (16,000), Offset = 0V (0)
Range of digital conversion
0 ~ +32,000
Max./Min. range of digital
conversion
-384 ~ +32,384
 Mode 4:
Current input
+32000
+16000
-16000
20mA
-32000
-20mA
10mA
0
Gain
Offset
Digital
output
+32384
-32384
Mode 4 of CR#2 ~ CR#5 -20mA ~ +20mA, Gain = 10mA (16,000), Offset = 0mA (0)
Range of digital conversion -32,000 ~ +32,000
Max./Min. range of digital
conversion
-32,384 ~ +32,384
 Mode 5:  Mode 6:
Current input
+32000
+16000
20mA
10mA
0
Gain
Offset
Digital
output
+32384
-384
Current input
+32000
+16000
20mA12mA
0
Gain
Offset
Digital
output
+32384
-384
4mA
Mode 5 of CR#2 ~ CR#5 0mA ~ +20mA, Gain = 10mA (16,000), Offset = 0mA (0)
Mode 6 of CR#2 ~ CR#5 +4mA ~ +20mA, Gain = 12mA (19,200), Offset = 4mA (6,400)
Range of digital conversion
0 ~ +32,000
Max./Min. range of digital
conversion
-384 ~ +32,384
