82667 Rev. B
Installation
3
5

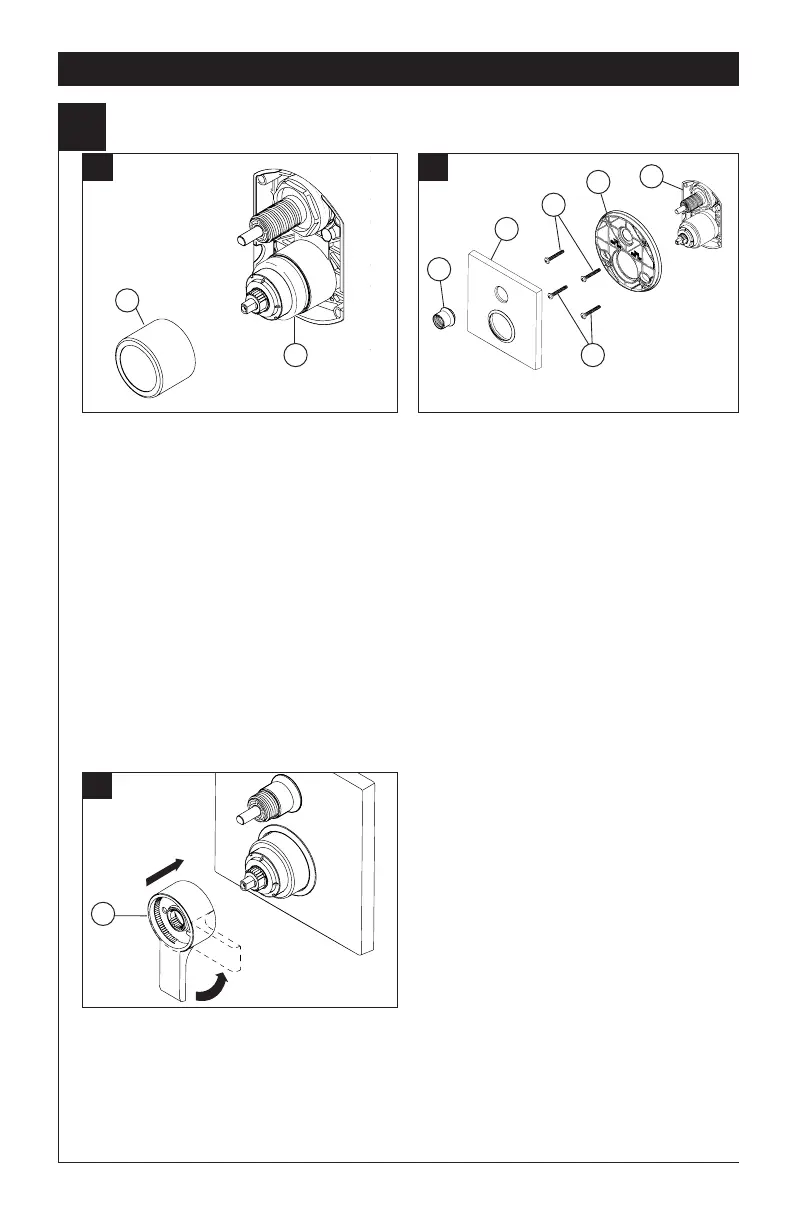

Trim Installation
Trim Sleeve Installation
Slide trim sleeve (1) over the bonnet (2), cartridge
and rough-in body.
Ensure sleeve is properly positioned over the front
of cartridge.
Escutcheon Installation
For nished wall thickness up to 1 1/8". Secure
the backplate (1) to the rough-in body (2) using 4
screws (3) provided.
Note: Be sure backplate is oriented front side
forward and markings are visible.
Slide escutcheon (4) over diverter cartridge, thread
trim nut (5) provided onto diverter sleeve.
Note: For thick wall installations, order
installation kit RP90543 to support finished wall
thickness up to 2 1/8".
On rough or uneven surfaces it is necessary to
apply caulk around the backplate (1) to supplement
the seal. Do not caulk the drip notch in the bottom
of the backplate (1). Do not caulk the escutcheon
(4).
1
2
A. B.
1
2
5
4
C.
1
Install volume control handle (1) with lever
pointing down, then turn to the on position.
DO NOT SECURE WITH SCREW.
3
3
To Next Page
