Warning! To reduce the risk of fire, electric shock or personal injury, this secondary surge
arrestor shall be installed in conjunction with a disconnecting means which shall consist of a
manually operable Listed circuit breaker that has an interrupting rating sufficient for the
nominal circuit voltage and the current that is available at the line terminals of the secondary
surge arrestor. Connect black wires to lines load-side of fuse/breaker. Connect white wire to
neutral/ground.lines
Common Installation modes forTVSS, Arrestors, Surge Capacitors and SPD.
Check with your electrical inspector for local preference.

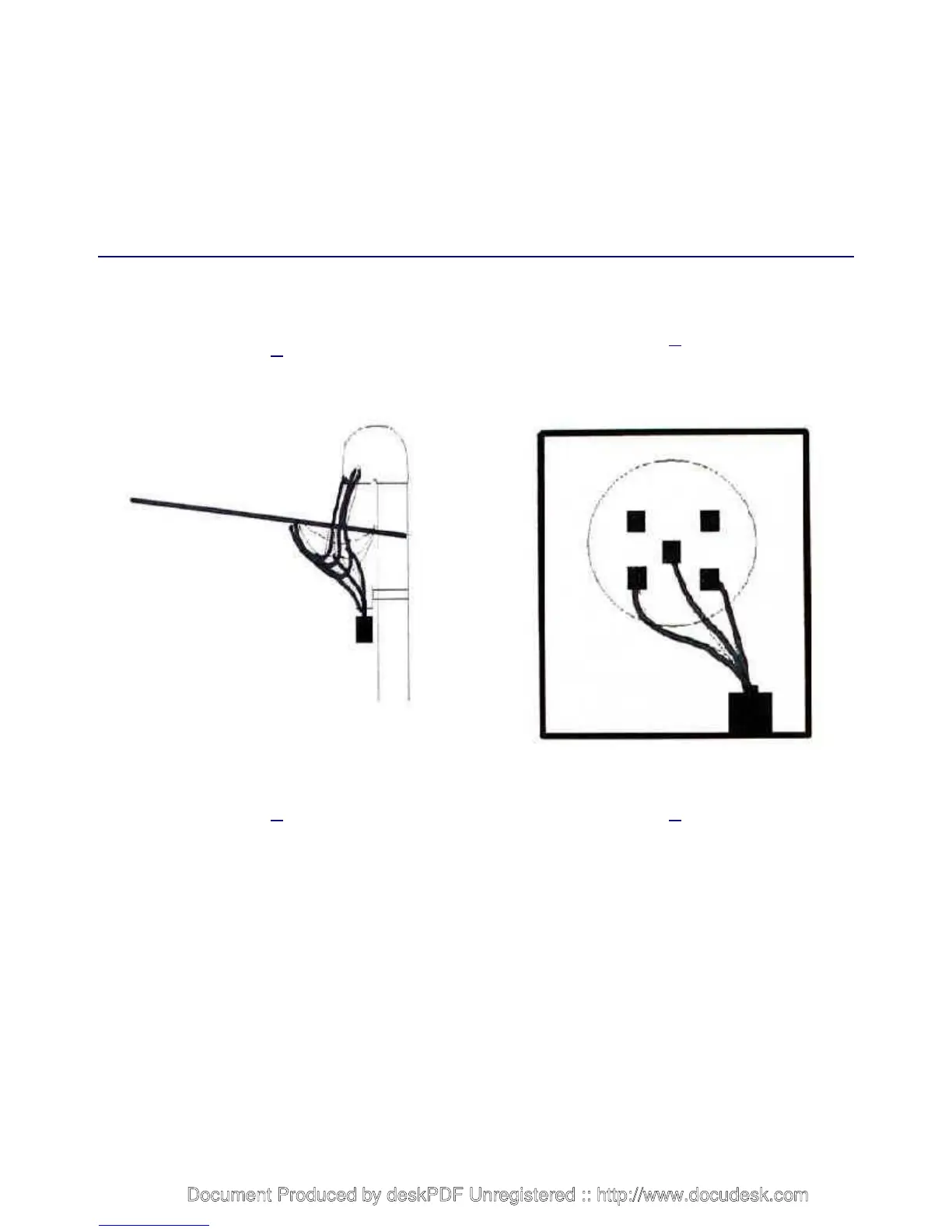

1
Weather head secure with ell bracket or strap.
2
Meter box white to neutral secure with ell
bracket or strap.
3
White to neutral secure with locknut.
4
Main box secure with ell bracket or strap.
