Delta NC311A-MS-A

English-7

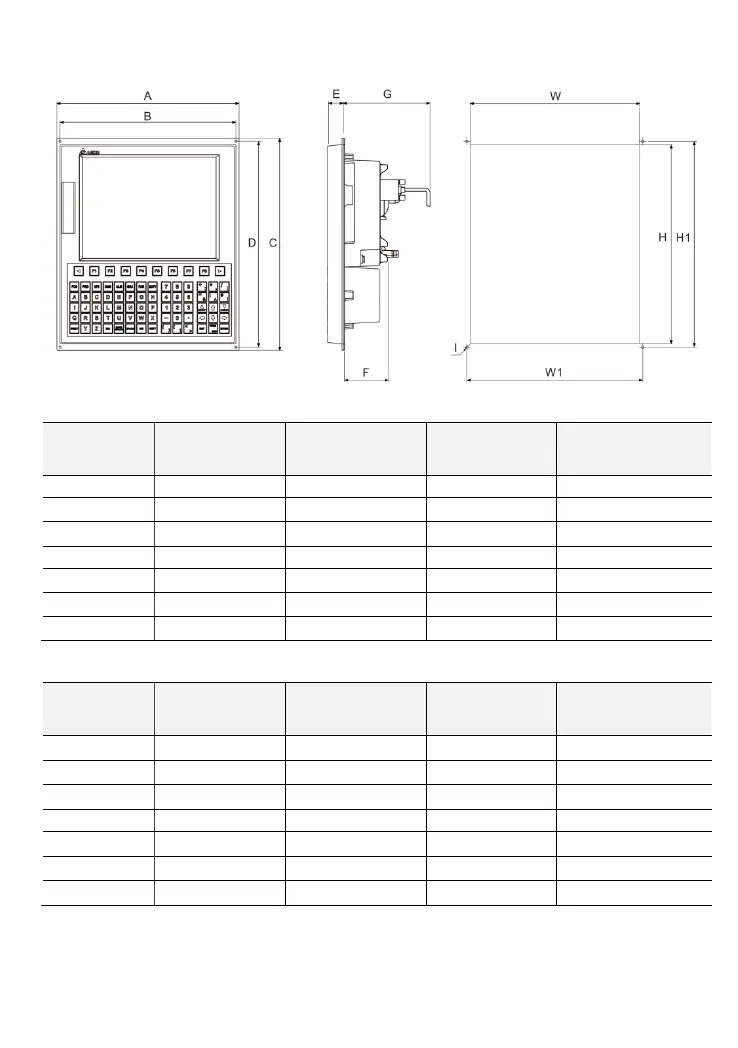

NC311A-MS-A_ size marking
Appearance Dimensions
Model / Size
NC300A-MI-A_
/NC200A-MI-A_
NC300A-MS-A_ NC311A-MS-A_ NC310A-MS-A_
A 400 mm 400 mm 290 mm 435 mm
B 390 mm 390 mm 280 mm __
C 309 mm 200 mm 335.5 mm 221 mm
D 299 mm 190 mm 325.5 mm __
E 25 mm 25 mm 23 mm 23 mm
F 70 mm 70 mm 70 mm 70 mm
G 130 mm (min) 130 mm (min) 130 mm (min) 130 mm (min)
Cut-out Dimensions
Model / Size
NC300A-MI-A_
/NC200A-MI-A_
NC300A-MS-A_ NC311A-MS-A_ NC310A-MS-A_
H
291±0.3 mm 182.5±0.3 mm 315.5±0.3 mm 191±0.3 mm
H1 299 mm 190 mm 325.5 mm 210.4 mm
W
378±0.3 mm 378±0.3 mm 270±0.3 mm 423±0.3 mm
W1 130 mm 130 mm 280 mm 141.47 mm
W2 130 mm 130 mm __ 141.47 mm
W3 130 mm 130 mm __ 141.47 mm
I
Φ4 mm Φ4 mm Φ4 mm Φ4.5 mm
