Chapter 1 Introduction
VFD-EL-W
1-12

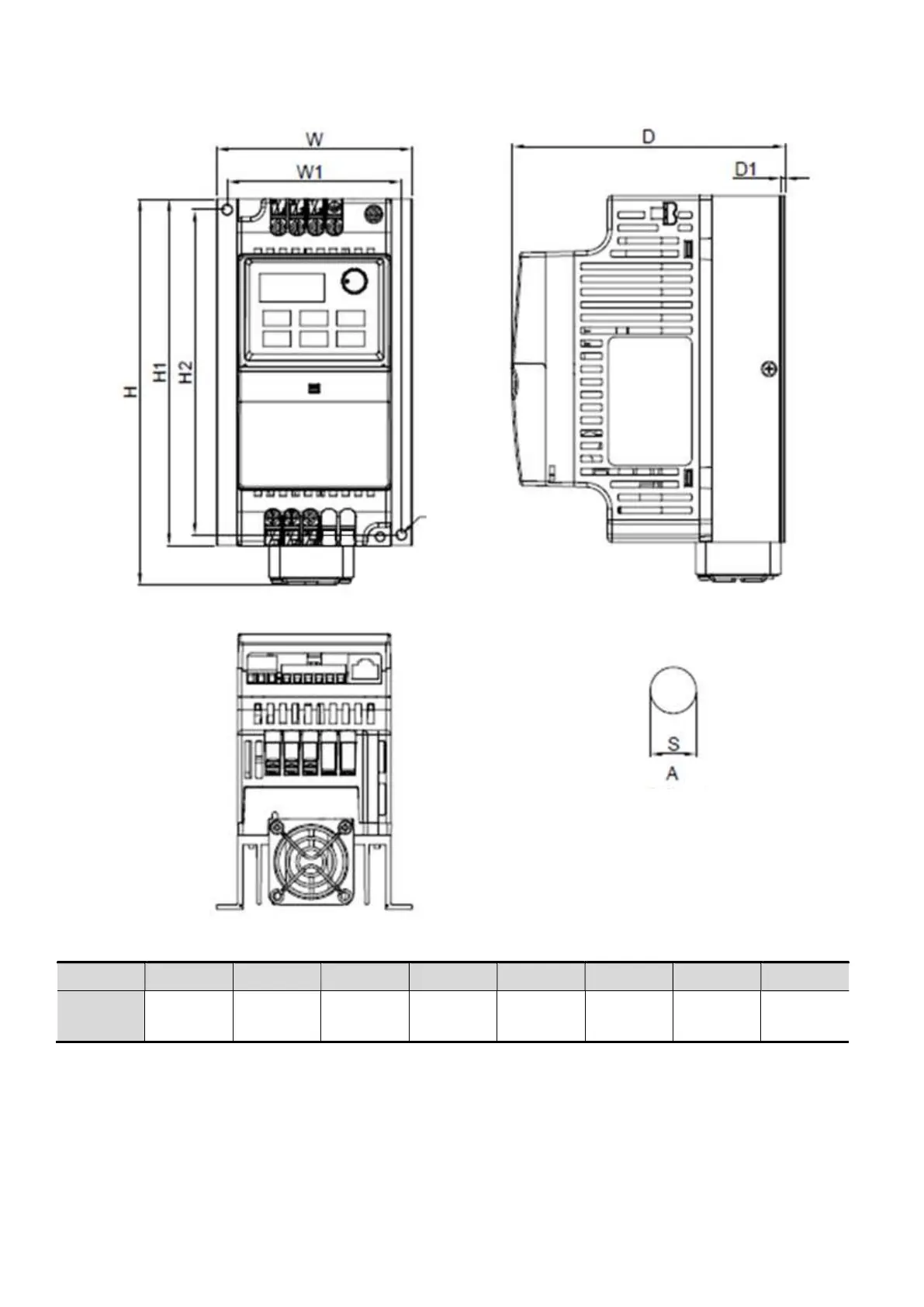

Frame A2
VFD015EL43W(-1)
See A
(mounting hole)
Unit: mm [inch]
Frame W W1 H H1 H2 D D1 S1
A2
92.0
[3.62]
82.0
[3.23]
180.5
[7.11]
162.0
[6.38]
152
[5.98]
128.7
[5.07]
2.0
[0.08]
5.4
[0.21]
