Delta VFD004EL21W-1 - 3.1 Digital Keypad Overview

Chapter 3 Keypad and Start-up  VFD-EL-W
3-2
3.1 Description of the Digital Keypad

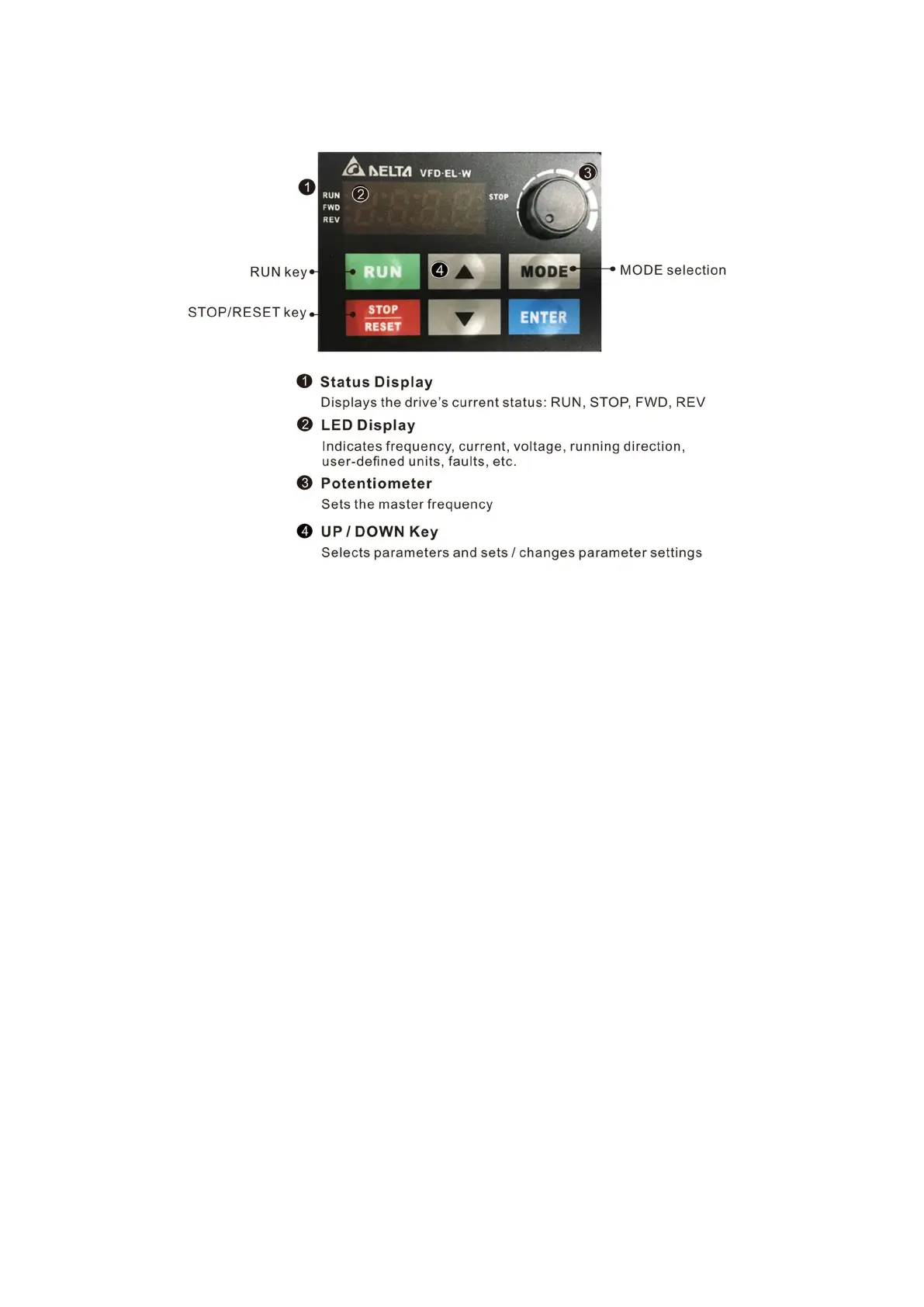

VFD-EL-W series operates the running and displays the functions by the digital keypad.
There are four LEDs on the keypad

STOP
: Lights when the drive stops.

RUN
: Lights when the motor is running.

FWD
: Lights when the motor is running forward.

REV
: Lights when the motor is running in reverse.
