Chapter 8 Option CardsCP2000
8-2
Please select applicable option cards for your drive or contact local distributor for suggestion.
To prevent drive damage during installation, please remove the digital keypad and the cover before wiring.
Refer to the following instruction.
8-1 Option Card Installation

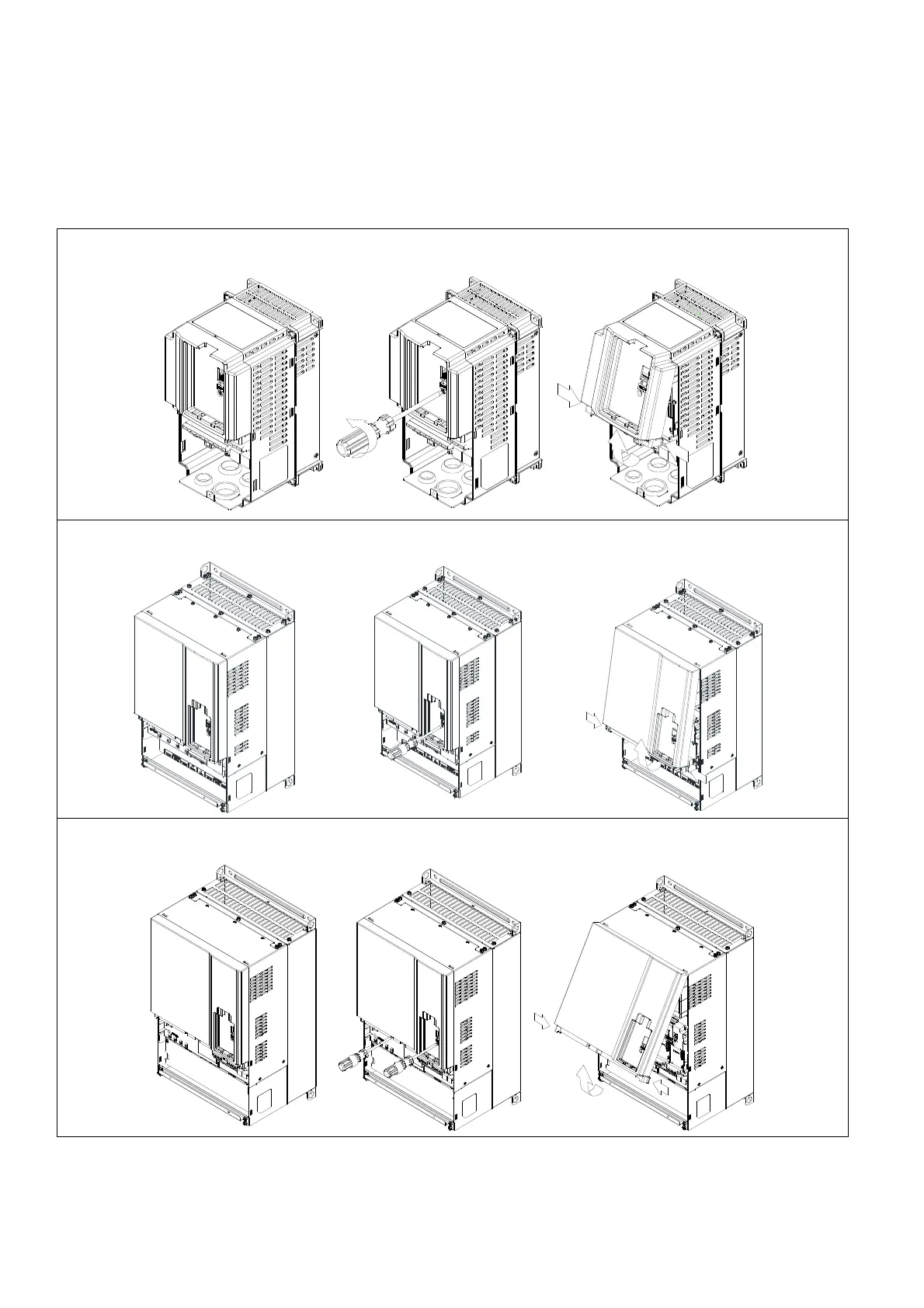

8-1-1 Remove the top cover
Frame A–C
Screw Torque: 8–10 kg-cm / [6.9–8.7 lb-in.] / [0.8–1.0 Nm]
Frame D0
Screw Torque: 8–10 kg-cm / [6.9–8.7 lb-in.] / [0.8–1.0 Nm]
Frame D
Screw Torque: 8–10 kg-cm / [6.9–8.7 lb-in.] / [0.8–1.0 Nm]
To Next Page
