Chapter 7 Optional AccessoriesCP2000
7-112
『MKC-BFM』Installation

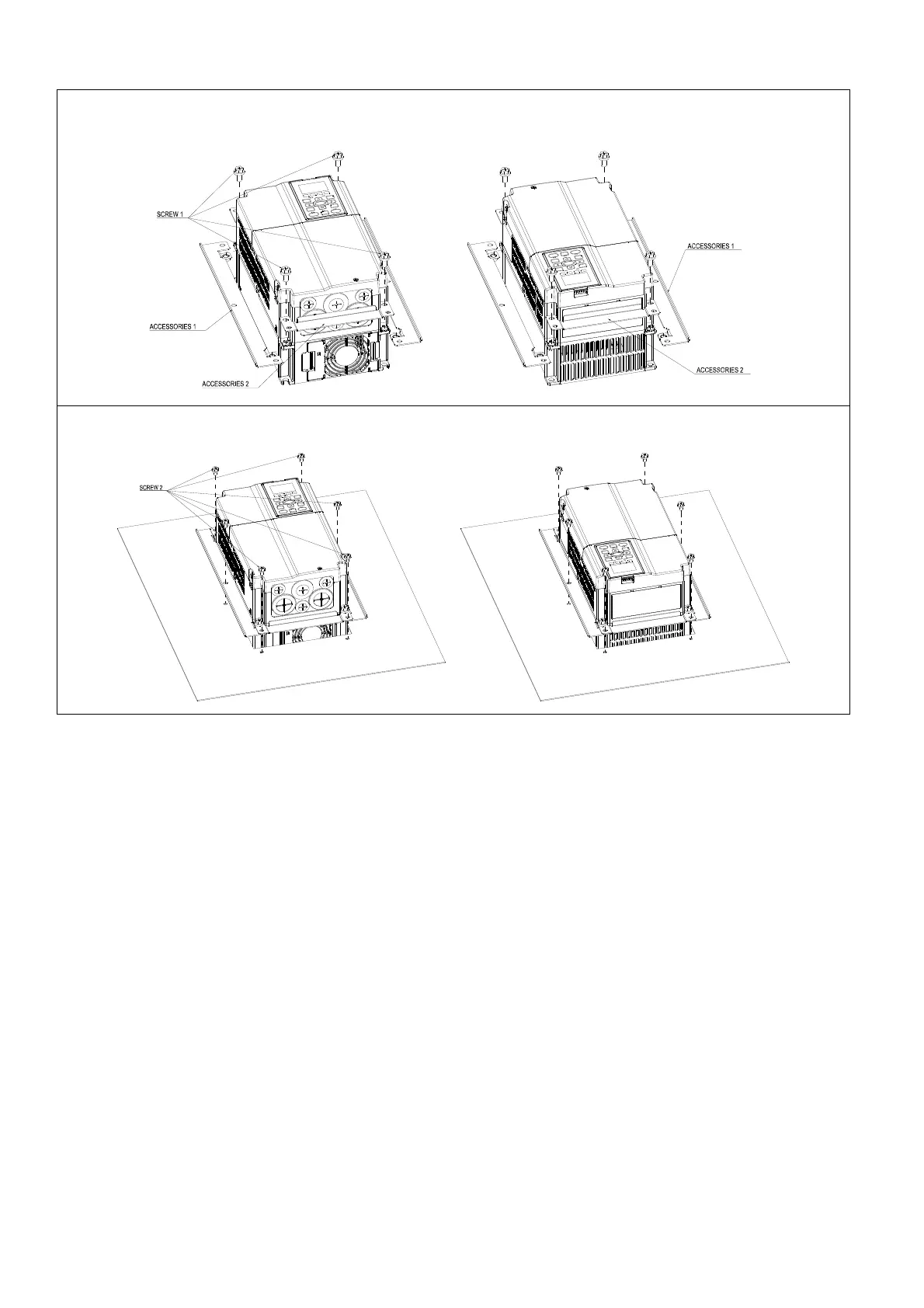

1. Install accessory 1& 2 by fastening 4 of the screw 1 (M8). Screw torque: 40–45 kg-cm / [34.7–39.0 Ib-in.]
[3.9–4.4 Nm] (As shown in the following figure)
2. Plate installation, place 6 of the screw 2 (M6) through accessory 1&2 and the plate, then fasten the screws.
Screw torque: 25–30 kg-cm / [21.7–26 Ib-in.] / [2.5–2.9 Nm] (As shown in the following figure)
