Chapter 12 Description of Parameter SettingsCP2000
12.1-09-12
Example:
ASCII mode:
RTU mode:
STX ‘:’ Address 01H
Address
‘0’ Function 86H
‘1’ Exception code 02H
Function
‘8’ CRC Check Low C3H
‘6’ CRC Check High A1H
Exception code
‘0’
‘2’
LRC Check
‘7’
‘7’
END
CR
LF
The explanation of exception codes:
Exception code Explanation
1 Function code is not supported or unrecognized.
2 Address is not supported or unrecognized.
3 Data is not correct or unrecognized.
4 Fail to execute this function code
10 Transformation for over-time duration
Communication Response Delay Time
Default: 2.0
Settings 0.0–200.0 ms

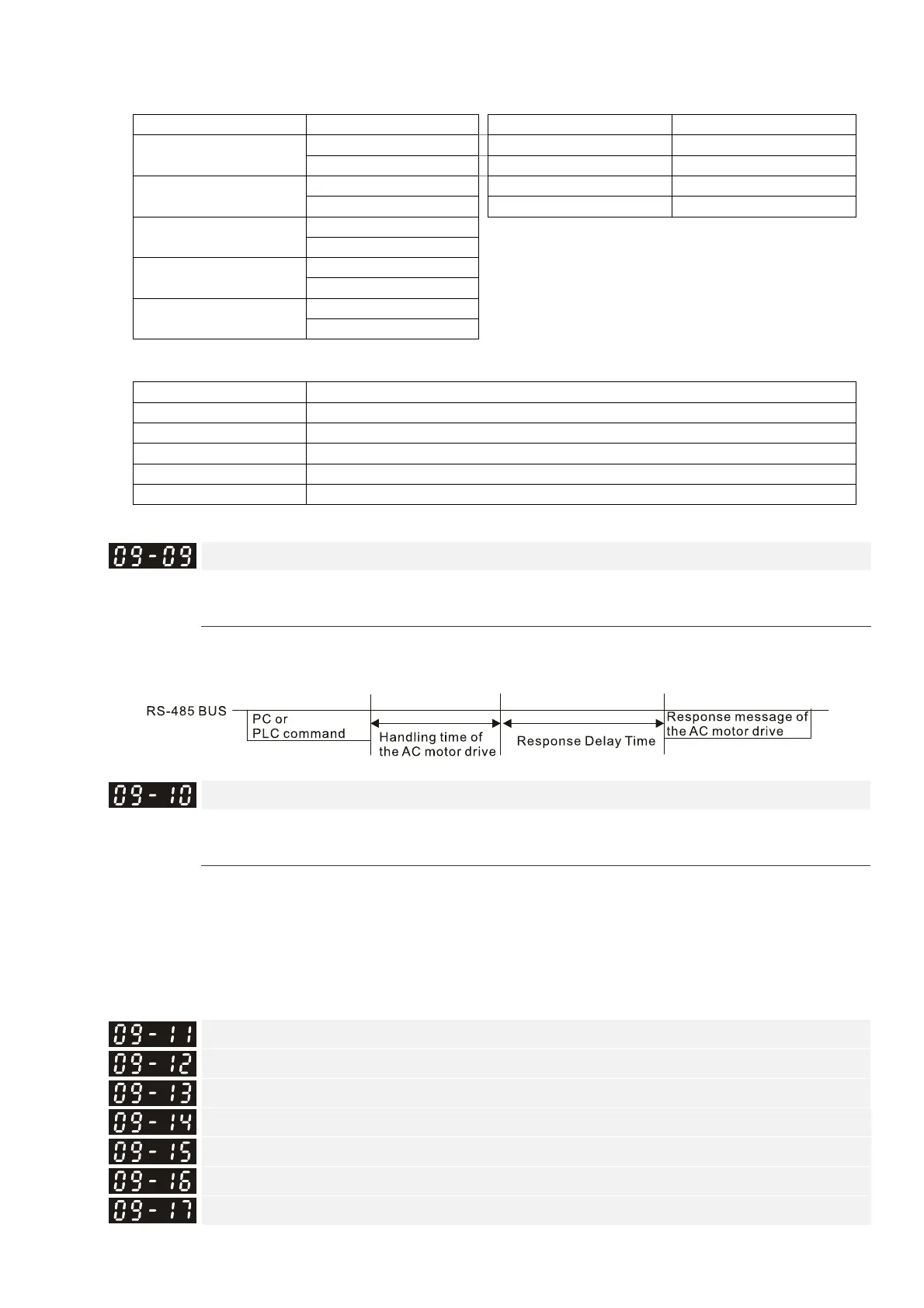

Sets the response delay time after the AC motor drive receives a communication command as
shown in the following.
Communication Main Frequency
Default: 60.00
Settings 0.00–599.00 Hz
When you set Pr.00-20 to 1 (RS-485 serial communication), the AC motor drive saves the last
frequency command into Pr.09-10 when there is abnormal power off or momentary power loss.
After the drive reboots when power is restored, it checks the frequency in Pr.09-10 if no new
frequency command is input. When a frequency command of RS-485 changes (the frequency
command source must be set as Modbus), this parameter also changes.
Block Transfer 1
Block Transfer 2
Block Transfer 3
Block Transfer 4
Block Transfer 5
Block Transfer 6
Block Transfer 7
