VFD-B Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
3-12

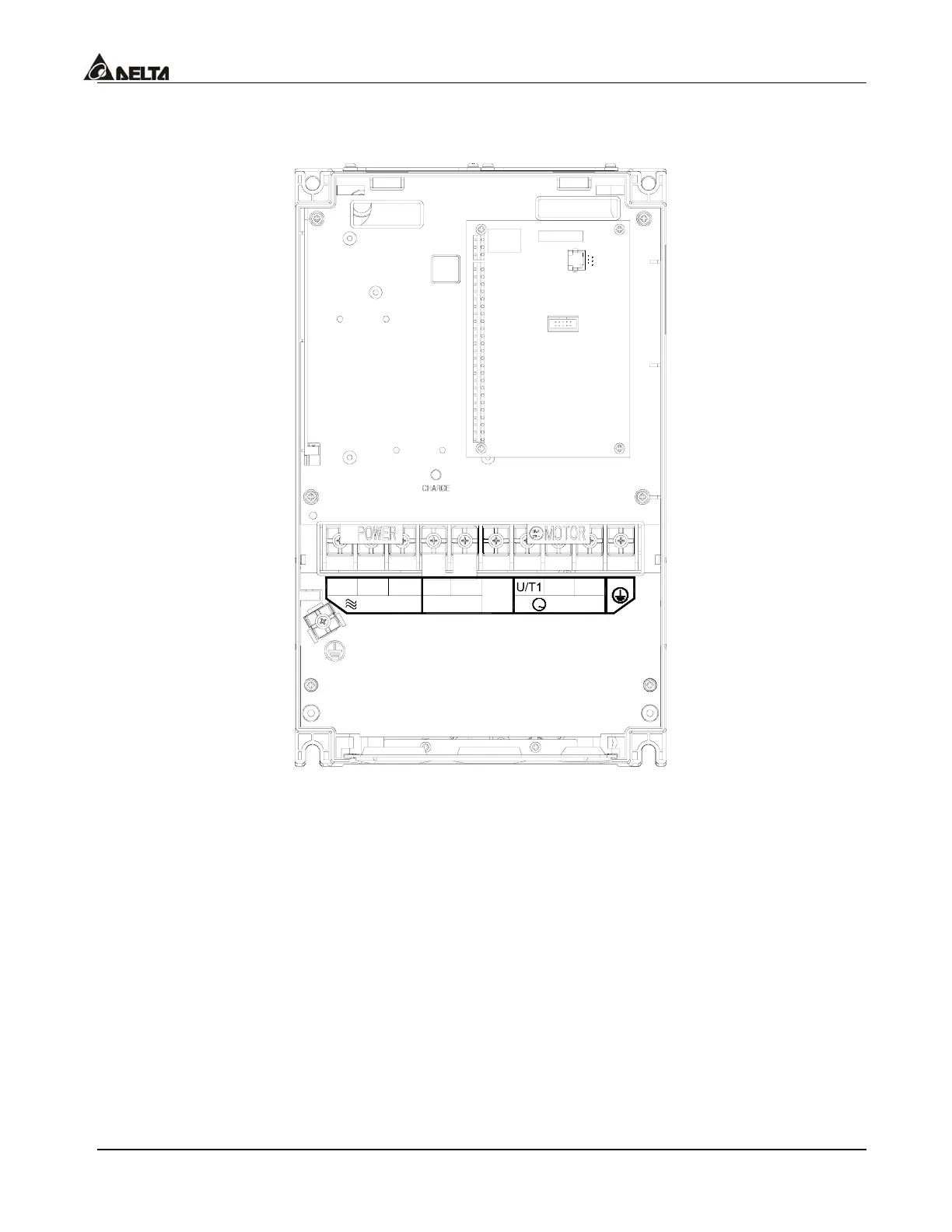

20 HP to 30 HP (VFD150B23A, VFD150B43A, VFD185B23A, VFD185B43A,
VFD220B23A, VFD220B43A)
3
IM
POWER
S/L2
R/L1
- ( ) ( )
+ DC DC
T/L3
+1
-
+2
MOTOR
W/T3V/T2
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG
Power Terminal
Torque: 30Kgf-cm (26 in-lbf)
Wire: 2-8 AWG
Wire Type: Stranded Copper only, 75°
C
NOTE: If wiring of the terminal utilizes the wire with a 1AWG-diameter, it is thus necessary
to use the Recognized Ring Terminal to conduct a proper wiring.
To Next Page
