Chapter 2 Installation and Wiring_VFD-B Series
Revision 10/2005, BE13, SW V4.08 2-29

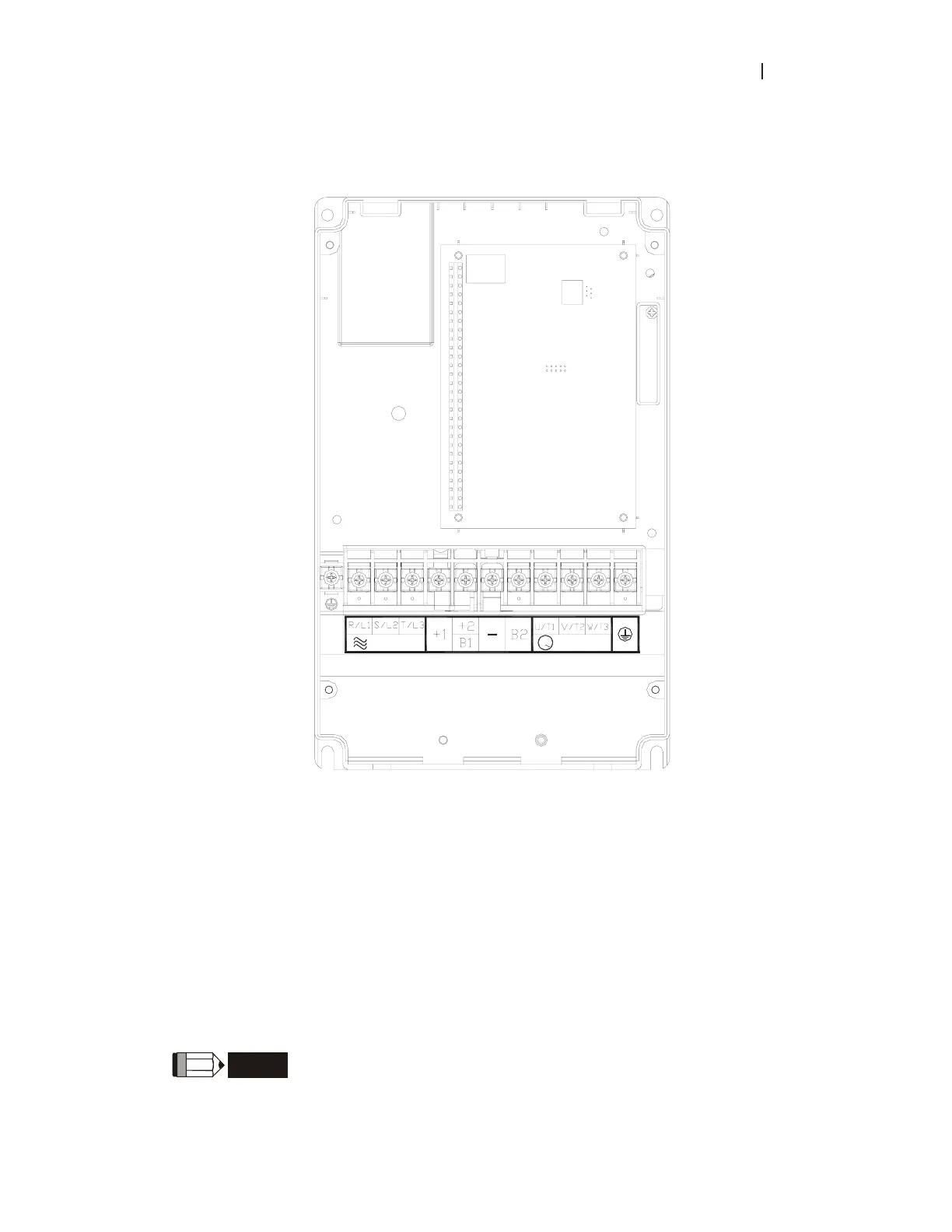

7.5 HP to 15 HP (5.5kW to 11kW)
VFD055B23A/43A/53A, VFD075B23A/43A/53A, VFD110B23A/43A/53A
POWER
IM
MOTOR3
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2mm
2
)
Power Terminal
Torque: 30Kgf-cm (26 in-lbf)
Wire: 8-12 AWG (8.4-3.3mm
2
)
Wire Type: Stranded Copper only, 75qC
NOTE
To connect 6 AWG (13.3 mm
2
) wires, use Recognized Ring Terminals
To Next Page
