Delta VFD110CP43B-21 User Manual

Chapter 7 Optional AccessoriesCP2000
7-27
Input AC reactor
Delta part #
A B C D1*D2 H G1 G2 PE D
DR003A0810 100 125 65 6*9 43 60 40 M4
DR004A0607 100 125 65 6*9 43 60 40 M4
DR006A0405 130 15 95 6*12 60 80.5 60 M4
DR009A0270 160 160 105 6*12 75 107 75 M4
DR010A0231 160 160 115 6*12 90 107 75 M4
DR012A0202 160 160 115 6*12 90 107 75 M4
DR018A0117 160 160 115 6*12 90 107 75 M4
Tightening torque: 6.1–8.2 kg-cm /
[5.3–7.1 lb-in] / [0.6–0.8Nm]

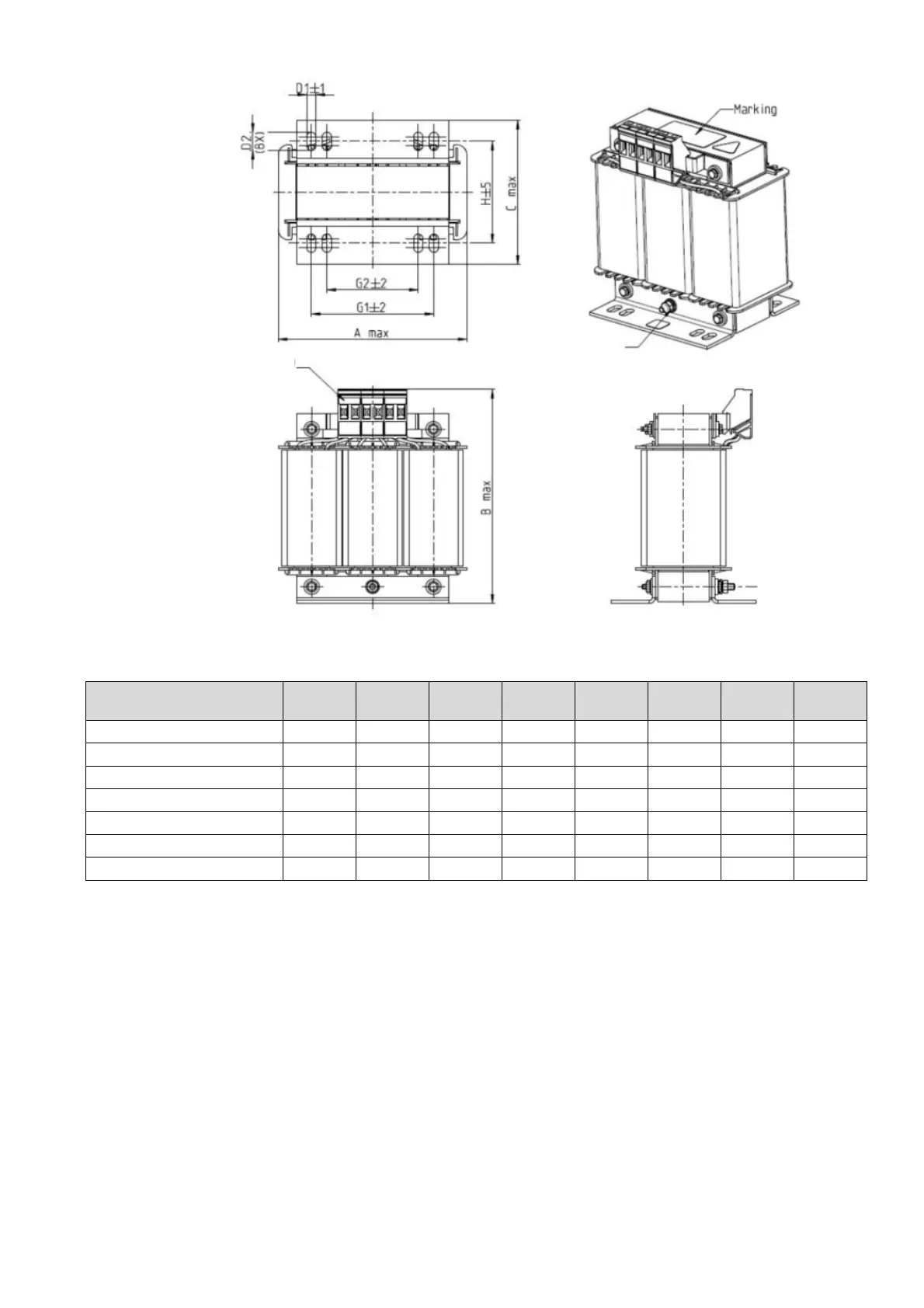

Figure 7-18
Table 7-34
Unit: mm
PE MD
Tightening torque: F Nm
