Chapter 7 Optional AccessoriesCP2000
7-45

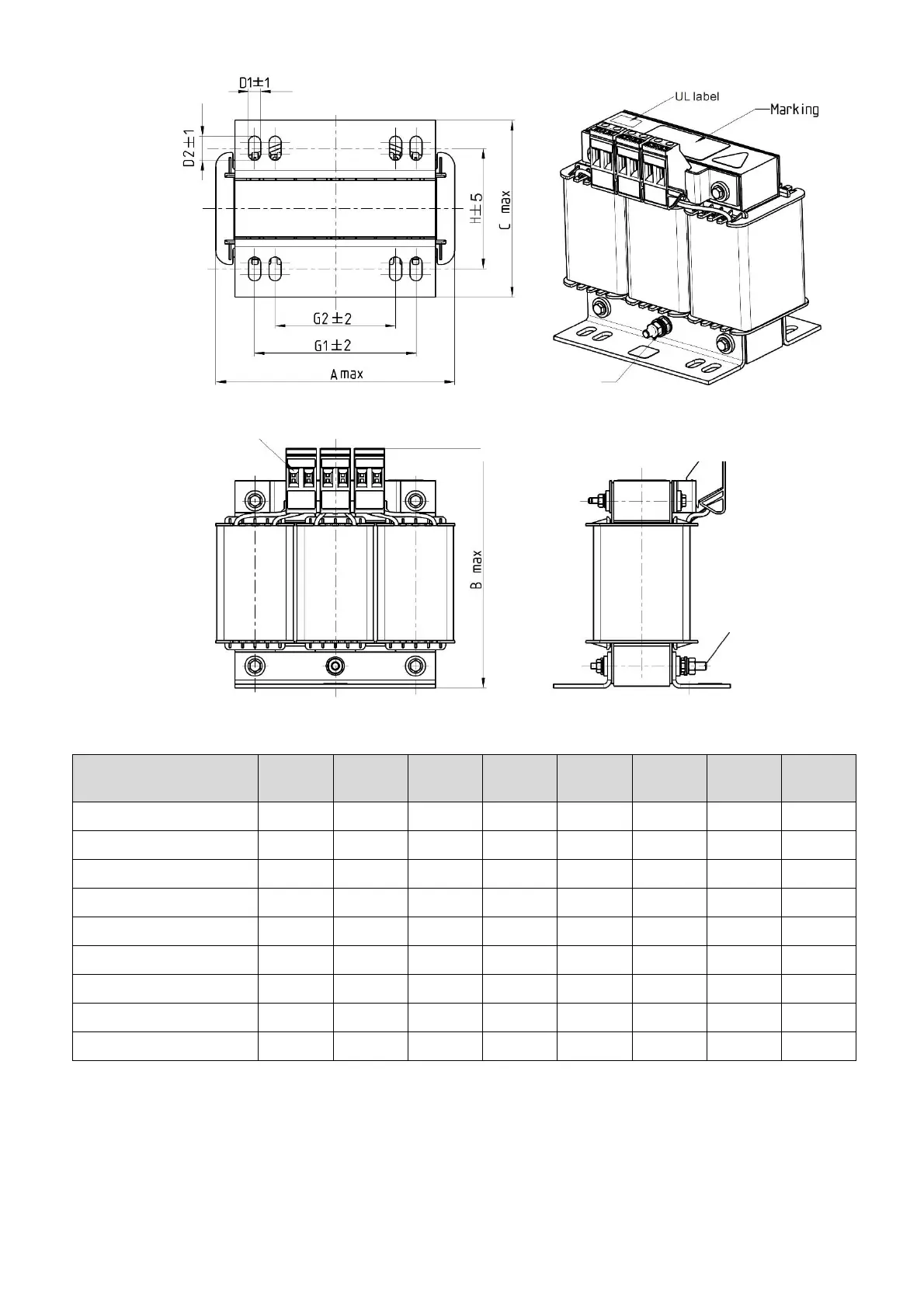

Output AC reactor Delta
part #
A B C D1*D2 H G1 G2 PE D
DR003L0810 96 115 65 6*9 42 60 40 M4
DR004L0607 120 135 95 6*12 60 80.5 60 M4
DR006L0405 120 135 95 6*12 60 80.5 60 M4
DR009L0270 150 160 100 6*12 74 107 75 M4
DR010L0231 150 160 115 6*12 88 107 75 M4
DR012L0202 150 160 115 6*12 88 107 75 M4
DR018L0117 150 160 115 6*12 88 107 75 M4
DR024LP881 150 160 115 6*12 88 107 75 M4
DR032LP660 180 190 145 6*12 114 122 85 M6
Torque: 6.1–8.2 kg-cm / [5.3–7.1 lb-in] / [0.6–0.8 Nm]
Torque: 10.2–12.3 kg-cm / [8.9–10.6 lb-in] /
[1.0–1.2 Nm]
PE screw
Screw length must
not interfere with the
mounting holes
Unit: mm
Figure 7-31
Table 7-54
